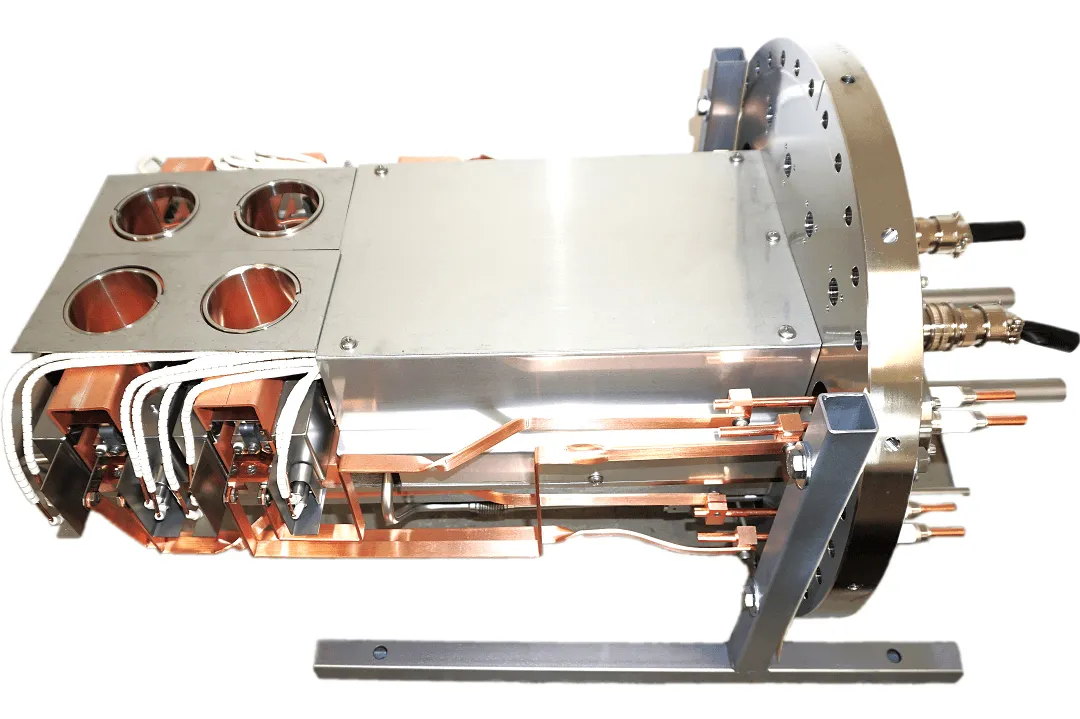

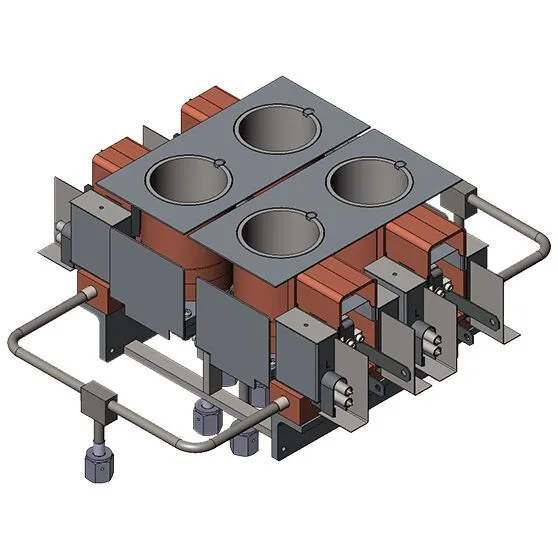

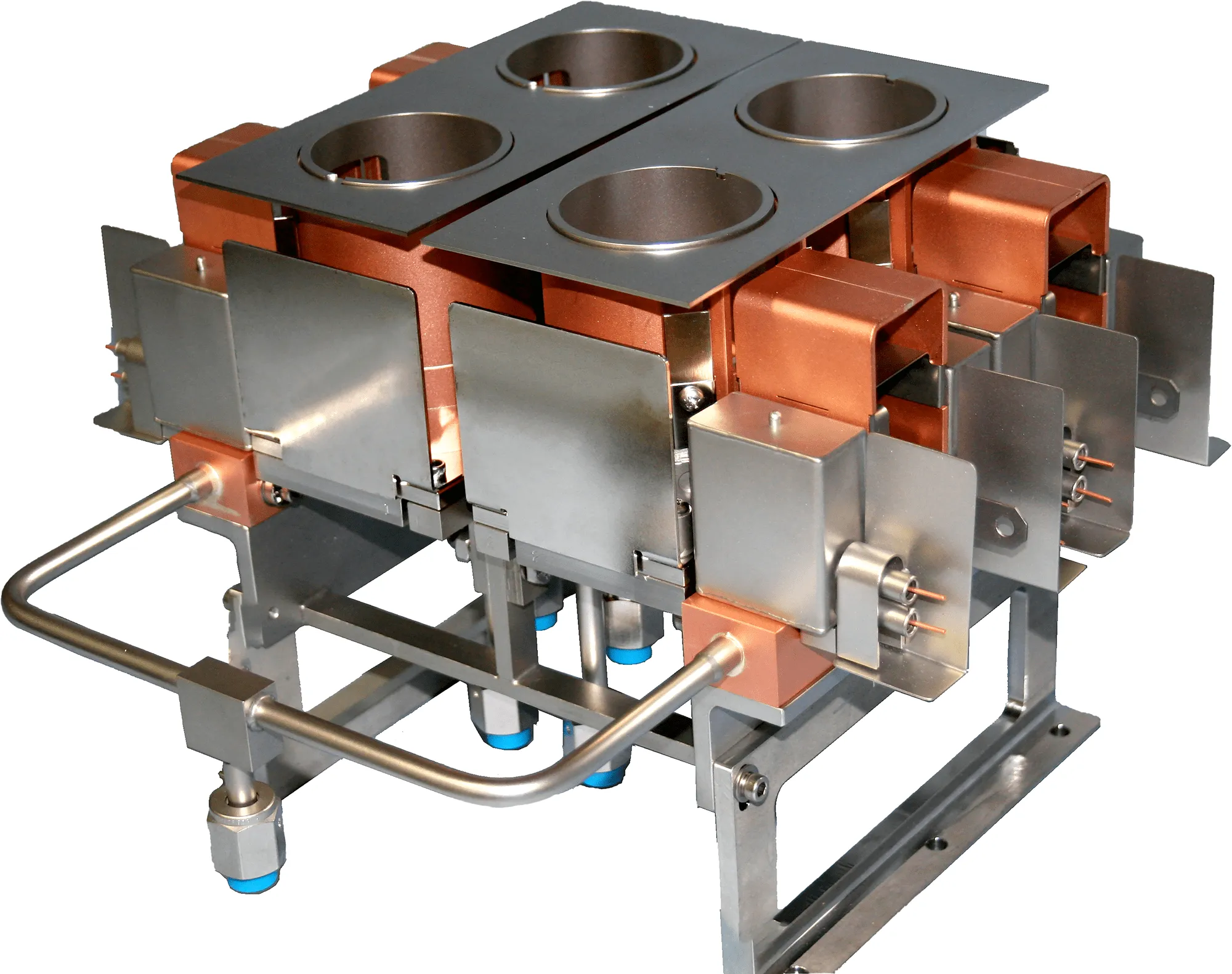

The Hydra™ Static series provides complex co-deposition process and co-evaporation of four or more different materials by efficient utilization of space. The unique modular magnetic design produces a more efficient electron beam. The Hyper-Unimelt 200 Hz sweep eliminates tunneling and source material eruptions. Plug-in emitter assemblies and sweep coil assemblies make the sources easier to service.
Easy filament alignment, more efficient electron collimation, minimal filament distortion and elimination of electron trials. Perfect for co-evaporation!
Patents: 4,835,789; 4,891,291; 4,947,404
· Operate six (6) different materials simultaneously (additional crucible designs available upon request)
· All metal-sealed, fully UHV compatible, measured base pressure: 2×10-11 Torr.
· Hydra™ eliminates adjacent source interaction
· Patented magnetic design allows close source proximity for uniform coating and material interaction
· Each crucible source is independently water cooled to prevent steam buildup
· Each source crucible has separate sweep coils, insuring the independent operation integrity of each source, eliminating cross talk inference from adjacent sources
· Removable crucible chimney design for easy cleaning of deposition buildup
· H2O cooled emitter baseplate and crucible
· Available in 10kW or 15kW
· Crucible volume sizes: 10cc, 15cc, 40cc, (custom sizes available by request)
· 270° beam deflection, filament enclosure isolates any particulate exposure
· Dynamic crucible design available
· Easy emitter assembly removal design
· Thermionics’ Hyper-Unimelt Sweep design (optimum control on low or high rates)

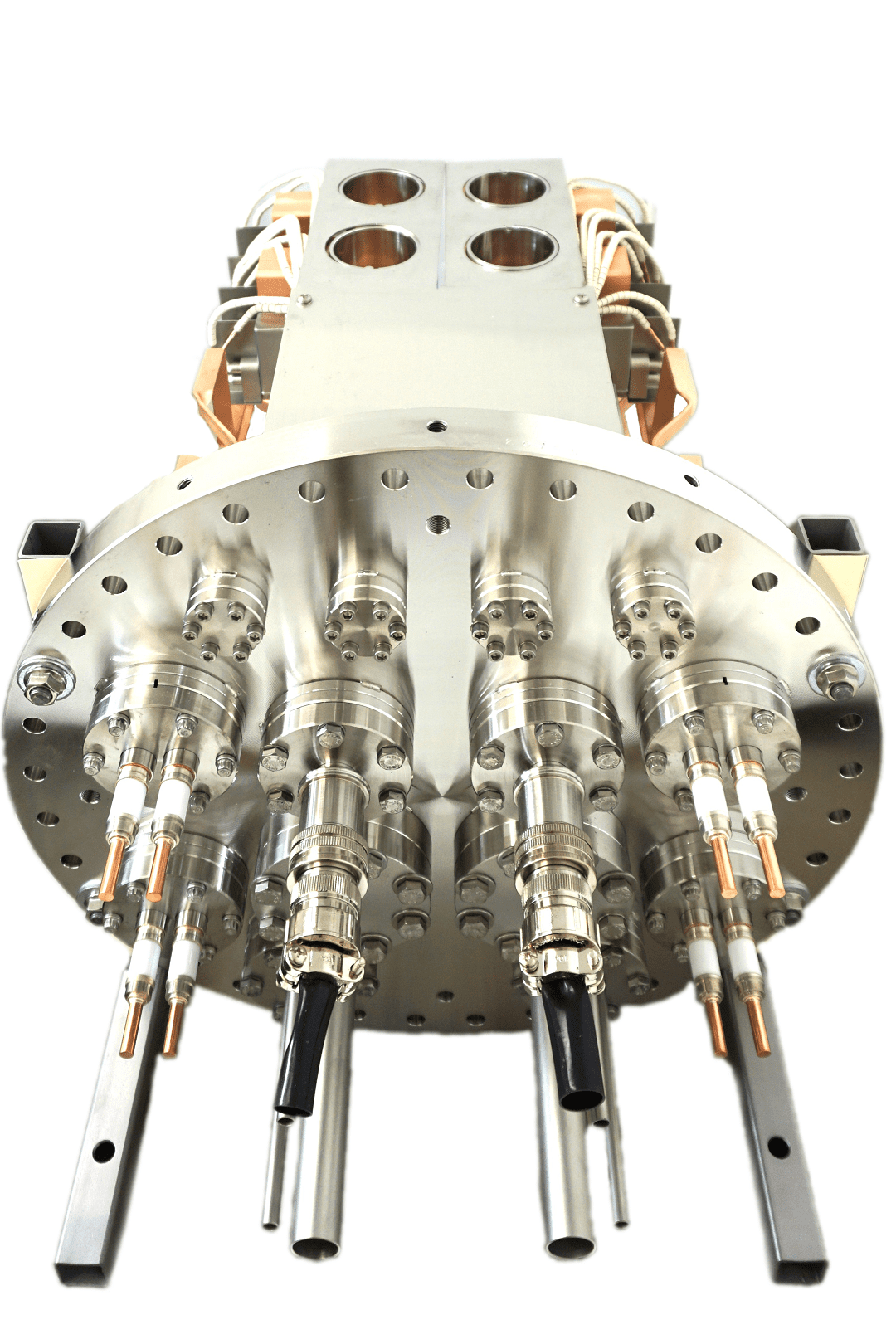

· Horizontal and vertical source flange mount designs available
• Elimination of beam curl
• UHV rated sweep coils included with source (200 Hz)
• Elimination of pole pieces
• Easy filament alignment
• More efficient electron collimation
• Minimal filament distortion
• Elimination of electron tails
• Fully enclosed emitter assembly prevents particulate
buildup
• Each source is independent water cooled
• Designed to eliminate cross talk interference
