BFV-ISO80

Butterfly Valve

Butterfly valves offer quick, quarter-turn operation for positive shut-off, moving from fully open to fully closed. They function effectively for both shut-off and throttling applications. All components exposed to vacuum are made of stainless steel with an aluminum knob.

Add to quote
Contact Sales

Downloads

Drawing

BFV-ISO80 - DRAWING

STEP File

BFV-ISO180 - STEP

FLYERS

SPEC - Standard Manual Butterfly Valve (Handle)

SPEC-Throttling-Butterfly-Valve-Motorized-v2.pdf

MANUAL

Throttling Butterfly Valve Manual

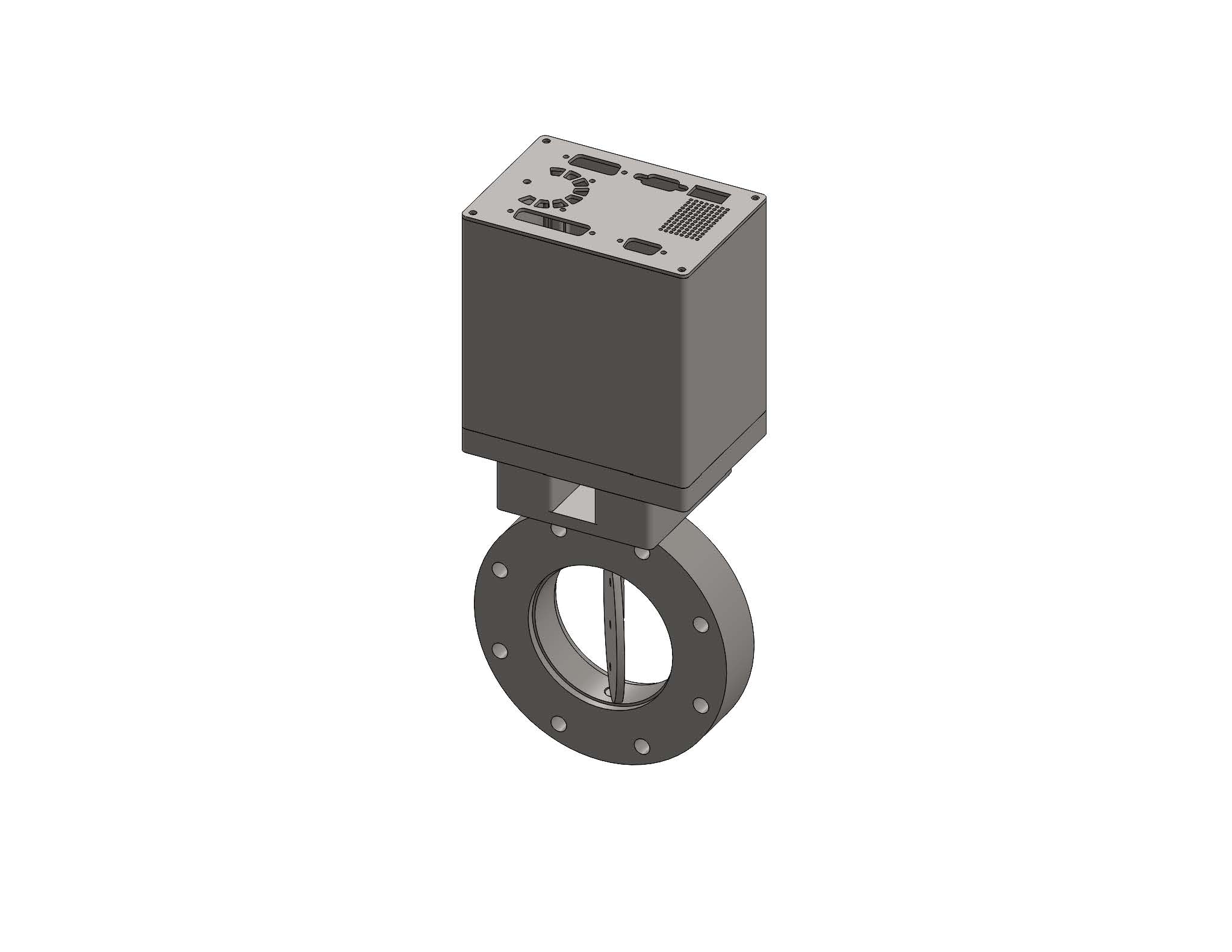

BFV-ISO80



SPECIFICATIONS:
*MOTORIZED
*SST CONSTRUCTION
*RS232 COMMUNICATION
*TWO (2) SENSORS, OPEN AND CLOSED
*VACUUM RANGE: 1 x 10-8 MBAR TO 1.2 BAR
*CLOSING/OPENING TIME: 0.3S
*LEAK TEST: 1 x 10-9 MBAR L/S
*LIFE: 2 MILLION (UNHEATED AND UNDER CLEAN CONDITIONS)
*SEAL: VITON O-RING STANDARD (KALREZ AVAILABLE)
*VITON O-RING STANDARD, SHAFT
*LOW PARTICLE GENERATION
*ANY MOUNTING POSITION
*OPERATING TEMPERATURE: +10 C TO +150 C
*CLEANED TO UHV STANDARDS BY THERMIONICS METAL PROCESSING INC. (TMPI)
