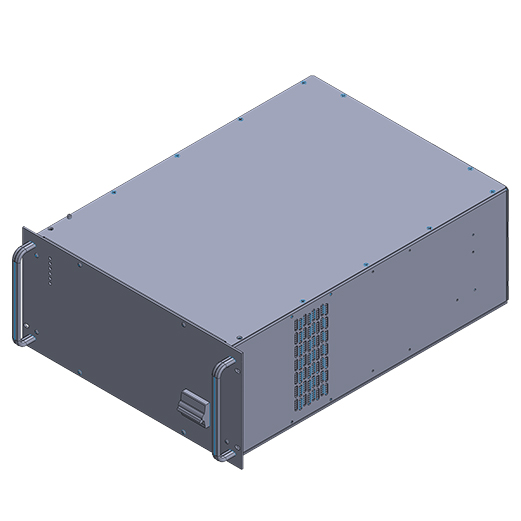

12 kW Power Supply

Add to quote
Contact Sales

Downloads

MANUAL

SVA_Series_Power_Supply_10kW_And_12kW_Electron_Beam_Gun_2023_MANUA Custom Download Icon

DRAWING

SVA-12_Solid_State_12kW_Power_Supply_Electron_Beam_Gun_Outline_2021_DRAWING Custom Download Icon

STEP-FILES

SVA-12 12kW Power Supply Electron Beam Gun 2021 STEP Custom Download Icon

Ground Setup

Ground Setup Document Custom Download Icon

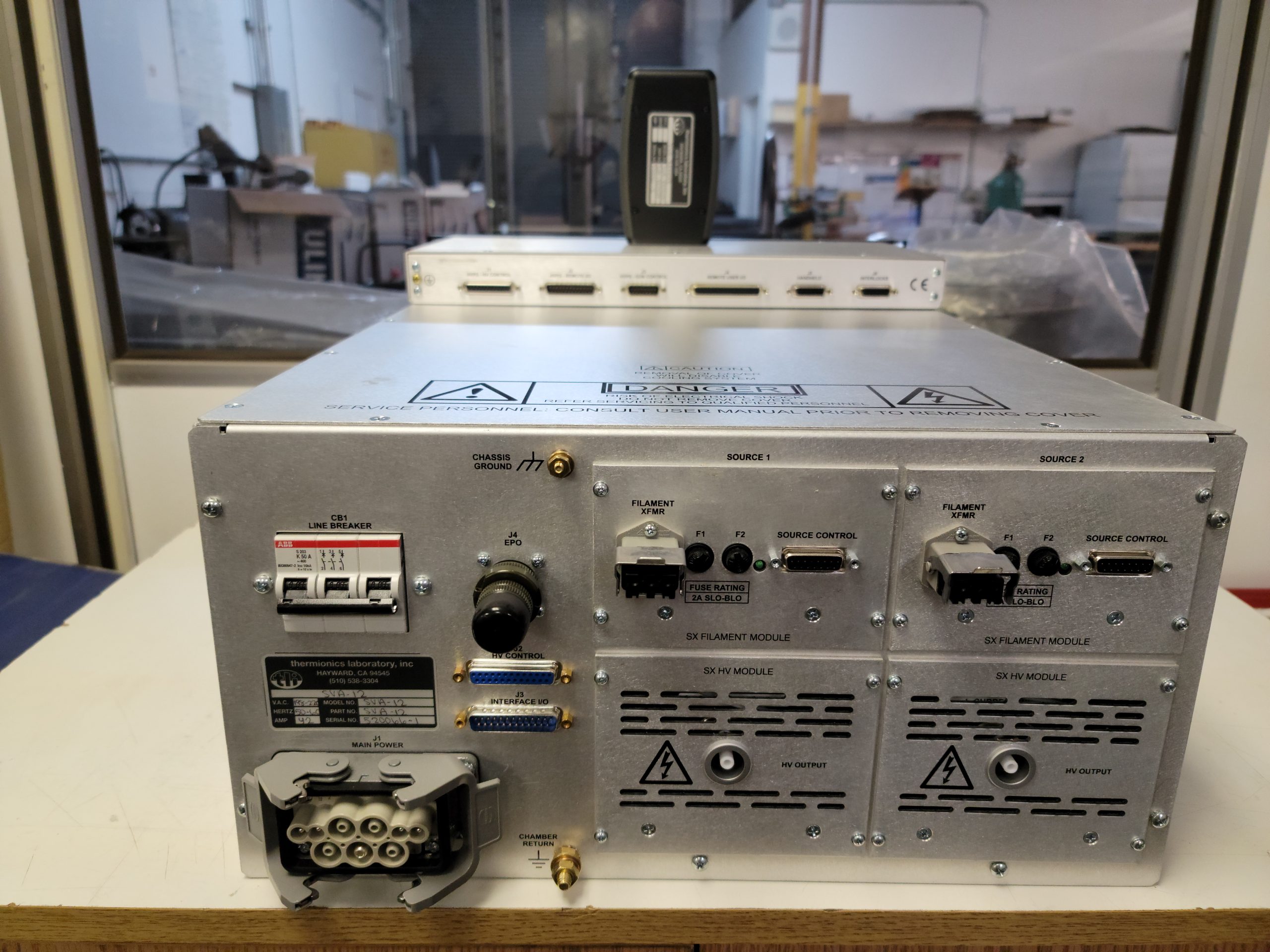

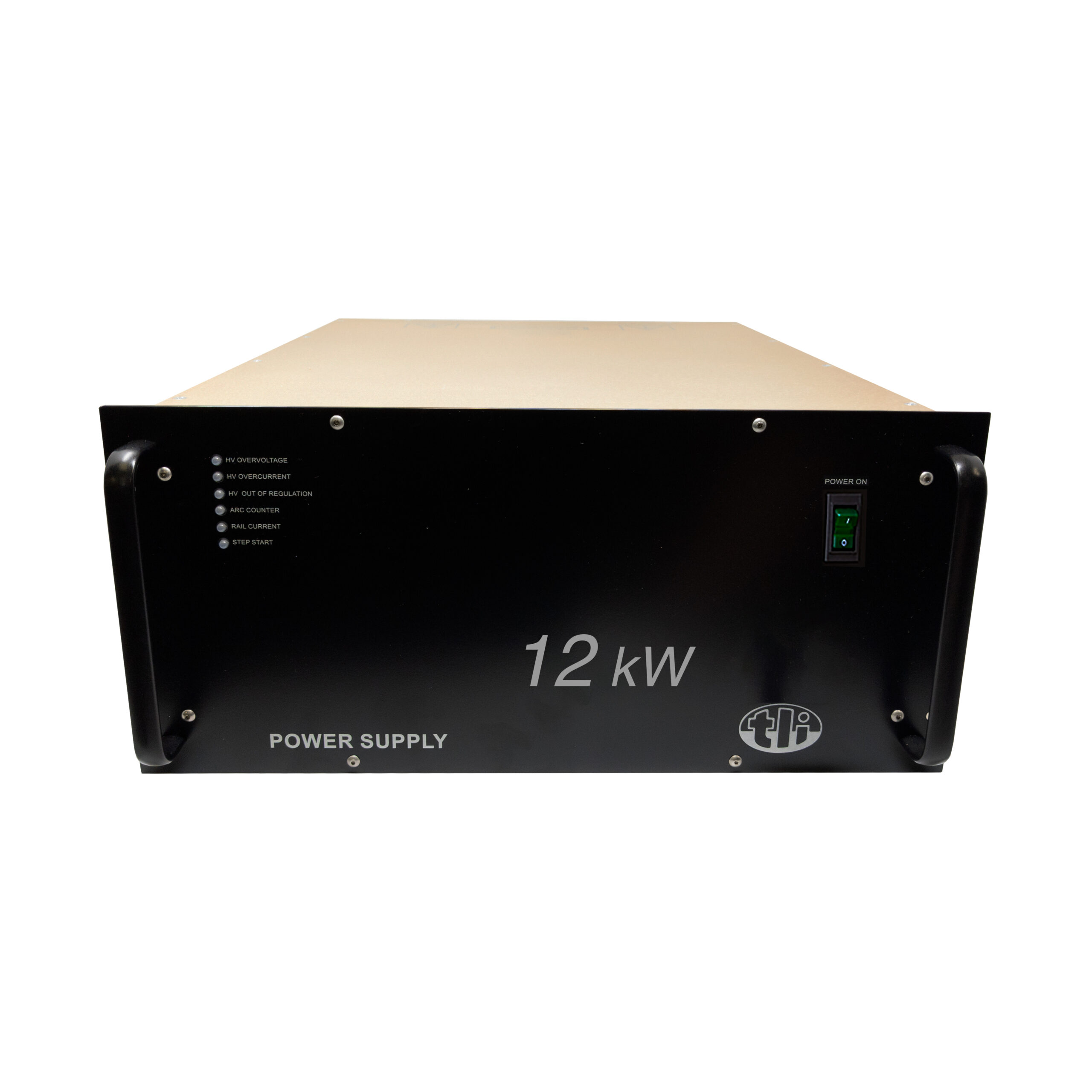

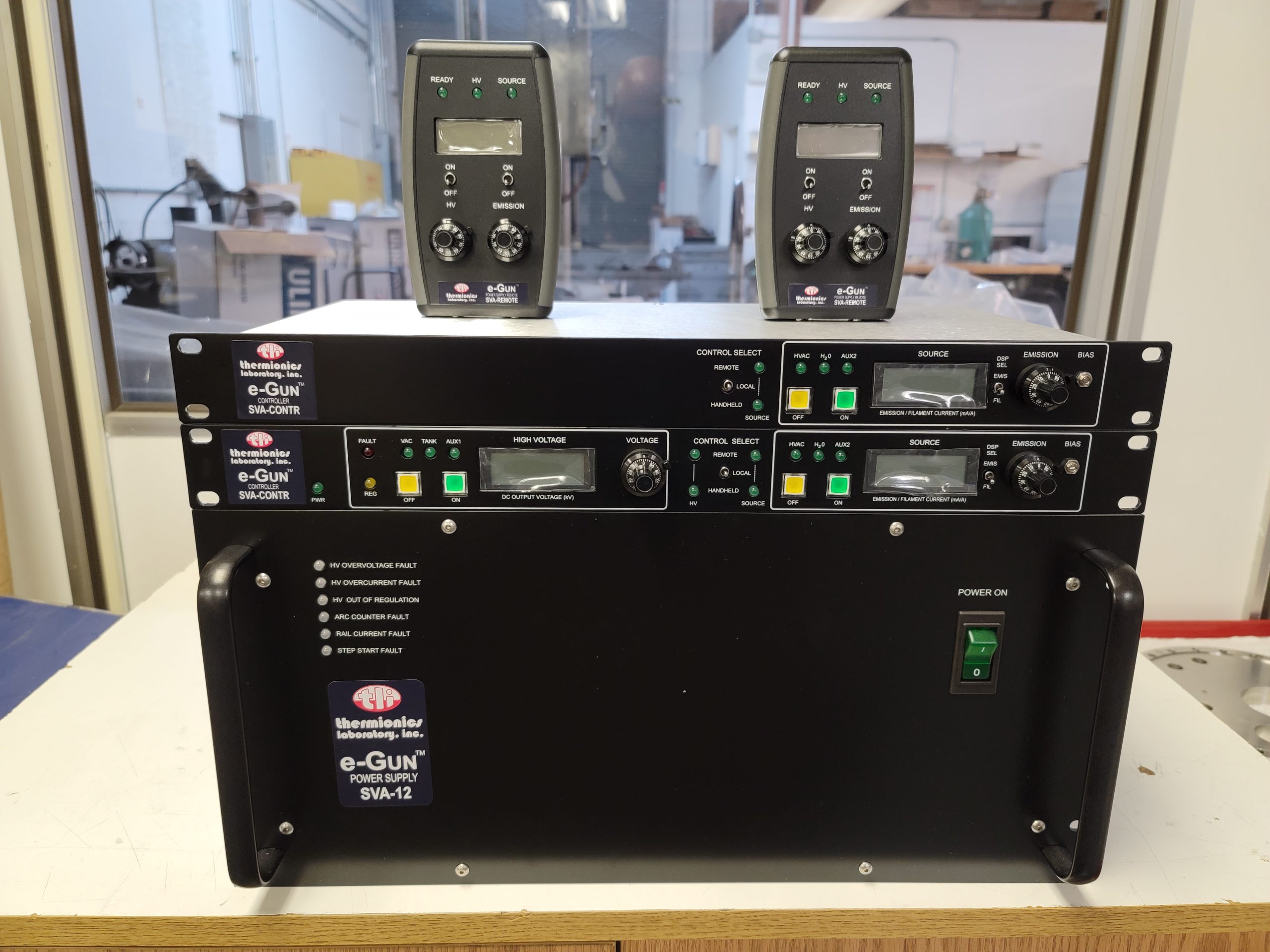

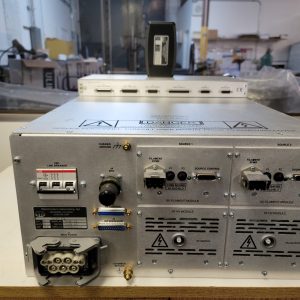

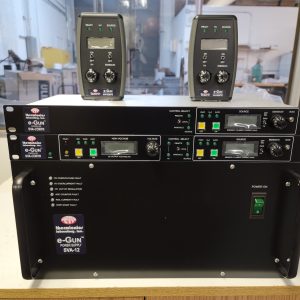

12 kW Power Supply

Solid State Power 12kW @ -10kV, 3 Phase, 50/60Hz Specify 208V or 400VAC Input Power Maximum Emission is 1.2 Amp Output Voltage Variable from 0 to -10kV, Dual Channel Optional (2 e-Gun™ Sources). NO SWEEP
