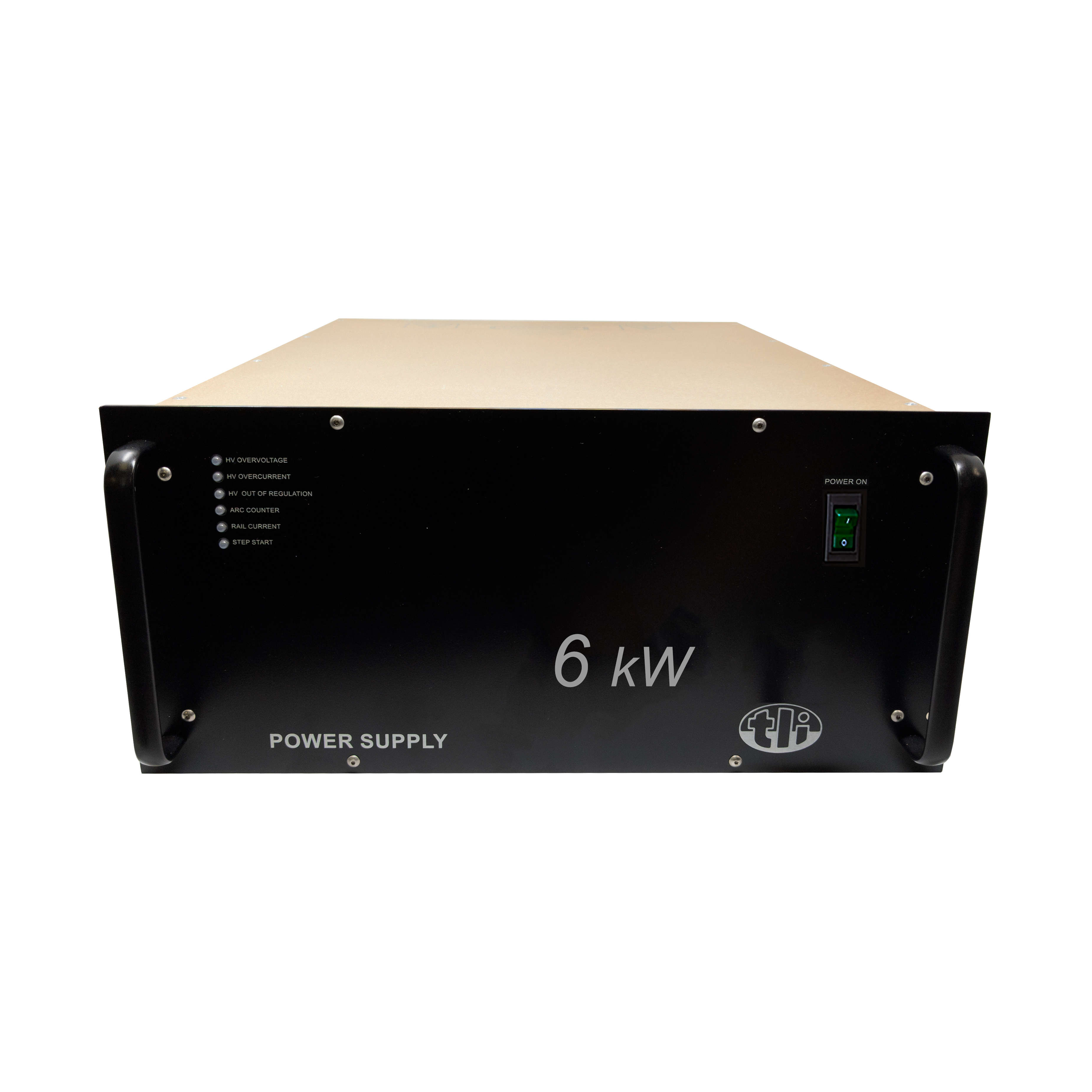

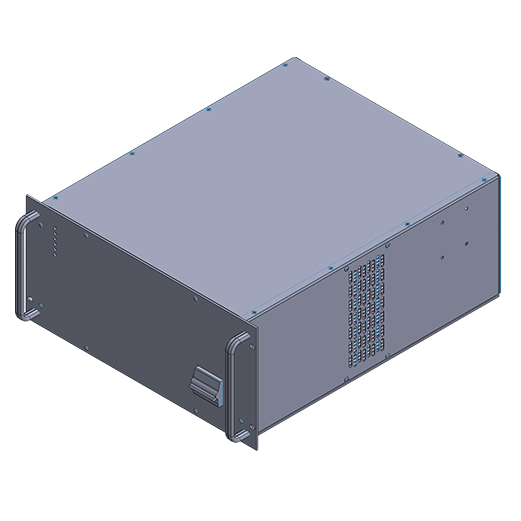

6kW+ e-Gun™ Power Supply
SPECIFICATIONS:
INPUT VOLTAGE:
- STANDARD: 180-264Vac, 50/60Hz, THREE (3) PHASE, 90% EFFICIENCY, 0-.85 POWER FACTOR
- OPTIONAL: 360-528Vac 50/60Hz, THREE (3) PHASE (400Vac) 180-264Vac 50/60Hz, SINGLE PHASE (1PH)
INPUT CURRENT:
- STANDARD: 180-264Vac, THREE (3) PHASE; 25 amps, MAXIMUM
- OPTIONAL: 360-528Vac, THREE (3) PHASE; 12.5 amps, MAXIMUM 180-264Vac, SINGLE PHASE; 57 amps, MAXIMUMOUTPUT
VOLTAGE:
19 MODELS FROM 1kV TO 150kV. EACH MODEL IS AVAILABLE WITH POSITIVE OR NEGATIVE OUTPUTS, 1kV TO 10kV UNITS ARE INTERNALLY REVERSIBLE.
LOCAL OUTPUT CONTROLS:
VOLTAGE ADJUSTABLE OVER THE ENTIRE RANGE VIA TEN-TURN POTENTIOMETERS WITH LOCKABLE COUNTING DIALS.
VOLTAGE REGULATION:
- LOAD: 0.05% OF FULL VOLTAGE +500mV FOR FULL LOAD CHANGE.
- LINE: 0.05% OF FULL VOLTAGE +500mV OVER SPECIFIED INPUT RANGE.
CURRENT REGULATION:
- LOAD: 0.05% OF FULL CURRENT 100uA FOR ANY VOLTAGE CHANGE.
- LINE: 0.05% OF FULL CURRENT OVER SPECIFIED INPUT RANGE.
- RIPPLE: 0.1% p-p +1Vrms.
- STABILITY: 0.02% HR. AFTER ONE (1) HOUR WARM-UP.
- TEMPERATURE COEFFICIENT: 100ppm/ C HIGHER STABILITY (50ppm/ C) AVAILABLE ON SPECIAL ORDER
- VIA THE HS OPTION.
ENVIRONMENTAL:
TEMPERATURE RANGE:
- OPERATING: 0 C TO 40 C
- STORAGE: -40 C TO 85 C
HUMIDITY:
10% TO 90% RH, NON-CONDENSING.
COOLING:
FORCED AIR; INLET THROUGH SIDE PANELS, OUTLET AT REAR OF PANEL.
METERING:
DIGITAL VOLTAGE AND CURRENT METERS, ACCURATE TO WITHIN 1%
SYSTEM STATUS DISPLAY:
“DEAD FRONT” TYPE INDICATORS PROVIDE STATUS OF UP TO TWELVE (12) SYSTEMS
OPERATIONS INCLUDING VOLTAGE AND CURRENT REGULATION, FAULT CONDITIONS AND CIRCUIT CONTROL.
ANALOG INTERFACE CONNECTOR:
FIFTY (50) PIN FEMALE D CONNECTOR
WEIGHT:
<100 lbs.
