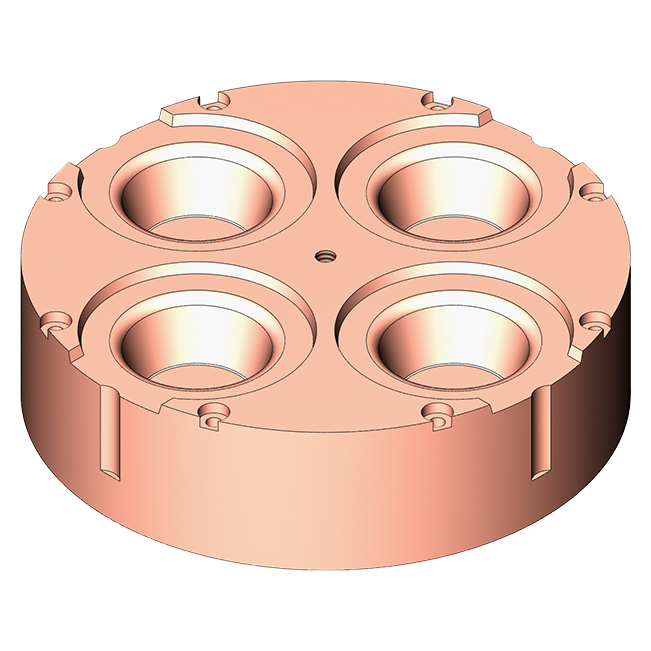

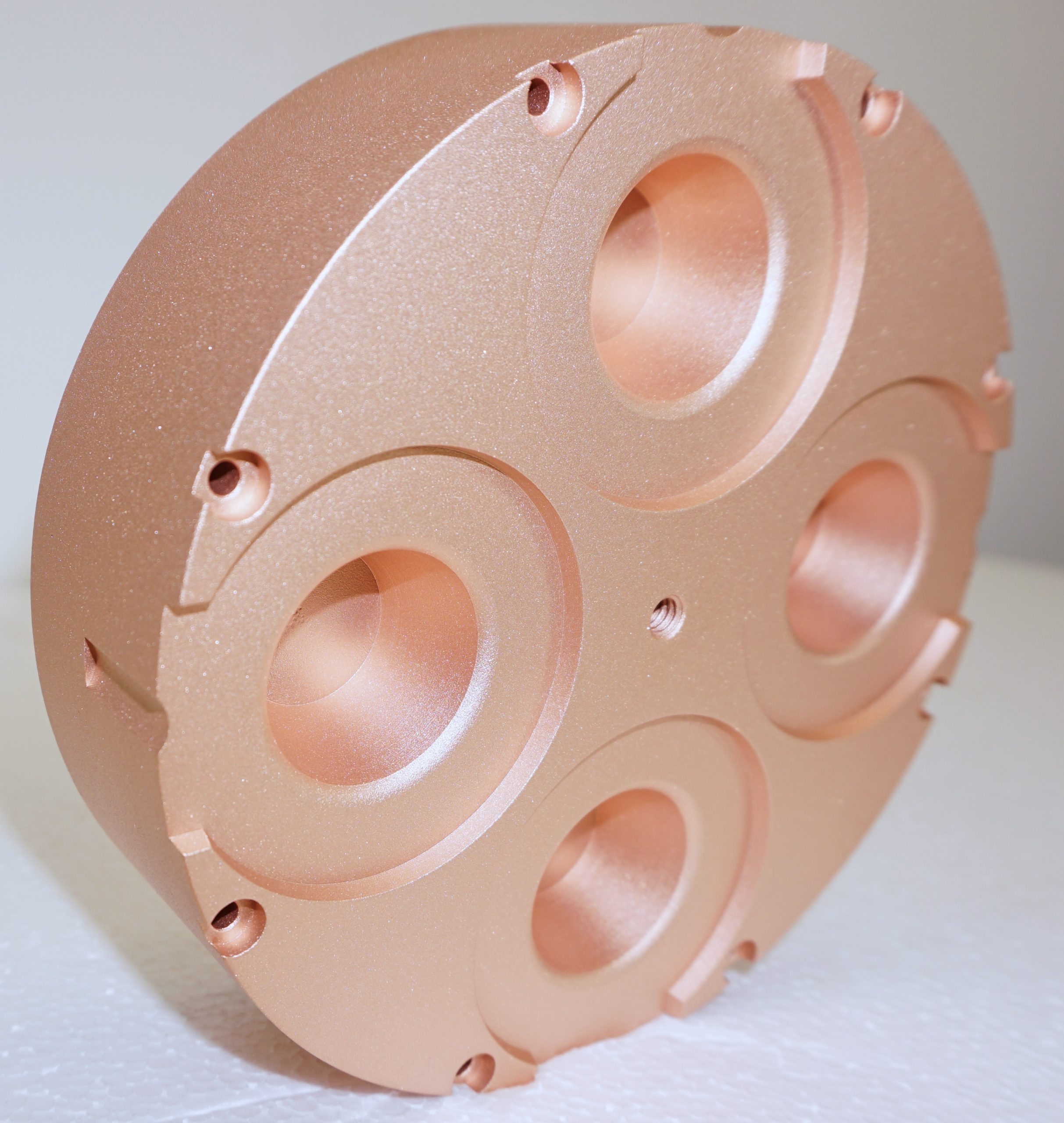

HCR Series Rotary Crucibles, 6kW or 10 kW

Engineered for high-vacuum (HV) electron ebeams, these rotary OFE (Oxygen-Free Electronic) copper crucibles provide reliable, long-lasting performance for precision materials processing. Designed as direct replacements for standard rotary Thermionics Laboratory, Inc. e-Gun crucibles, they offer superior thermal conductivity, minimal contamination, and excellent wear resistance.
Add to quote
Contact Sales

HCR Series Rotary Crucibles, 6kW or 10 kW

Features:
  • Material: OFE Copper – ensures optimal thermal performance and purity for high-vacuum applications.
  • Compatibility: Fits a range of HV electron beam rotary e-Guns, including HCR, I.C.R., and RCR series.
  • Capacity Options: Available in multiple pocket and pan configurations to suit specific deposition requirements.
  • Precision Machining: High-tolerance fabrication ensures secure fit, smooth rotation, and minimal thermal expansion.
  • Versatility: Supports high-power applications (up to 10 kW) with even melting and evaporation of metals and alloys.
  • Durability: Designed for repeated use under high-temperature vacuum conditions without warping or galling.

Additional information

Power Settings

6 kW
Pocket Count

4, 6, 8
Crucible Size

7cc, 10cc
