RPLR Series Rack & Pinion Linear-Rotary Feedthroughs
Stroke Model No.
10” RPLR-.75-10
20” RPLR-.75-20
30” RPLR-.75-30
40” RPLR-.75-40

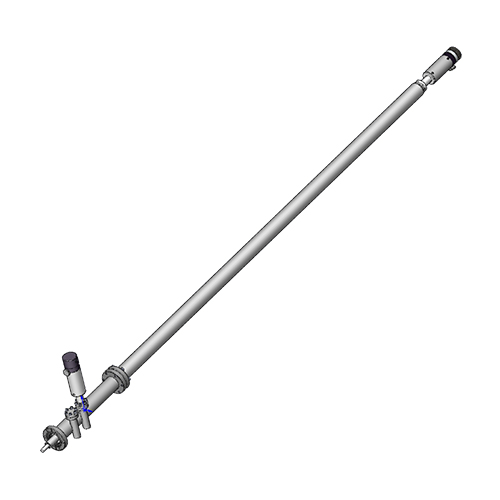

50” RPLR-.75-50
60” RPLR-.75-60
NOTE: Custom strokes between those listed are available

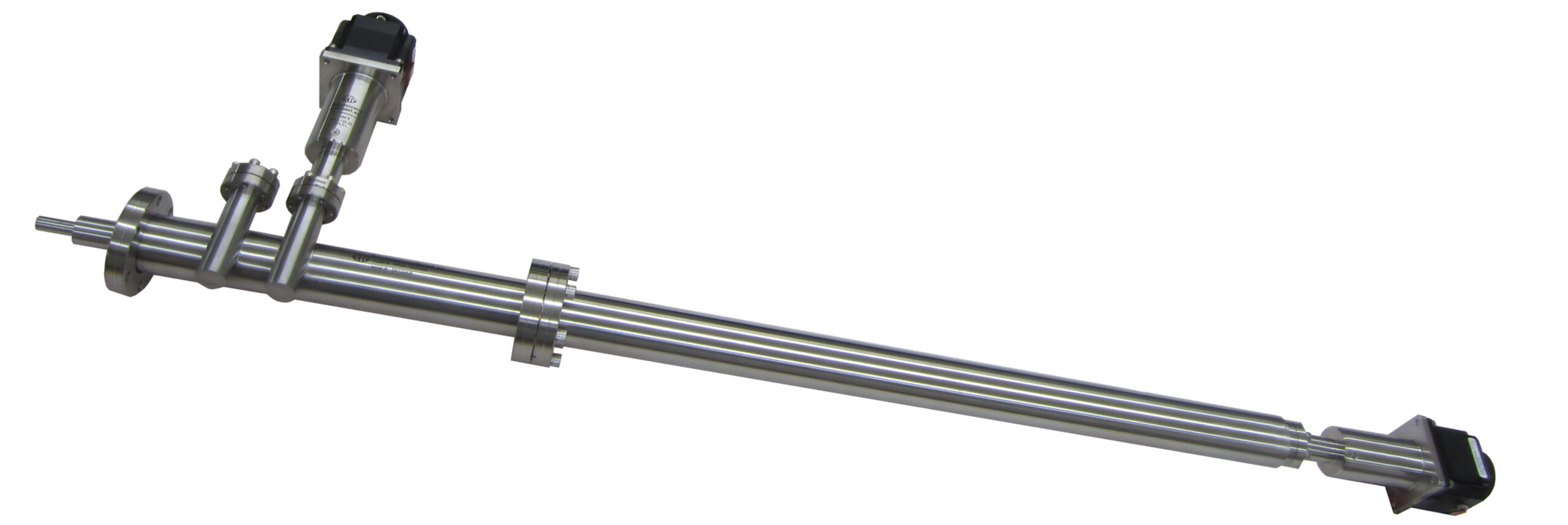

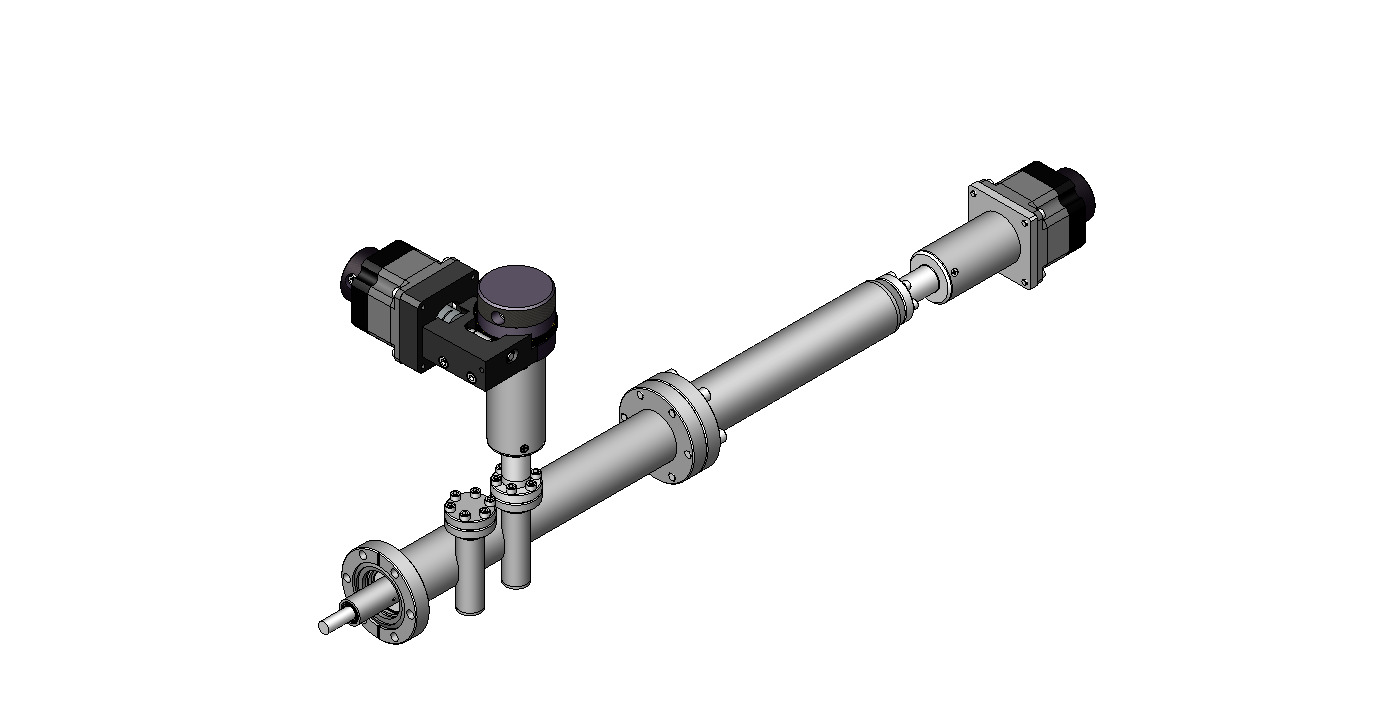

The RPLR series of linear-rotary feedthroughs use a 3/4” diameter probe. The probe is actuated by a rack and pinion positive drive (rotary bellows sealed feedthrough). The independent rotary actuation is achieved by a second rotary feedthrough. Only the 3/8” diameter probe tip rotates, keyed with a ball bearing keyway. This allows mounting of jaw-type devices which are actuated by the rotary action. The standard mounting flange is a 2.75” O.D. rotatable flange. The RPLR is an all-position device with position locks on both rotary feedthroughs. All metal construction for bakeability.
This unit is also available as a linear feedthrough only (RPL series).
