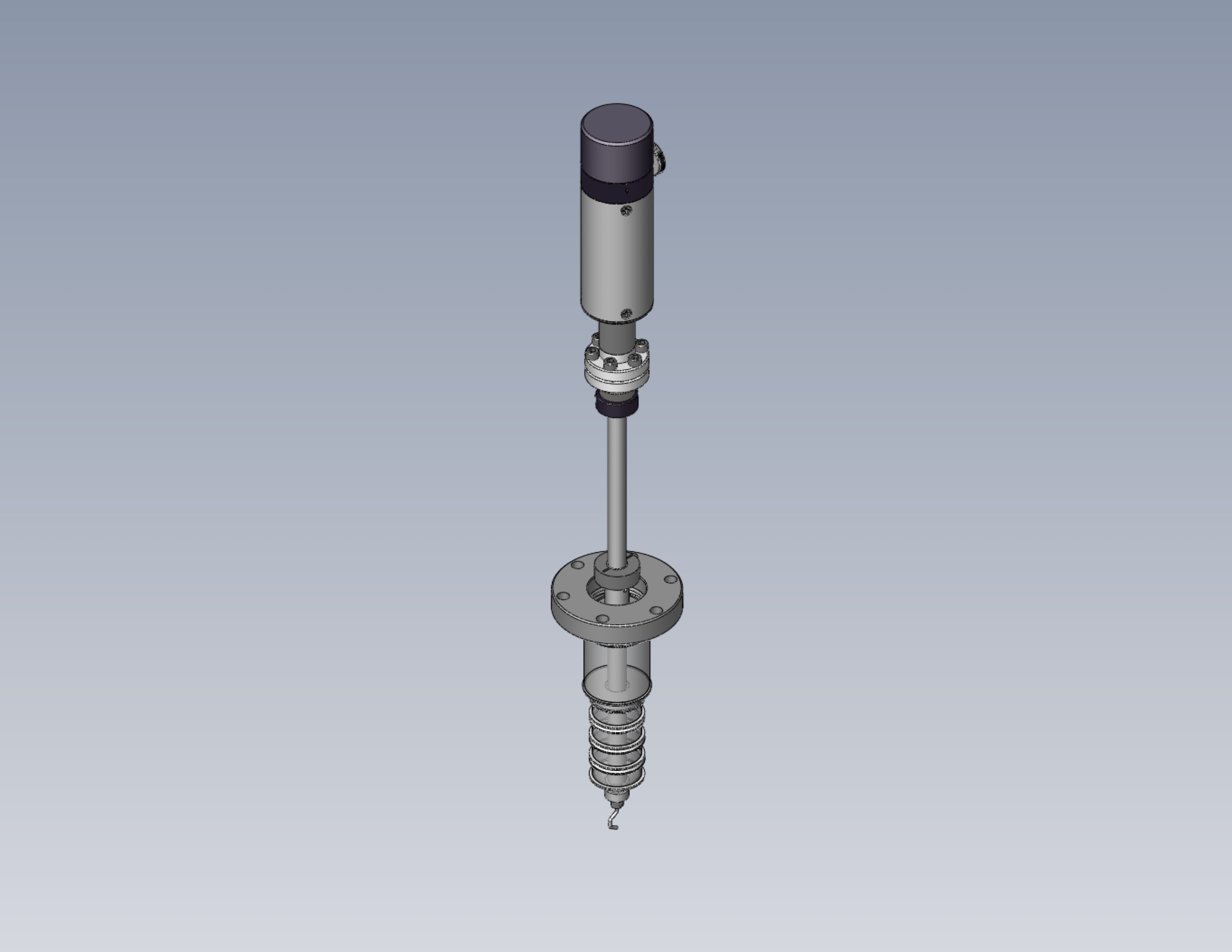

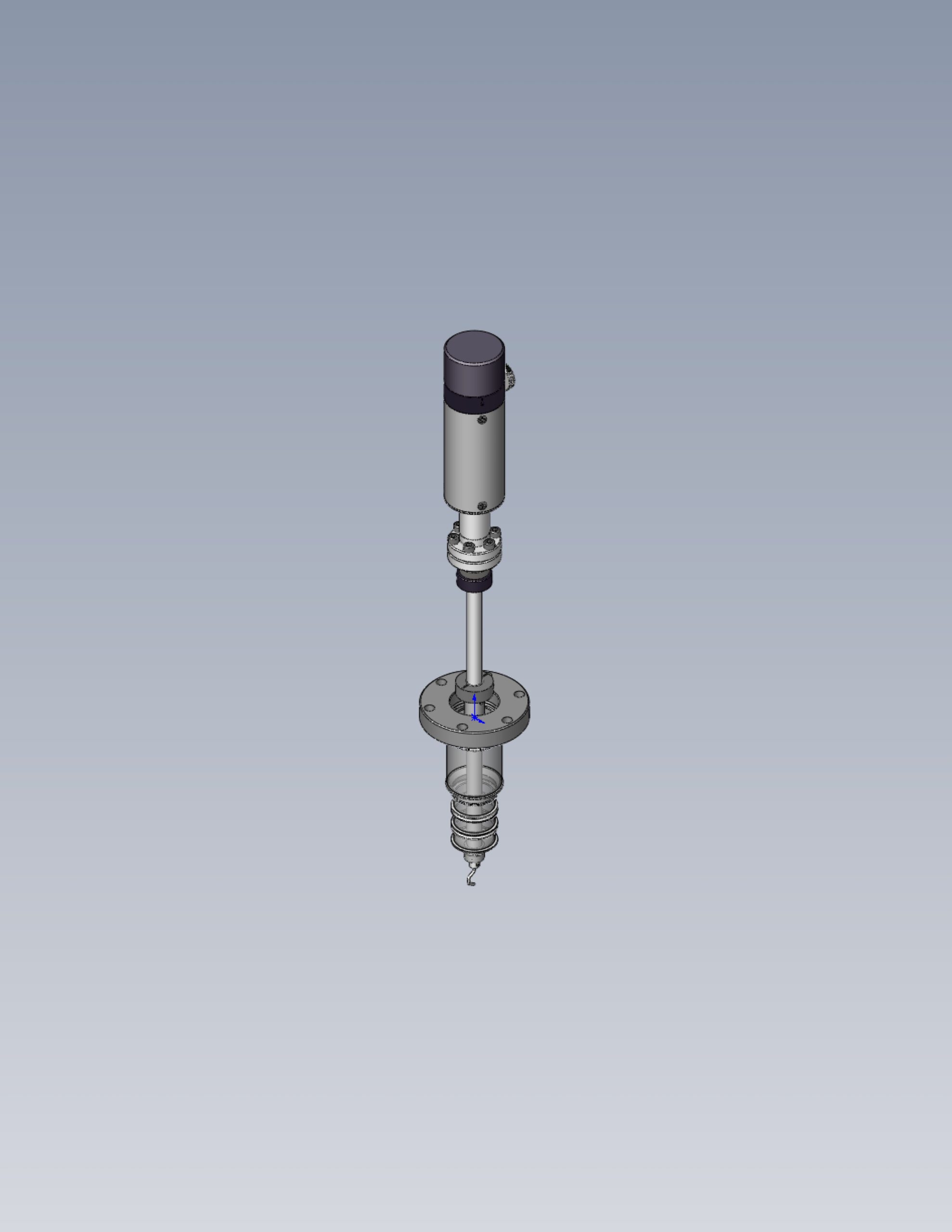

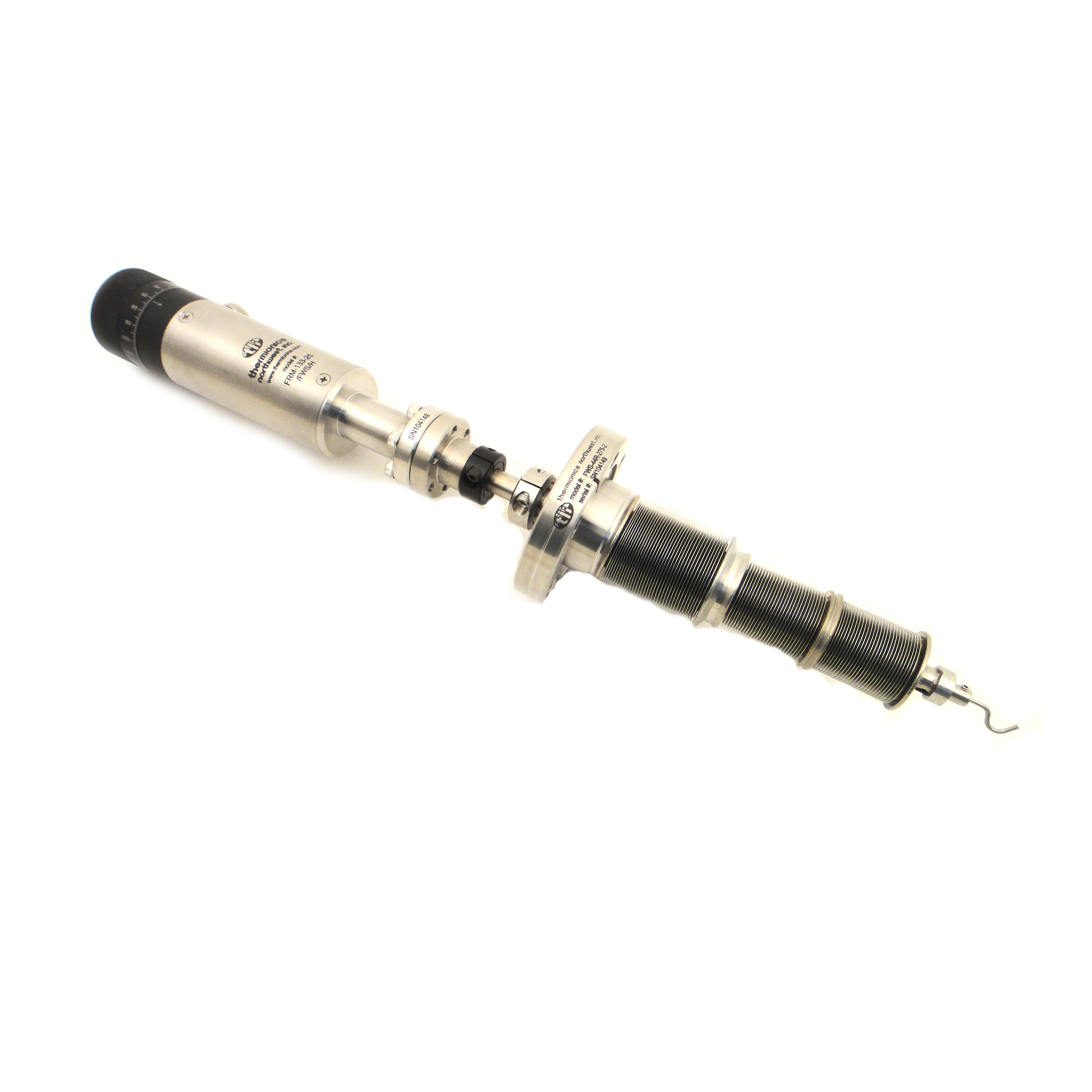

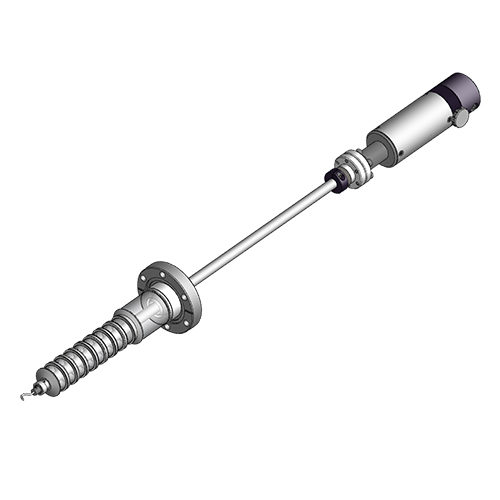

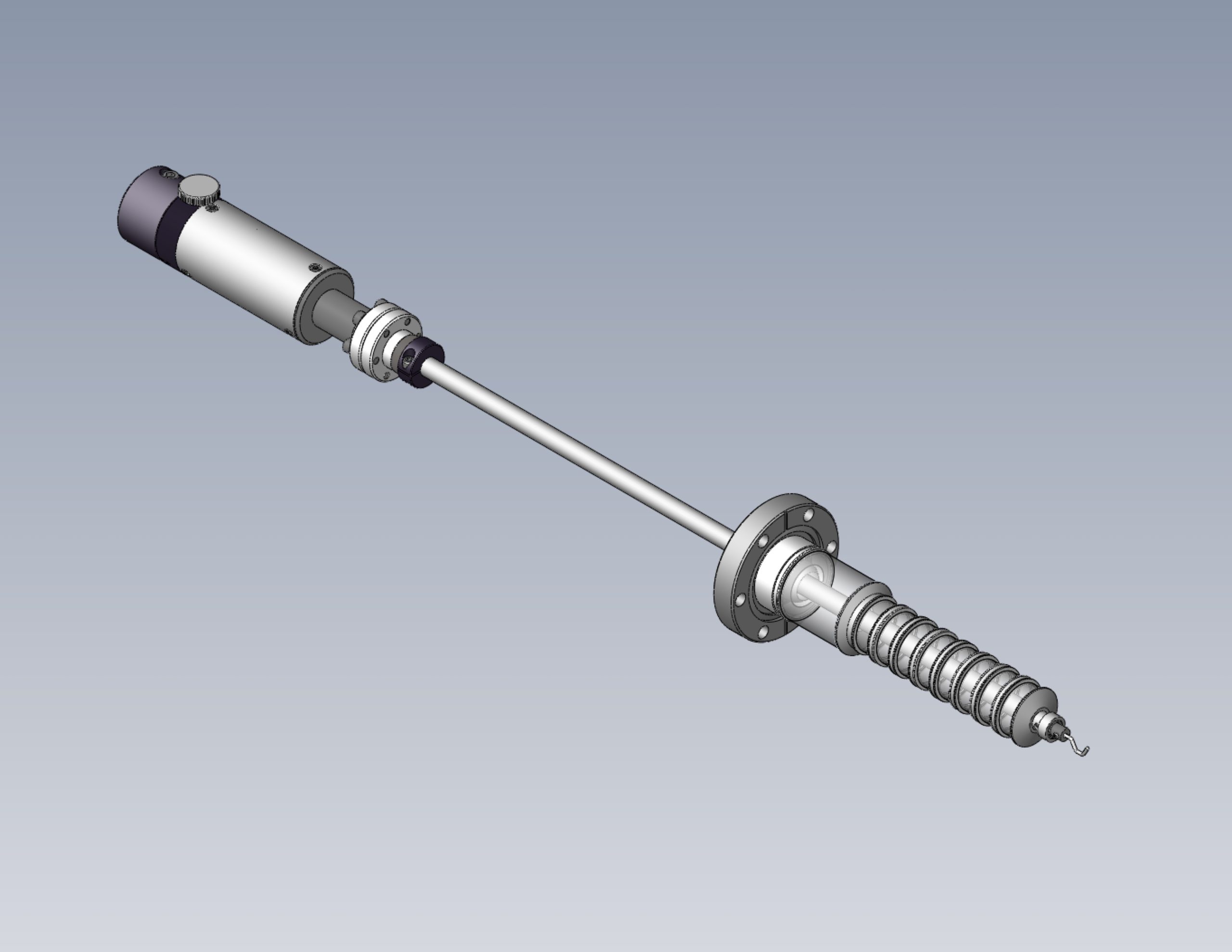

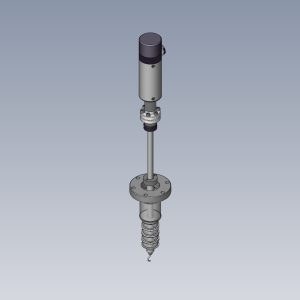

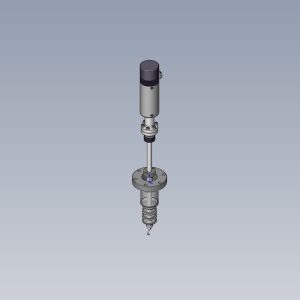

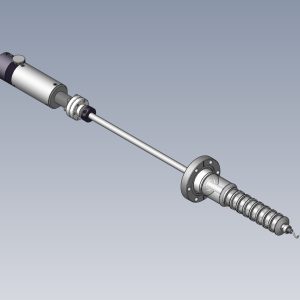

FWS-44R-275

  • ±22 ° angular range
  • 1-12” Z stroke
  • Independent bellows for Z and θ
  • Special spherical bearing mount
  • Z travel position lock
  • 360° probe rotation
Mounting Flange   275
Probe-O   CL, STD
Stroke   1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
Angle   ±22°
End   Hook, P, PDME, PO, POE, PW

/P Wobble Stick with Pincer Actuation (All specs above, plus):

  • Includes push knob with 0.20” of linear actuation
  • Order pincer below

Pincer Options

Thermionics offers a variety of pincers for your application. Custom pincers can be supplied on request.

/PW Standard Single Jaw Pincer

  • Single jaw action
  • Suitable for thin wafers

/PDME DME Single Jaw Pincer

  • Single jaw action
  • Handles DME rectangular platens

/PO Omicron Single Jaw Pincer

  • Single jaw action
  • Handles Omicron brand platens

/POE Omicron Double Jaw Pincer

  • Handles Omicron brand platens
  • Edge grip double jaw action

/PS Special Pincer
