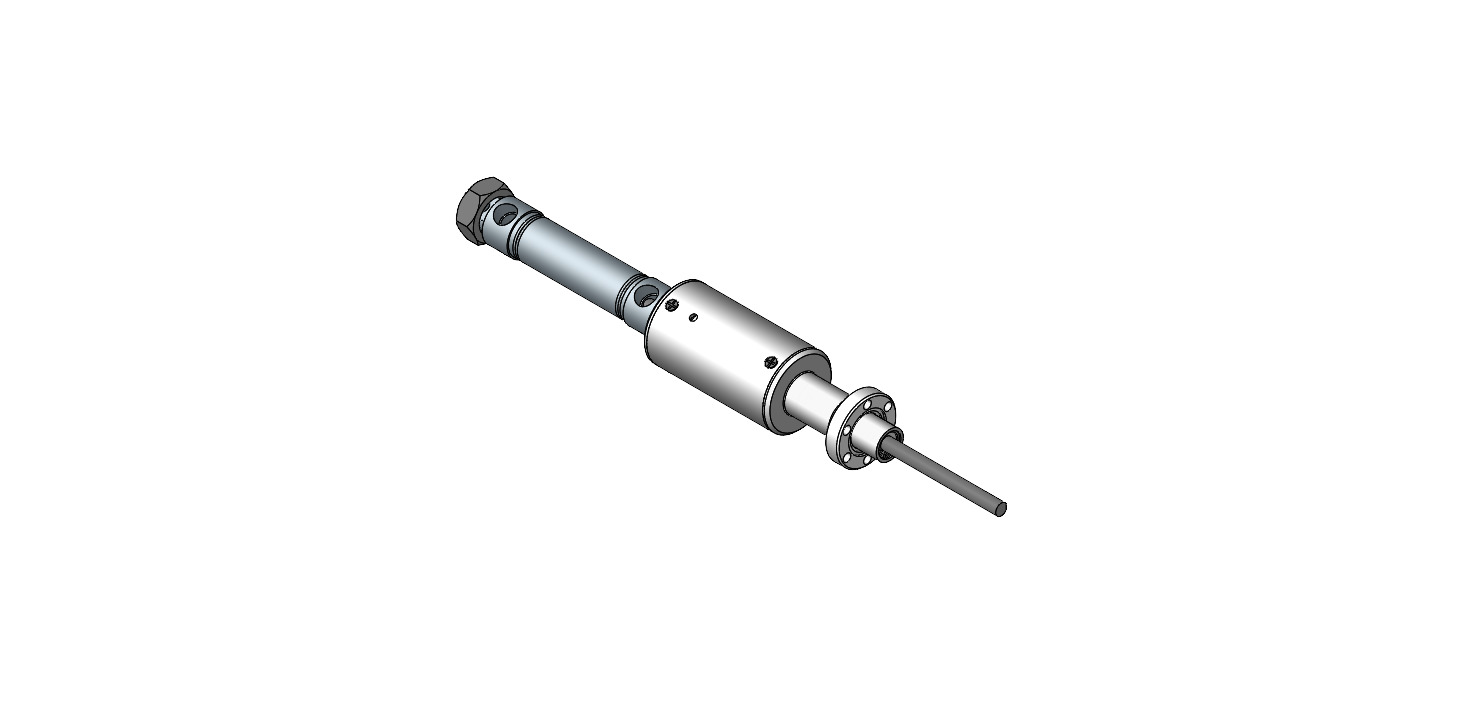

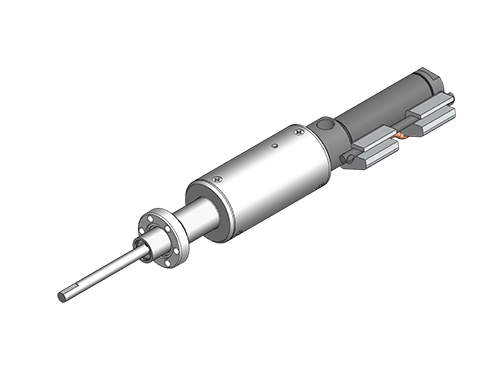

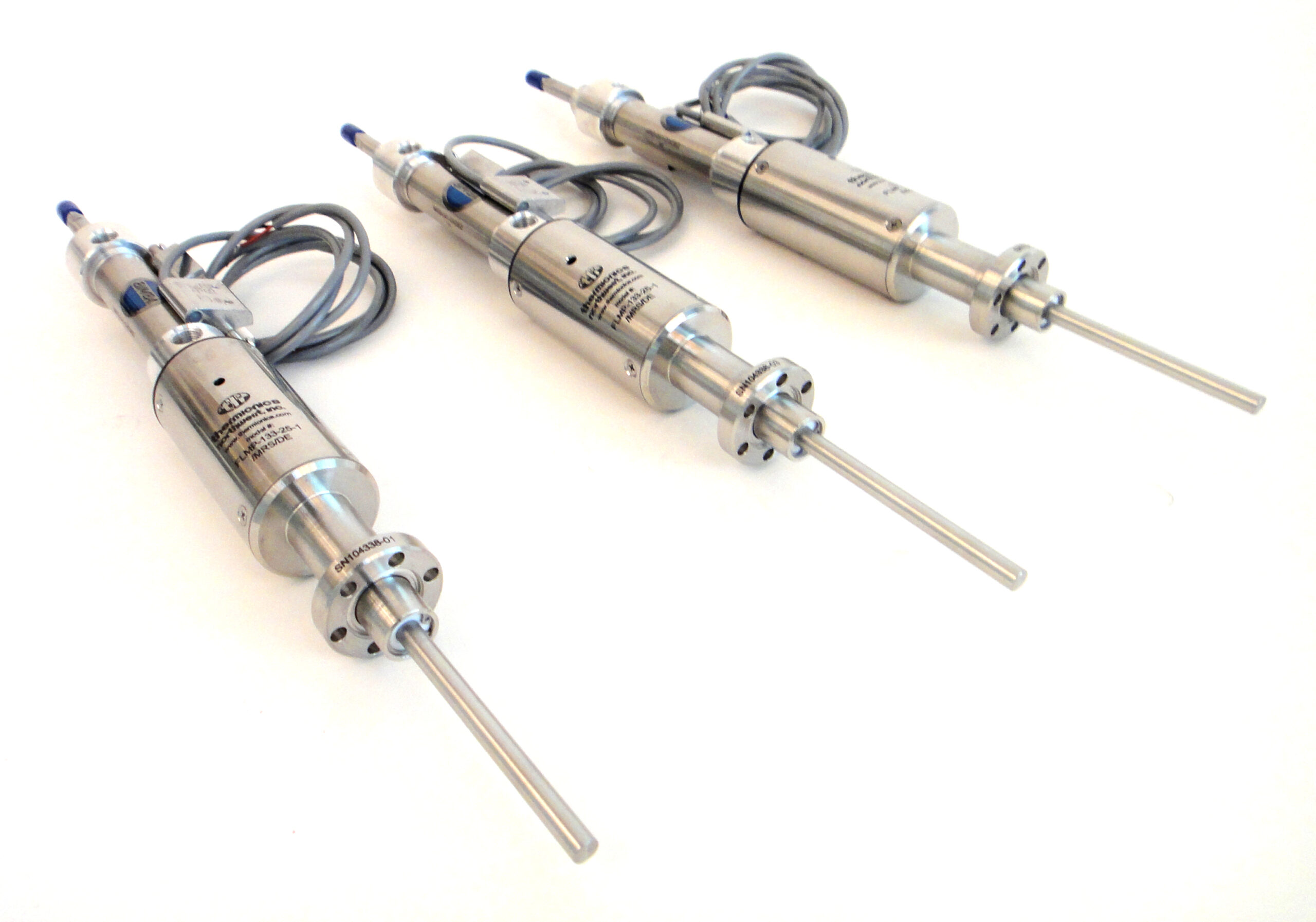

FLMP-25 Series Pneumatically Actuated Linear Vacuum Feedthroughs
| Mounting-Flange | 133 (standard), 275, 450
(Others available) |
|---|---|
| Stroke | 1, 2, 3, 4, 5, 6, 7, 8 |
- 1/4” O.D. shaft
- 1.33” O.D. mounting flange
- Stainless steel bellows sealed
- Stainless steel linear shaft bearing
- Pneumatically actuated
- 3/4” I.D. cylinder
- 50 to 150 psi air pressure
- Stainless steel rod and cylinder with bumpers, both ends
- Performance (with optional /ACV-24 valve below): <180 msec from coil energize to finish of 4” travel with 80 psi on an FLM-133-4/PNM with shutter
Stroke Model No.
- 1” FLML-133-25-1/PNM
- 2” FLML-133-25-2/PNM
- 3” FLML-133-25-3/PNM
- As above, but mounted on a 2.75” O.D. flange
- Other strokes available

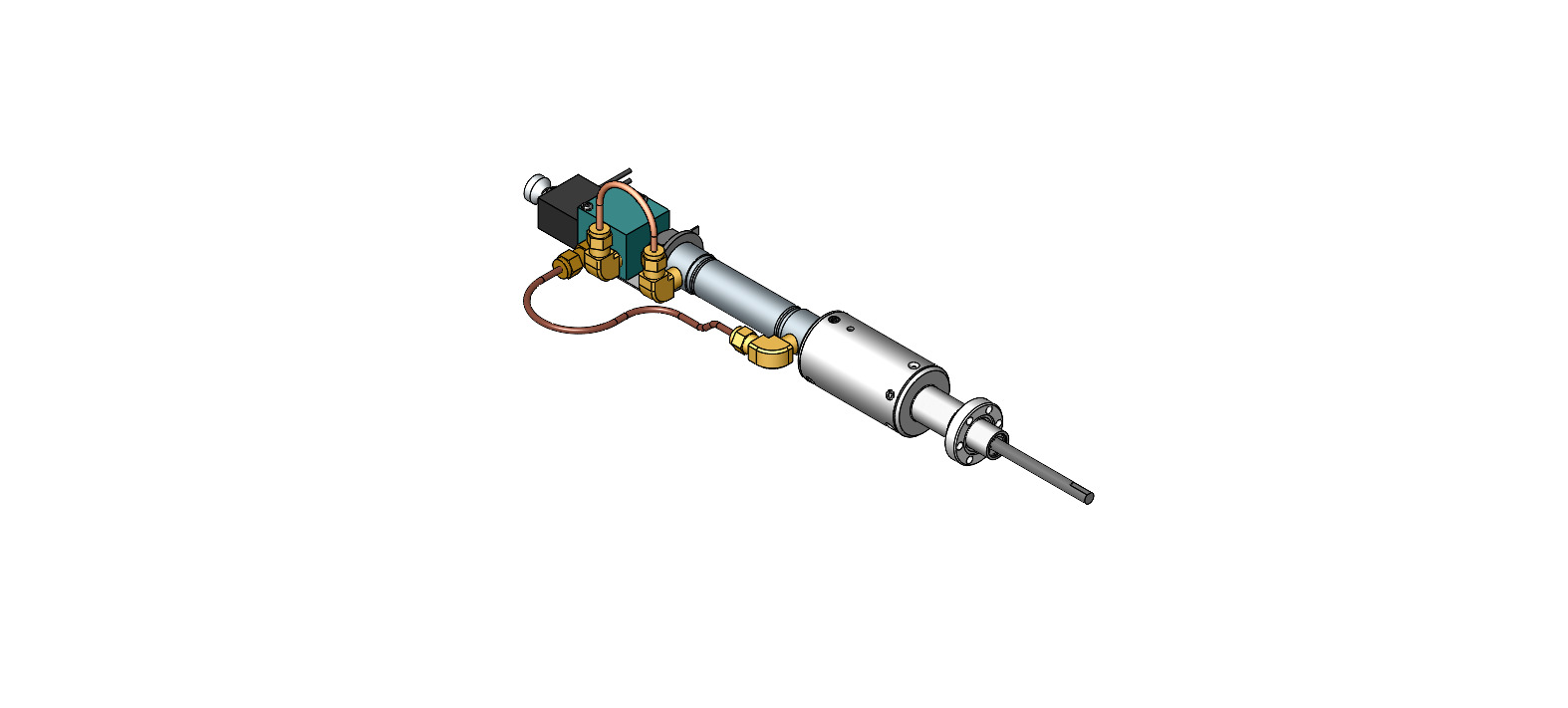

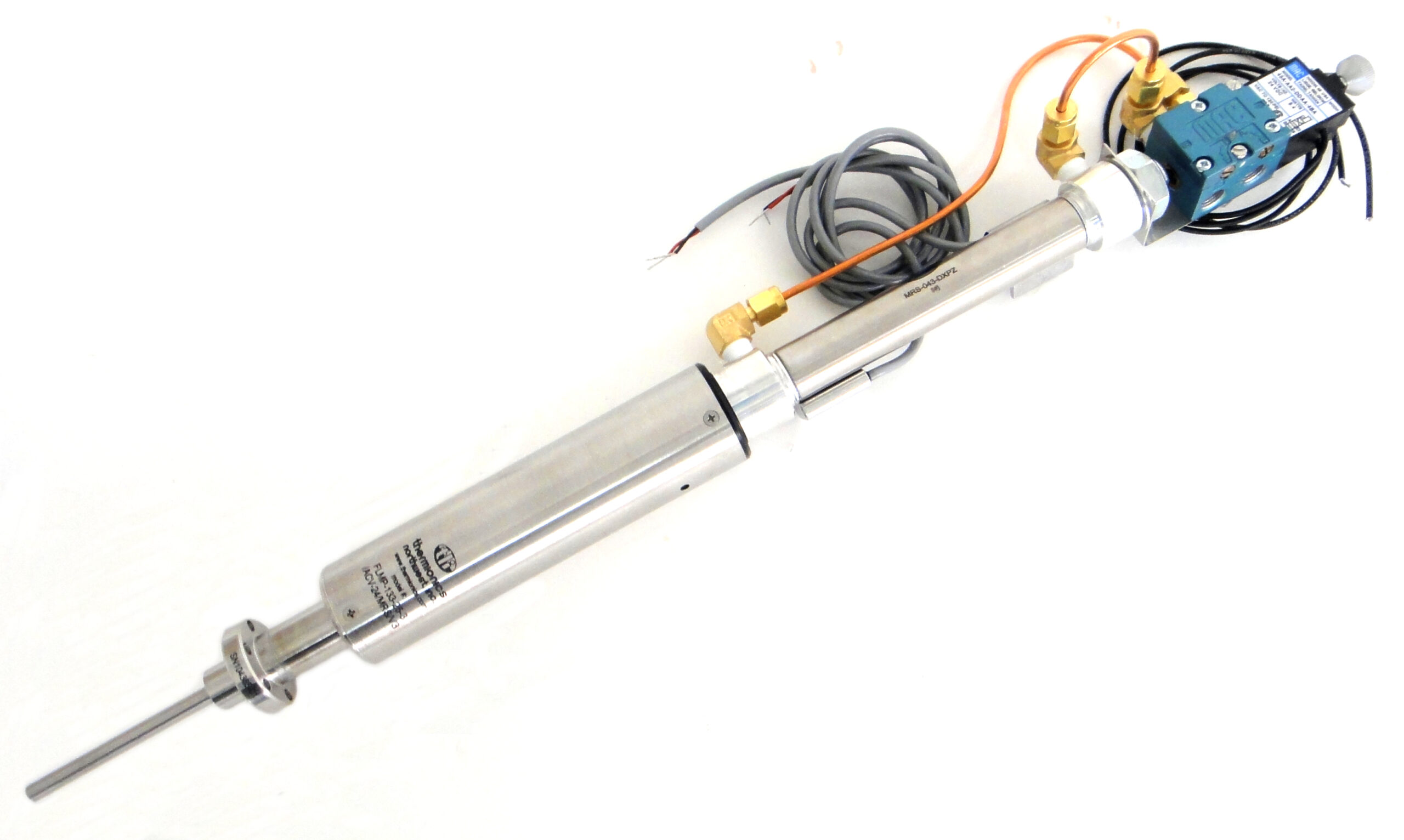

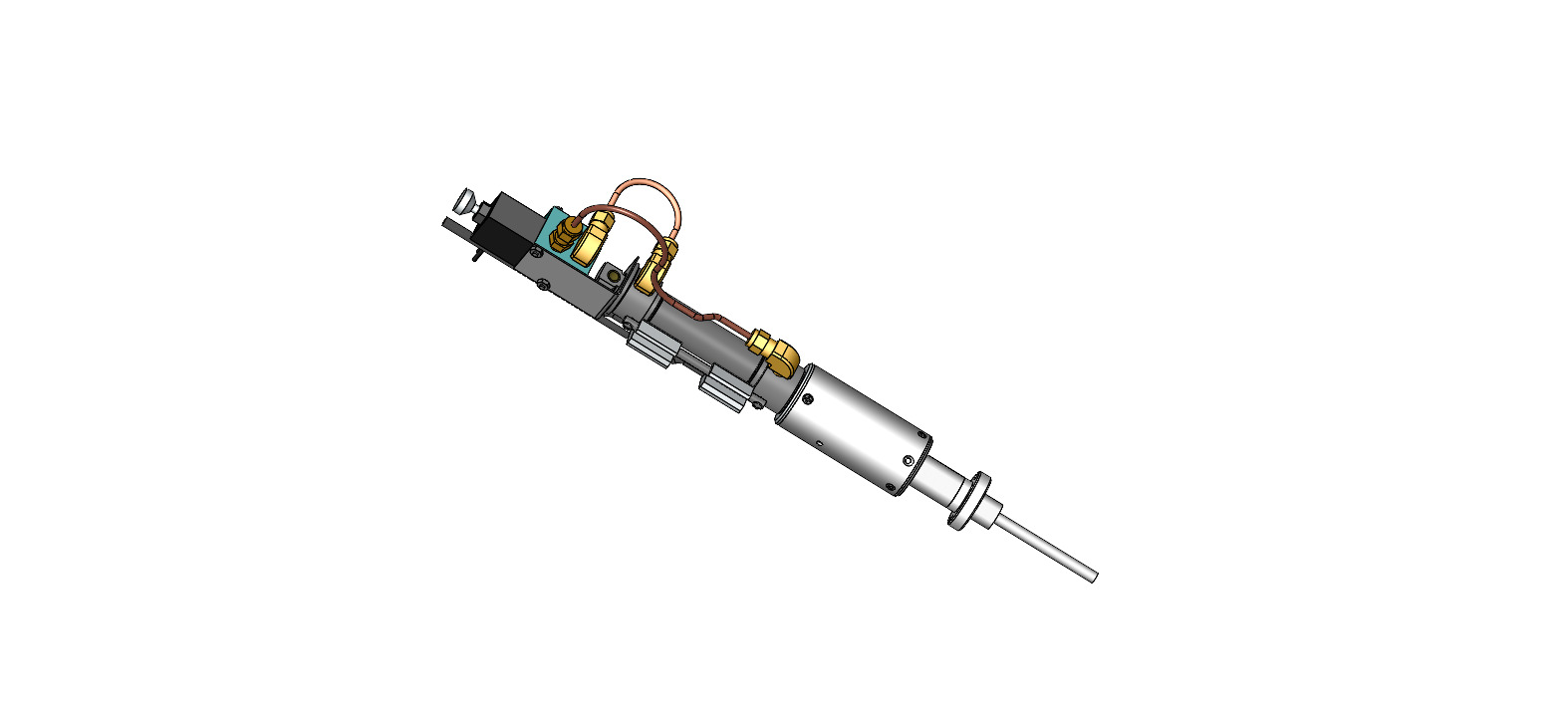

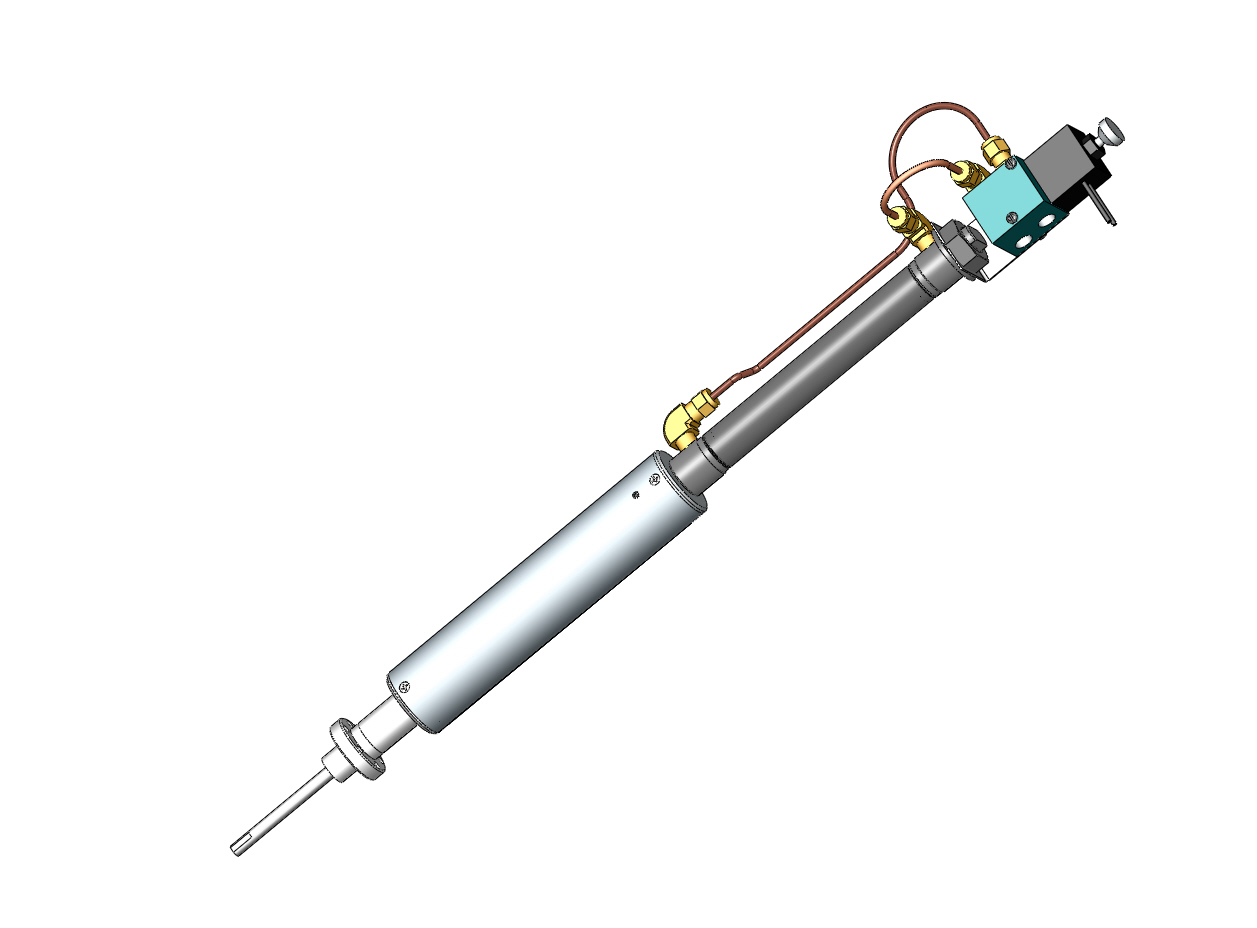

/A CV-24 Air Control Valve Option
- Mounted to feed through
- Valve-to-actuator plumbing installed
- Control voltage 24 VDC standard or per customer requirements
- With flow controls, both directions
