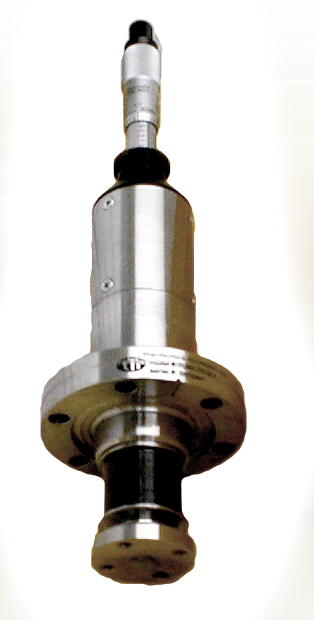

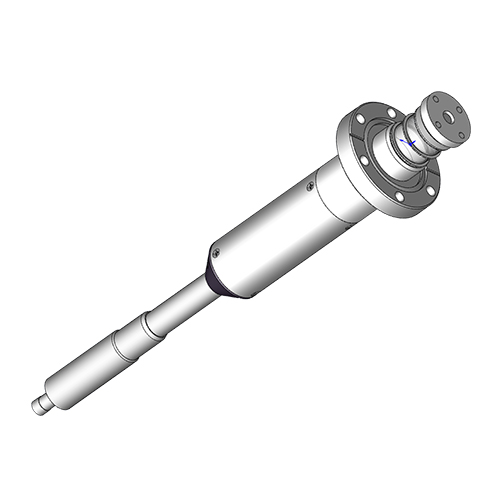

FLMM-275-50 Series

Mounting-Flange   275
Stroke   1, 2, 25MM, 50MM
Micrometer   Large, Standard

Linear Vacuum Feedthroughs

  • 1/2” O.D. main shaft
  • 2.75” O.D. mounting flange
  • 1” or 2” stroke
  • Stainless steel bellows sealed
  • Micrometer actuated. with pre-loaded micrometer-to-probe coupling
  • Linear bushings

Stroke A B C Model No.

1” 8.20 1.40 4.34 FLMM-275-50-1

2” 10.00 1.79 6.03 FLMM-275-50-2
