FLML-25 Series

Linear Vacuum Feedthroughs

Add to quote
Contact Sales

Downloads

DRAWINGS

SLO FLML-133-25-1 FLML Series Push Pull Linear Mechanical Feedthroughs Electron Beam Gun Manipulation Motion Sample Handling DRAWING.pdf Custom Download Icon

SLO FLML-133-25-2 CL FLML Series Push Pull Linear Mechanical Feedthroughs Electron Beam Gun Manipulation Motion Sample Handling DRAWING.pdf Custom Download Icon

SLO FLML-133-25-3 FLML Series Push Pull Linear Mechanical Feedthroughs Electron Beam Gun Manipulation Motion Sample Handling DRAWING.pdf Custom Download Icon

SLO FLML-133-25-4 FLML Series Push Pull Linear Mechanical Feedthroughs Electron Beam Gun Manipulation Motion Sample Handling DRAWING.pdf Custom Download Icon

SLO FLML-133-25-6 AT FLML Series Push Pull Linear Mechanical Feedthroughs Electron Beam Gun Manipulation Motion Sample Handling DRAWING.pdf Custom Download Icon

SLO FLML-133-25-12 FLML Series Push Pull Linear Mechanical Feedthroughs Electron Beam Gun Manipulation Motion Sample Handling DRAWING.pdf Custom Download Icon

STEP-FILES

FLML-133-25-12 FLML Series Push Pull Linear Mechanical Feedthroughs Electron Beam Gun Manipulation Motion Sample Handling STEP Custom Download Icon

FLML-133-25-4 AP214 FLML Series Push Pull Linear Mechanical Feedthroughs Electron Beam Gun Manipulation Motion Sample Handling STEP Custom Download Icon

FLML-133-25-12 FLML Series Push Pull Linear Mechanical Feedthroughs Electron Beam Gun Manipulation Motion Sample Handling STEP Custom Download Icon

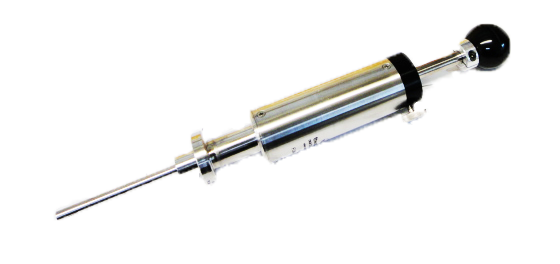

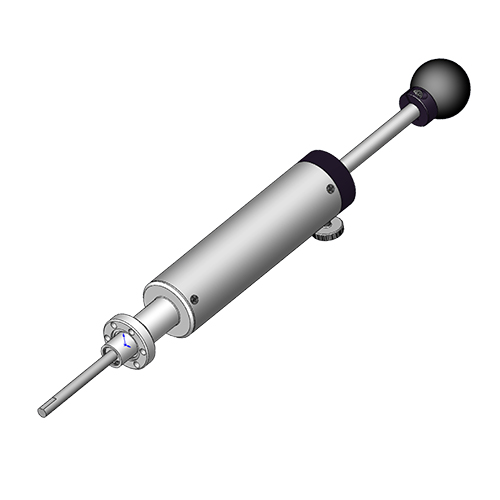

FLML-25 Series

Linear Vacuum Feedthroughs

  • 1/4″ O.D. shaft
  • 1.33″ O.D. mounting flange
  • 1″, 2″ or 3″ stroke
  • Stainless steel bellows sealed
  • Coarse linear actuated
  • Stainless steel linear shaft bearing



 Stroke  A  Model No.
1″ 7.25″ FLML-133-25-1
2″ 8.75″ FLML-133-25-2
3″ 10.85″ FLML-133-25-3
Custom shaft length
