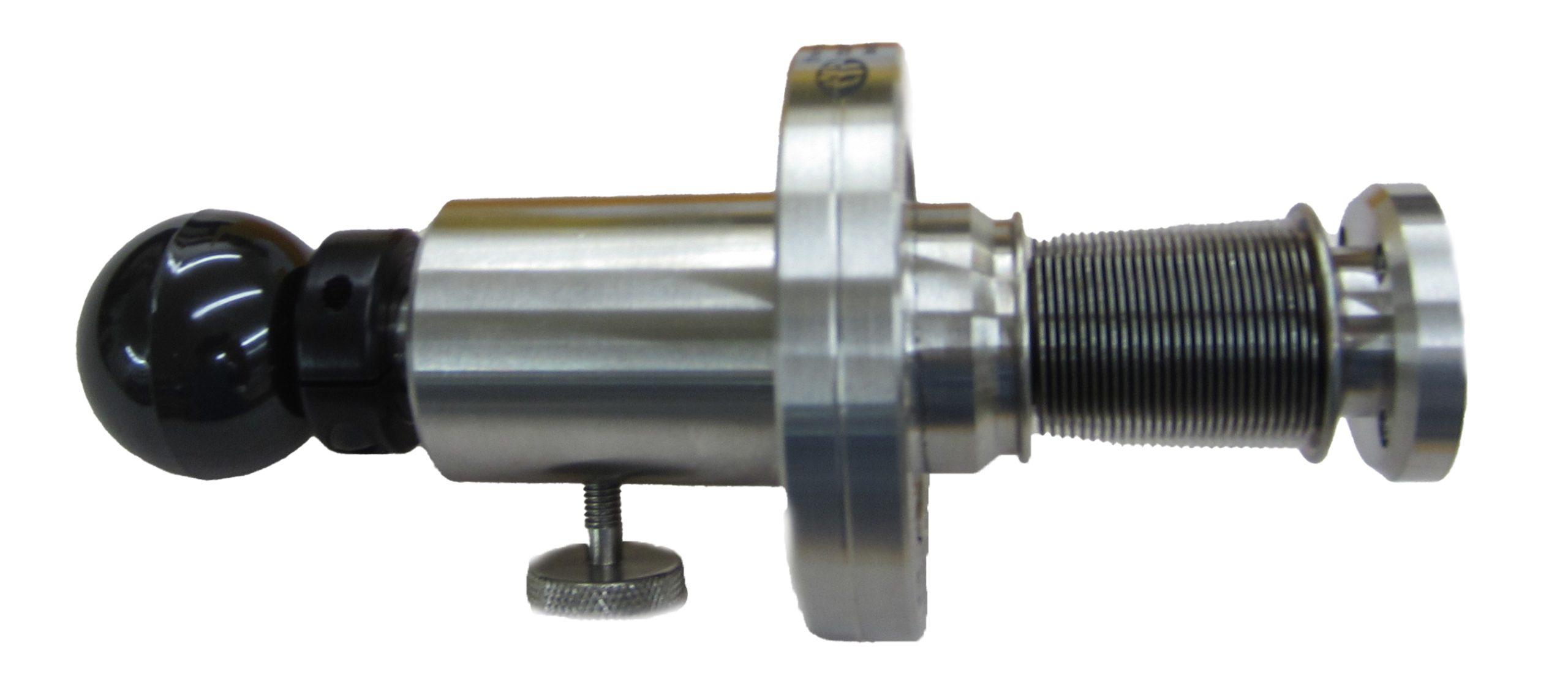

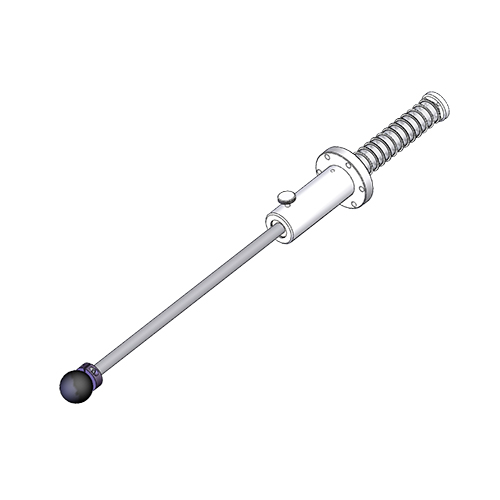

FLML-50 Series

Linear Vacuum Feedthroughs

  • 1/2″ O.D. main shaft
  • 2.75″ O.D. mounting flange
  • Up to 15″ stroke or more
  • Stainless steel bellows sealed
  • Push-pull actuated, with adjustable position stop
  • Position lock
  • Linear bushings
Stroke A B Model No.
1″ 6.26 1.4 FLML-275-50-1
2″ 7.65 1.79 FLML-275-50-2
10″ 20.77 4.91 FLML-275-50-10
Additional stroke, per inch



/FA Fine Adjust Option

  • Knob adjustment
  • 10 turns/inch linear travel
  • Ball bearing mount
