SHQ Series Sample Heating

  • For 2” O.D. (standard) maximum sample size (optional sizes to 5”O.D.)
  • Electrically isolated sample
  • Haynes alloy sample plate with three sample clips
  • Best temperature uniformity: 1” O.D.
  • Maximum temperature:
  • 700°C continuous
  • 1,000°C peak

Sample Heating

Thermionics offers a variety of heating options to fit your application. A selection of UHV (Ultra High Vacuum) and oxygen or chemical vapor environment heaters can be adapted to the SMR sample mount.

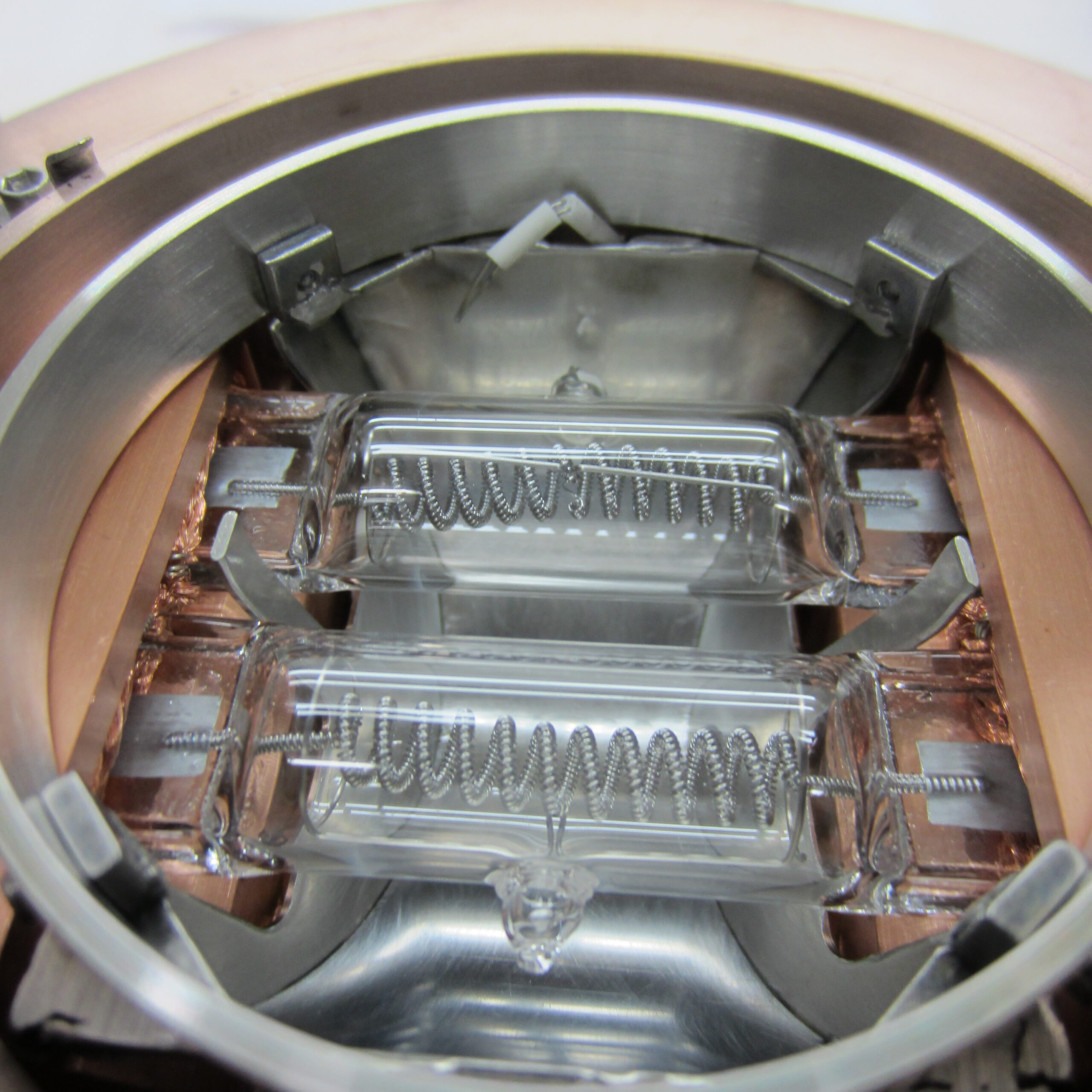

SHQ-2 Radiant Quartz Lamp Heater*

  • For 2” O.D. (standard) maximum sample size (optional sizes to 5”O.D.)
  • Electrically isolated sample
  • Haynes alloy sample plate with three sample clips
  • Best temperature uniformity: 1” O.D.
  • Maximum temperature:
  • 700°C continuous
  • 1,000°C peak
