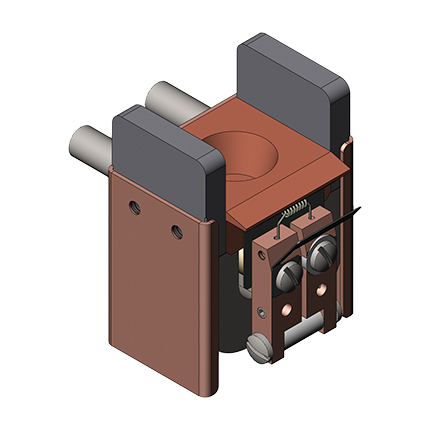

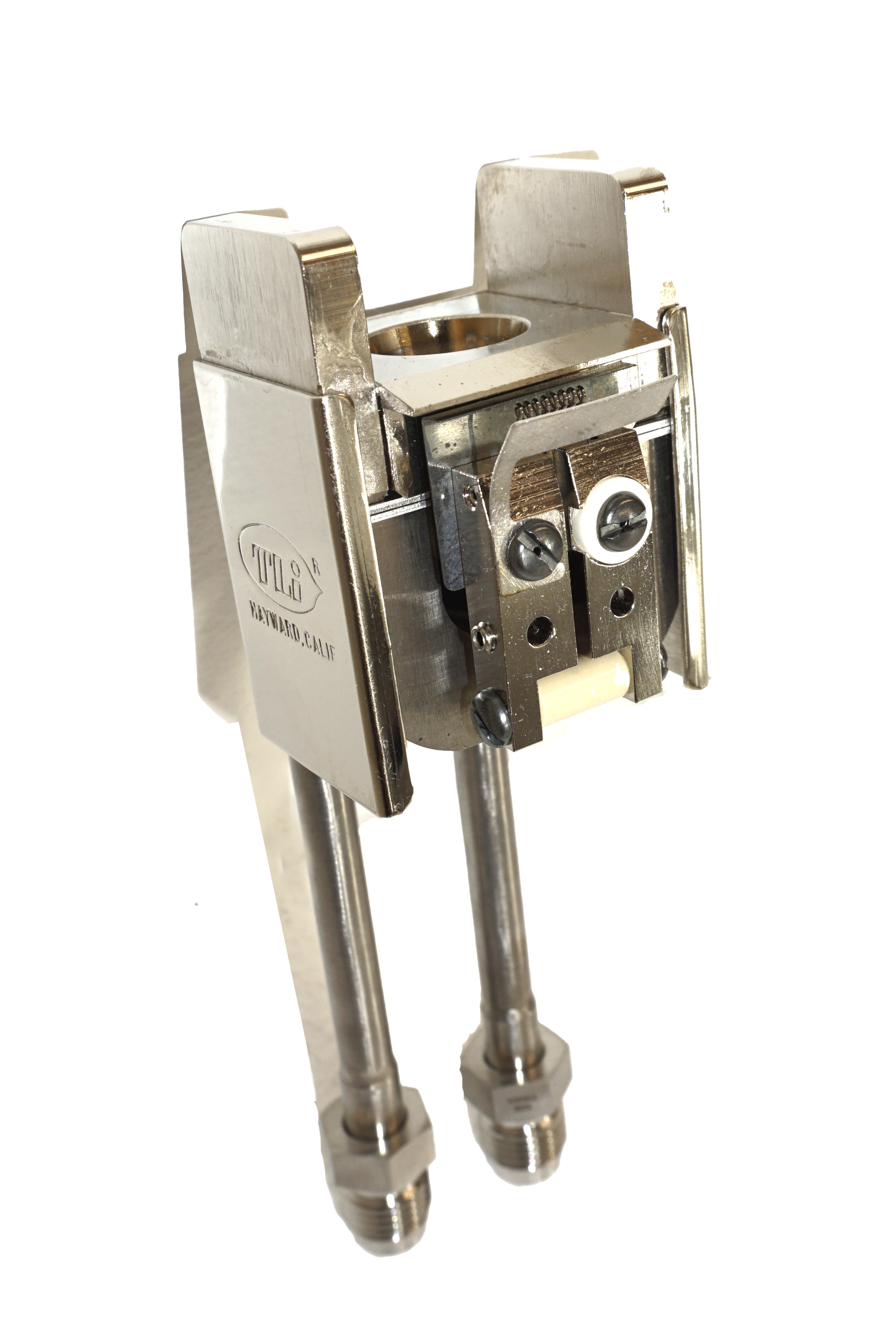

Thermionics Classic Single pocket 3 kW e-Gun, side-by-side configuration available.
Features
- UHV rated e-Gun
- Compact design
- Ideal for academia
- Low maintained cost
- Rugged design
Specifications
- Operating Pressure Below 5 x 10-5 Torr is desirable for best operation
- Beam Voltage 4,000 V
- Beam Current 0-750 mA continuously variable
- Maximum Power 3 kW
- Cooling Water 1/2 gpm
- Maximum Bakeout Temp. 230°C
- Crucible Volume 2.24 cc
Mounting Configurations
Each e-Gun™ is available in three standard mounting configurations:
- e-Gun™ mounted on PyraFlatTM or CF metal-seal type flange, which uses a standard OFE copper
gasket - e-Gun™ alone with no mounting flange
- e-Gun™ mounted on 1” base plate feedthrough
Ordering Information
- Description Model No. 2.24 cc Classic Single crucible e-Gun 100-0010
