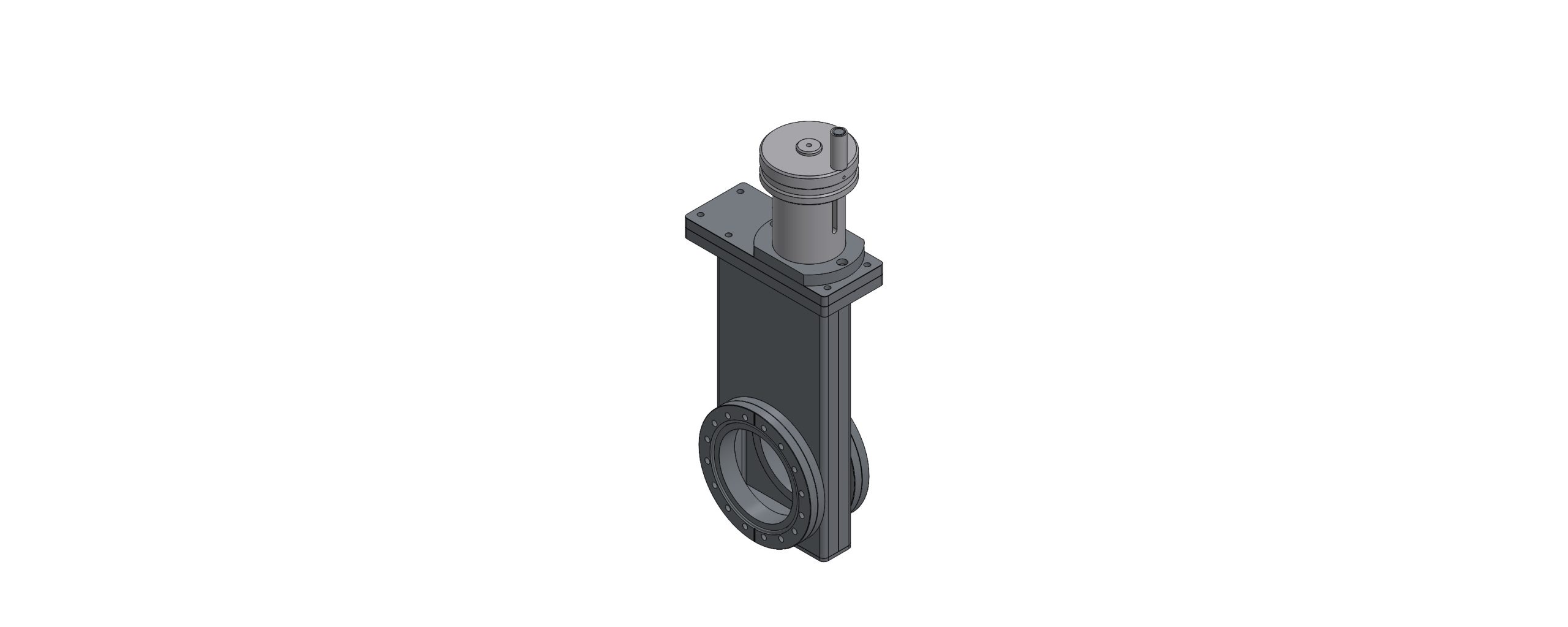

TLG4000, Manual Gate Valve, Metal Seal Bonnet
| Weight | 45 lbs |
|---|---|
| Dimensions | 18 × 3 × 7 in |
Industrial Valves:
Available in:
- Manual and Pneumatic configuration
- Flanges in KF, ISO, and CF configuration
- Manual valve size up to 6 in; Pneumatic size up to 24 in
Specifications:
- Vacuum range: 1 x 10-9 Torr
- Leak test: 1 x 10-9 atm cc/sec of He
- Bake temperature: 80-120 oC Fluctuating
- Life: 100,000 Cycle
- Seal: Viton (FKM)
- Time from open-close: < 1.5 sec
- Position Indicator: 28 VDC or 115 VAC
- Material: Stainless Steel
Semiconductor Valves:
Available in:
- Manual and Pneumatic configuration
- Flanges in KF, ISO, and CF configuration
- Manual valve size up to 6 in; Pneumatic size up to 24 in
Specifications:
- Vacuum range: 1 x 10-10 Torr
- Leak test: 1 x 10-10 atm cc/sec of He
- Bake temperature: 200 oC
- Life: 1M Cycle
- Time from open-close: < 1.5 sec
- Position Indicator: 28 VDC or 115 VAC
- Material: Stainless Steel
