FHV Series High Voltage Electrical Feedthroughs

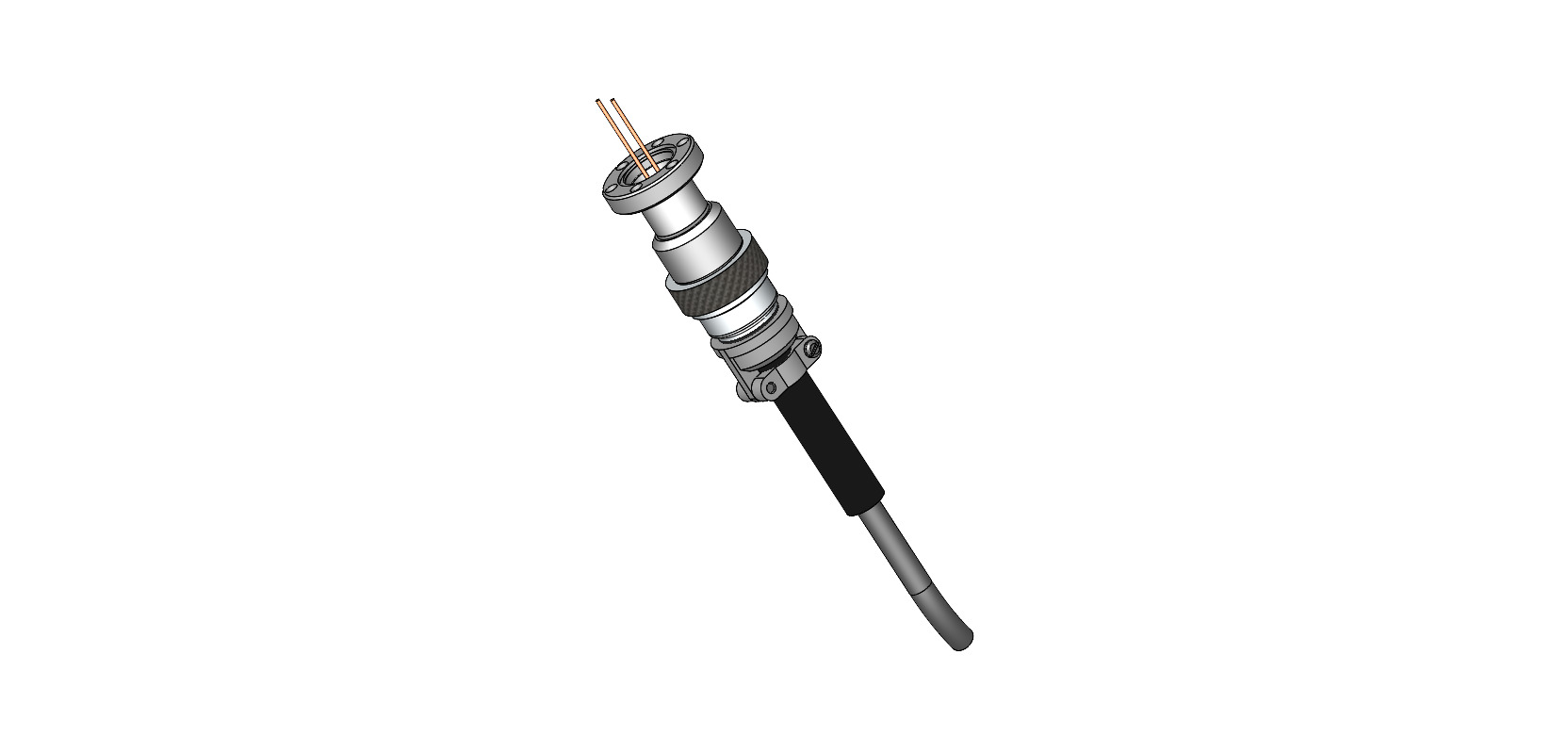

The FHV series feedthroughs provides HV access to the vacuum chamber. They include single or dual conductor models with mating exterior connector.
| Model | Flange OD | Conductors | Max Voltage | Max Current |
|---|---|---|---|---|
| FHV.5-133-2 | 1.33″ OD | 2 | 500 VDC | 10 A |
| FHV3-133-2 | 1.33″ OD | 2 | 3,000 VDC | 15 A |
* These voltage ratings are for below 10-4 Torr
