ISO

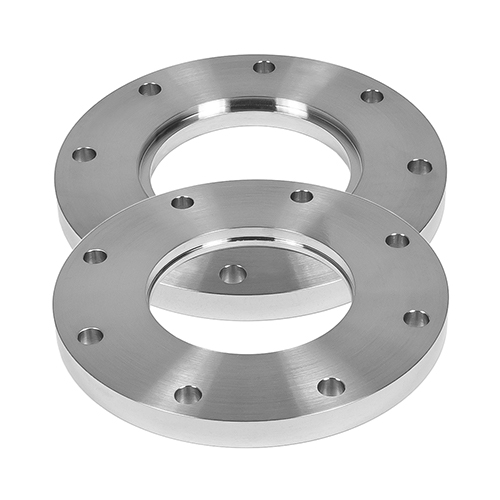

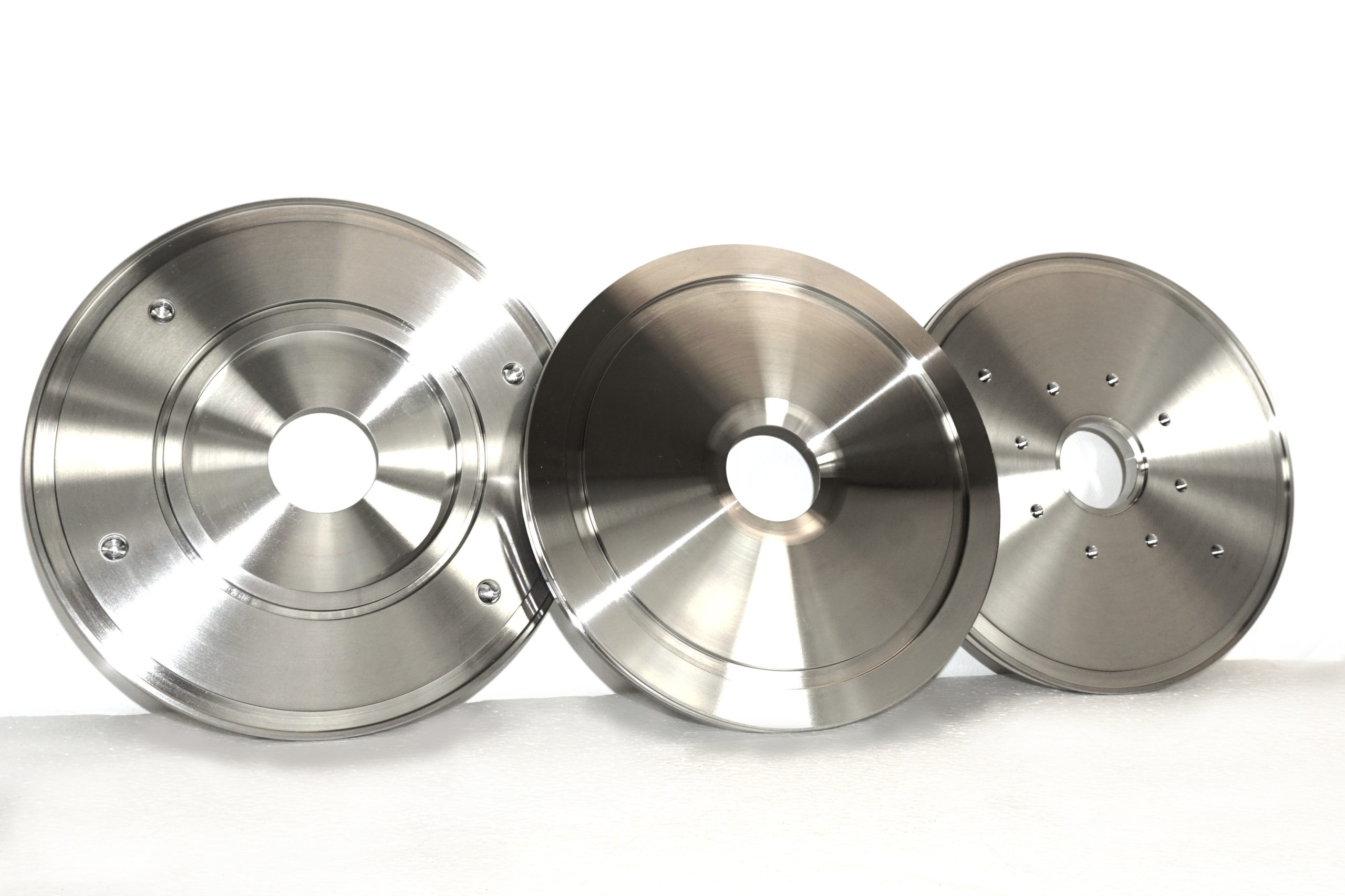

Thermionics ISO flanges provide reliable, repeatable sealing for ultra-high vacuum (UHV) and high-vacuum systems in research, manufacturing, and analytical applications. Designed to meet ISO 1609 and related standards, these flanges offer quick, secure assembly using a centering ring and clamp system, reducing installation and maintenance time. ISO flanges are ideal for applications requiring frequent assembly/disassembly, large-diameter connections, or compatibility between different vacuum components. Proven in both laboratory and industrial environments, Thermionics ISO flanges deliver the leak-tight performance required for demanding vacuum operations.

Add to quote
Contact Sales

Downloads


ISO Flanges Fittings And Hardware Electron Beam Gun Chambers And Accessories Custom Download Icon

Thermionics ISO flanges provide reliable, repeatable sealing for ultra-high vacuum (UHV) and high-vacuum systems in research, manufacturing, and analytical applications. Designed to meet ISO 1609 and related standards, these flanges offer quick, secure assembly using a centering ring and clamp system, reducing installation and maintenance time. ISO flanges are ideal for applications requiring frequent assembly/disassembly, large-diameter connections, or compatibility between different vacuum components. Proven in both laboratory and industrial environments, Thermionics ISO flanges deliver the leak-tight performance required for demanding vacuum operations.

Features

  • Manufactured to ISO 1609 standards for full compatibility

  • Suitable for high-vacuum and UHV service

  • Available in sizes from ISO-63 to ISO-500

  • Quick-clamp assembly for faster installation

  • Compatible with elastomer or metal seals

  • Ideal for systems requiring frequent access

Model No. Flange Size Tube

Size A B C

108064-01 16 1/2” .50 (12.7) .065 (1.7) .50 (12.7)

108064-02 16 3/4” .75 (19.1) .065 (1.7) .50 (12.7)

108064-03 25 1” 1.00 (25.4) .065 (1.7) .50 (12.7)

108064-04 40 1 1/2” 1.50 (38.1) .065 (1.7) .75 (19.1)

108064-05 50 2” 2.00 (50.8) .065 (1.7) .75 (19.1)

Model No. Flange Size Tube

Size A B C

108065-01 16 1/2” .50 (12.7) .065 (1.7) 1.575 (40)

108065-02 16 3/4” .75 (19.1) .065 (1.7) 1.575 (40)

108065-03 25 1” 1.00 (25.4) .065 (1.7) 1.575 (40)

108065-04 40 1 1/2” 1.50 (38.1) .065 (1.7) 1.575 (40)

108065-05 50 2” 2.00 (50.8) .065 (1.7) 1.575 (40)

Model No. Flange Size Tube

Size A B

108087-01 16 1/2” .51 (12.9) .56 (14.2)

108087-02 16 3/4” .76 (19.3) .56 (14.2)

108087-03 25 1” 1.01 (25.7) .47 (11.9)

108087-04 40 1 1/2” 1.51 (38.4) .50 (12.7)

108087-05 50 2” 1.62 (41.1) .62 (15.7)

Model No. Flange Size A B

108069-01 16 .50 (12.7) .75 (19.1)

108069-02 16 .75 (19.1) .75 (19.1)

108069-03 25 1.00 (25.4) .75 (19.1)

108069-04 40 1.50 (38.1) 1.00 (25.4)

108069-05 50 2.00 (50.8) 1.00 (25.4)

Model No. Flange Size A

108063-02 16 .19 (4.8)

108063-04 25 .19 (4.8)

108063-06 40 .19 (4.8)

108063-07 50 .19 (4.8)

Dimensions in inches (millimeters)
