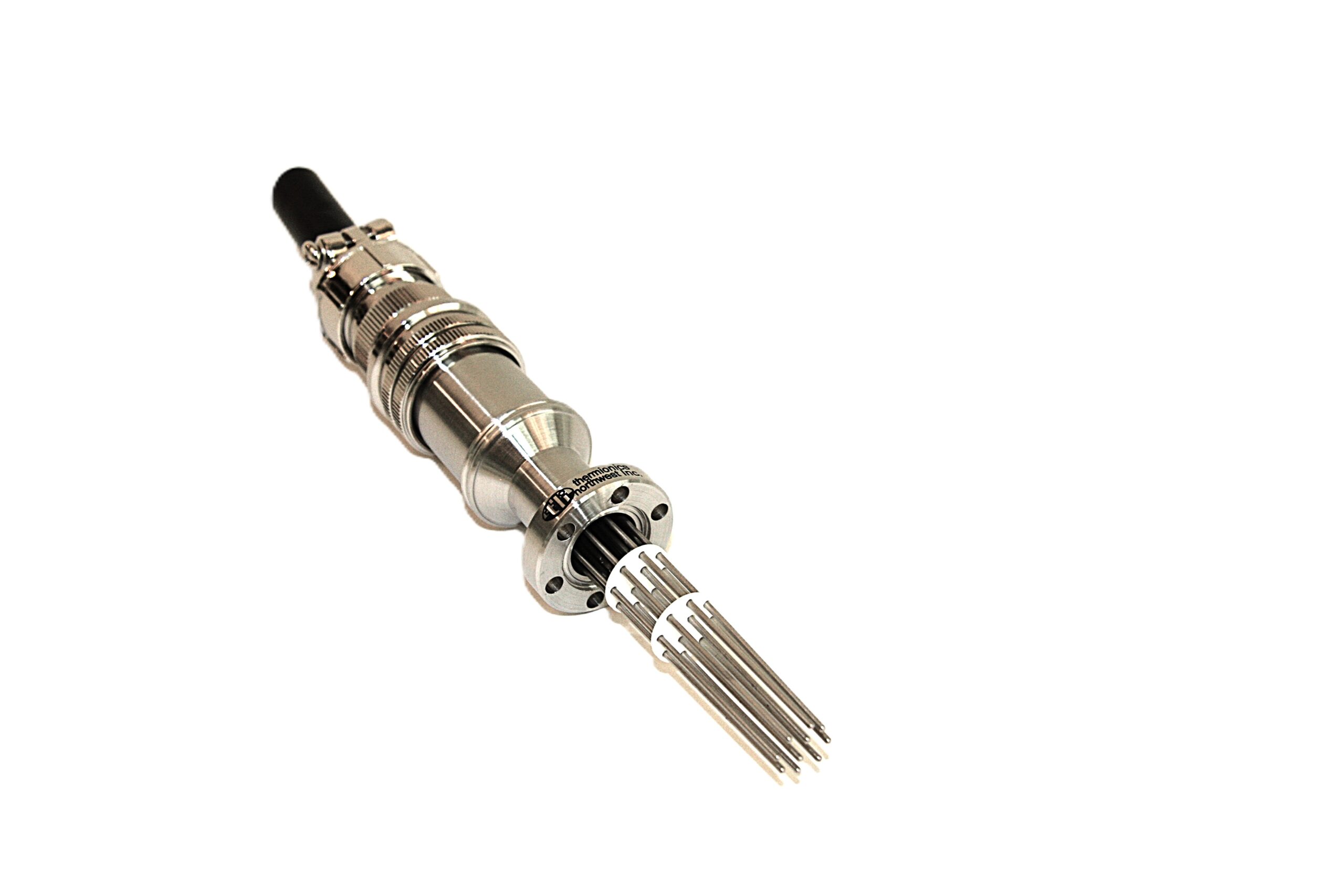

FEP Multi-Conductor Instrumentation Feedthroughs
FEP series feedthroughs provide UHV feedthrough access for multi-conductor instrumentation. All units are supplied with external connector and ceramic interior spacer (except 8 tube).
All FEP conductors are rated at 500 VAC or 700 VDC with a maximum current rating of 7 amps per solid pin and 2 amps per tubular pin.
| Model | Flange OD | Conductor Type | Number of Conductors |
|---|---|---|---|
| FEP-275-8T | 2.75″ OD | Tubular | 8 |
| FEP-133-10 | 1.33″ OD | Solid | 10 |
| FEP-275-10 | 2.75″ OD | Solid | 10 |
| FEP-275-20 | 2.75″ OD | Solid | 20 |
