Evaporation Source
Series: Hanks

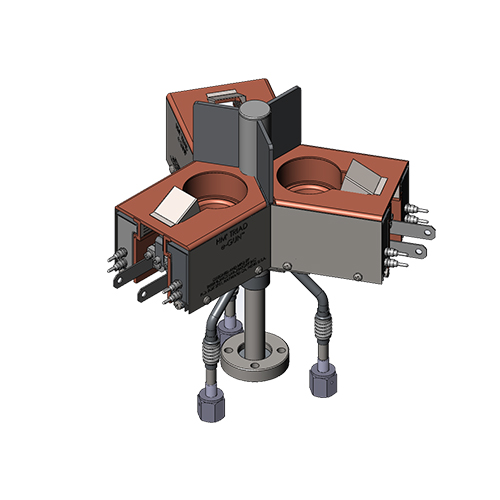

Hanks HM² Triad 10kW HM2 series three (3) pocket e-Gun™, 10cc, 15cc, and 40cc crucible. Minimum bottom mount flange size is 16.5″ O.D. Cf flange
Thermionics introduces Triad pocket 6 and 10 kW HM2
e-Guns. The HM2 Triad series provides unique modular magnetic design producing a more efficient electron beam. The Hyper-Unimelt 200 Hz sweep eliminates tunneling and source material eruptions. Plug-in emitter assemblies and sweep coil assemblies make the sources easier to service. Easy filament alignment, more efficient electron collimation, minimal filament distortion and elimination of electron trials. Perfect for co-evaporation!
Features
Elimination of beam curl
UHV rated sweep coils included with source (200 Hz)
Elimination of pole pieces
Easy filament alignment
More efficient electron collimation
Minimal filament distortion
Elimination of electron tails
Specifications
Operating Pressure Below 5 x 10-5 Torr is desirable for best operation
Power Output -7.5 to -10 kV
Filament 12 VAC 60A
Maximum Power 10 kW
Cooling Water 9 gpm
Pressure Differential 50 psi minimum
Maximum Bakeout Temp. 230°C
Crucible Volume 10, 15 or 40 cc
Ordering Information
Description Model No.
10 cc HM2 Triad series e-Gun, 6 kW – T0610
10 cc HM2 Triad series e-Gun, 10 kW – T1010
15 cc HM2 Triad series e-Gun, 10 kW – T1015
40 cc HM2 Triad series e-Gun, 10 kW – T104
