| Mounting-Flange | 133 |
|---|---|
| Probe-Length | CL, Standard 2.75 |
| Drive | Manual, MS, MS-W, SCC |
| Additional Options | MC, RLS, RLSC |

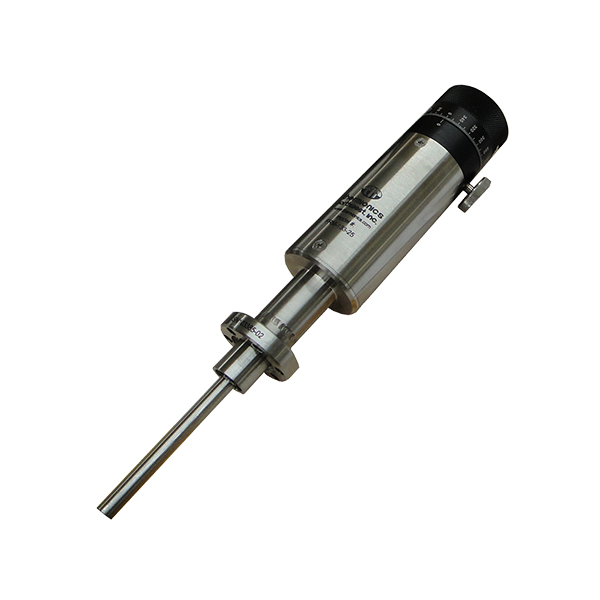

FRM-25 Series
- 1/4” O.D. output shaft
- Bellows sealed
- Maximum bakeout temperature: 200°C
- 1.33” O.D. flange with position lock
- Torque limit: 150 oz-in
- Maximum speed: 300 rpm
- Uses 7 ball bearings
- 2° graduations. 0° to 360°

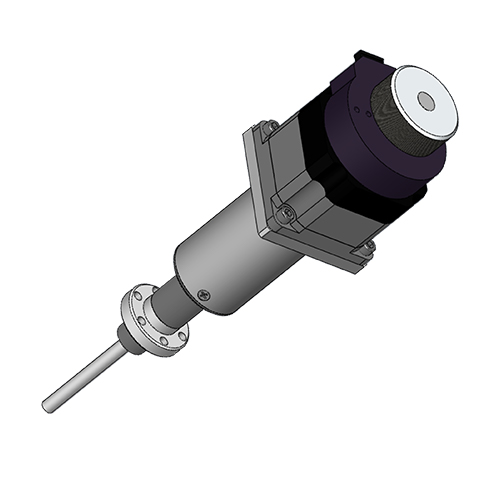

/MS Stepping or /MY Synchronous Motorized Rotary Feedthrough
- With integral motor drive
- 1.33” O.D mounting flange
- 50 oz-in holding torque (higher torque motors available)
- Low inertia design
- Manual knob
- Without motor controller
/PNM
- 90° rotation
- 180° or 270° rotations available
- Adjustable stops available
/Air Control Valve (For model FRM-133-25/PNM)
- Mounted to feedthrough
- Valve-to-rotary actuator plumbing installed
- Control voltage 24 VDC standard or per customer requirements
- With flow controls, both directions
