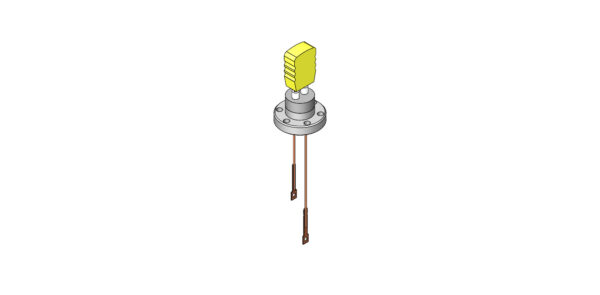

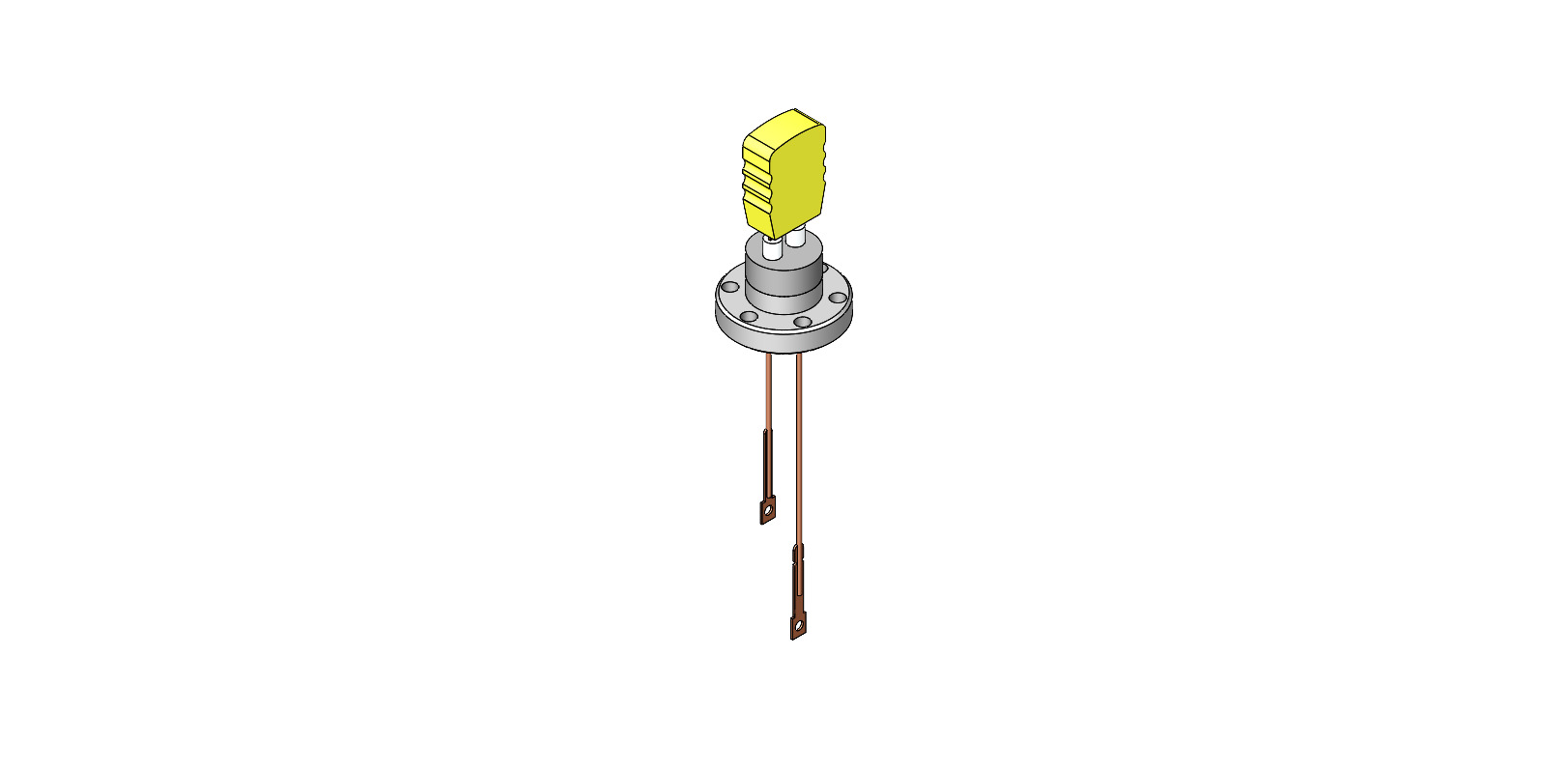

Thermocouple Instrumentation Feedthroughs
FETC series feedthroughs provide UHV feedthrough access for thermocouple instrumentation. All units are supplied with external connectors.
Standard FETC series feedthroughs are supplied with a 1.33″ OD mounting flange and are available with 1 or 2 thermocouple pairs.
Connectors
- PMC-150 Internal Connector
- OFE copper, nickel plated
- 150 A
- 450°C max. temperature
- For 1/4″ OD conductor
- Push-on connector
- CMC-150 Internal/External Connector
- OFE copper
- 450 A
- 450°C max. temperature
- For 3/4″ OD to 1/4″ OD conductor
- Clamp-on connector
- FEP-10C Connector
- External connector
- 10 pin with cable grip
- Replacement for connectors supplied with FEP-275-10 feedthroughs
- FEP-20C Connector
- External connector
- 20 pin with cable grip
- Replacement for connectors supplied with FEP-275-20 feedthroughs
- PLC-100 Internal Push-on Connectors
- For pins 0.032″ diameter or less
- 200°C maximum temperature in vacuum
- 10 amps maximum current
- PLC-150 Internal Push-on Connectors
- For pins 0.062″ dia. or less
- 200°C max. temperature in vacuum
- 15 amps maximum current
