HC Series 6 kW+ Interchangeable Crucible e-Gun™

Evaporation Source
Series: HC-IC

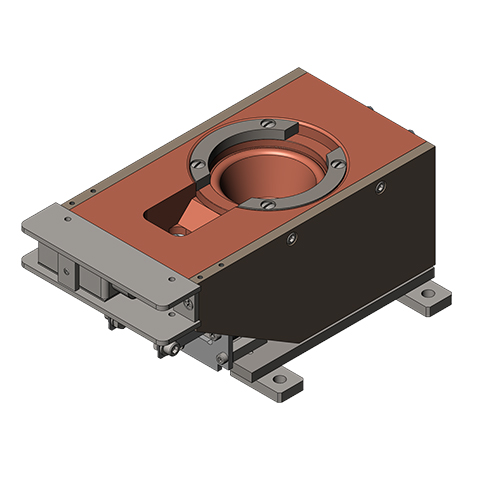

An interchangeable crucible all metal-sealed e-Gun™ that offers  flexibility with 7cc, 10cc, 15cc, 25cc, and 40cc crucible sizes.

Add to quote
Contact Sales

Downloads

Flyer

HCF INTERCHANGEABLE SINGLE POCKET e-GUN Flyer Custom Download Icon

Drawing

113934 HCF e-GUN(TM) 90 DEGREE H2O FITTINGS INTERCHANGEABLE CRUCIBLE OUTLINE DRAWING Custom Download Icon

STEP-FILES

113934-40 HCF e-GUNTM 90 DEGREE H2O FITTINGS INTERCHANGEABLE CRUCIBLE 40cc.step Custom Download Icon

113934-10 HCF 90 Degree H2O Fittings 6kW Interchangeable Crucible 10cc High Vacuum Electron Beam Gun Single Pocket STEP Custom Download Icon

113934-15 HCF 90 Degree H2O Fittings 6kW Interchangeable Crucible 15cc High Vacuum Electron Beam Gun Single Pocket STEP Custom Download Icon

113934-25 HCF 90 Degree H2O Fittings 6kW Interchangeable Crucible 25cc High Vacuum Electron Beam Gun Single Pocket STEP Custom Download Icon

Instructions

e-Gun Operation Instructions Custom Download Icon

Ground Setup

Ground Setup Document Custom Download Icon

Evaporation Source
Series: HC-IC

 6kW+ e-Gun™

The HC-IC series e-Gun™ is an interchangeable crucible all metal-sealed e-Gun that offers  flexibility with 7cc, 10cc, 15cc, 25cc, and 40cc crucible sizes.

Specifications:

  • Standard Interchangeable Crucible Volumes: 7cc, 10cc, 15cc, 25cc, and 40cc
  • Maximum Power: 10 kW
  • Emission Voltage -6 kV to -10 kV
  • Filament: 700W
  • E-Beam Deflection: 270°
  • Beam Spot size: .25″ dia., tight beam
  • Water 3 gpm @ 60°F (15.6°C)
  • High Voltage Range: -6 kV to -10 kV
  • Vacuum range: HV 1×10-8 Torr
  • Weight: 14.6 lbs.

Features/Benefits:

  • Self-contained deflection assembly
  • Effective H2O flow
  • Designed for high operating power
  • Simple installation with superb vacuum compatibility
