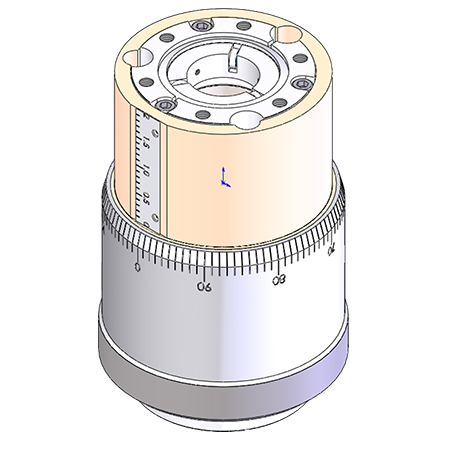

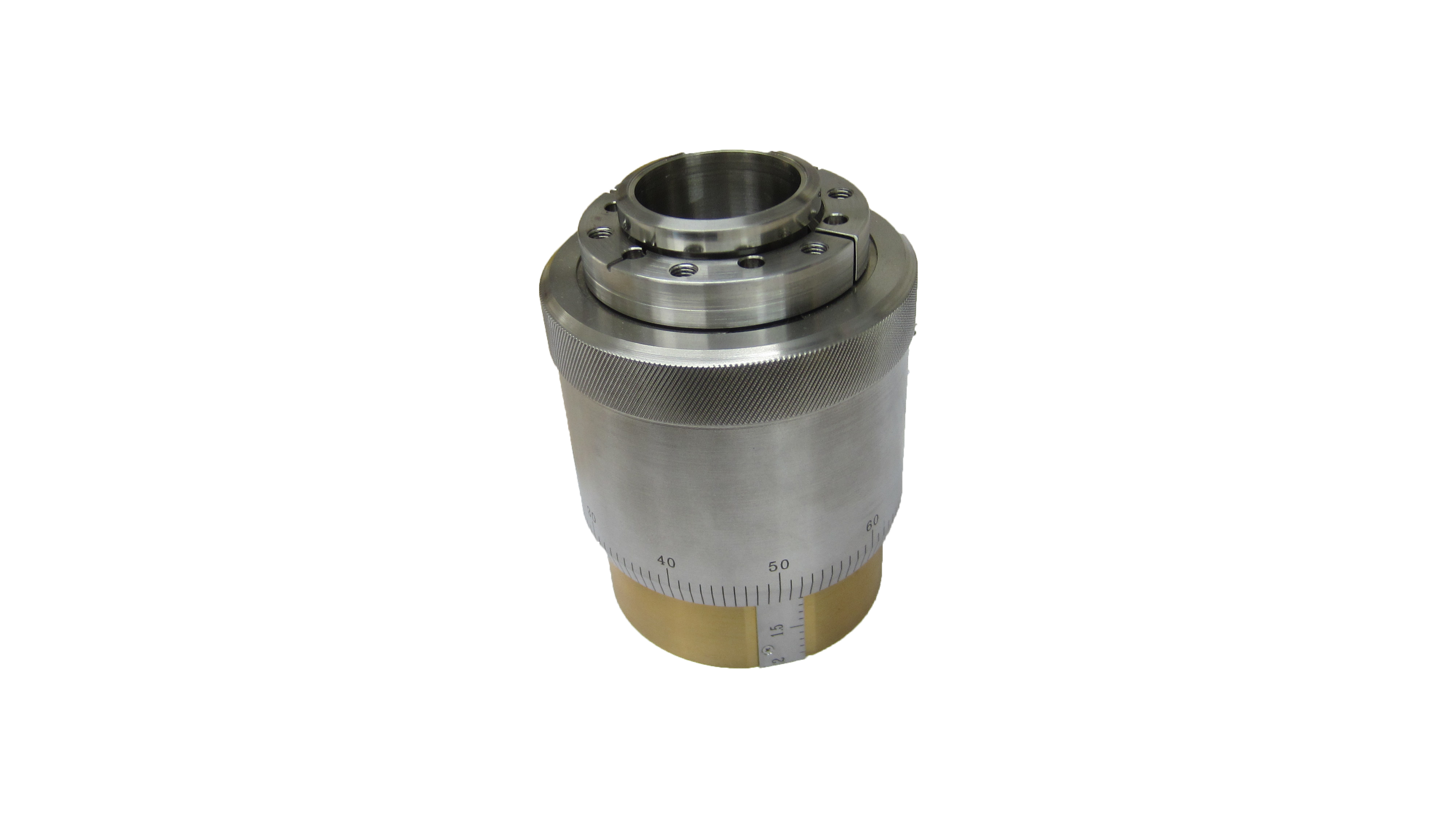

JS Series Thimble Jacking Stage
Thimble jacking stages are precision linear motion devices with a clear bore flange/bellows assembly. A knurled Acme screw threaded collar actuates the linear drive. The top flange slides up and down on three stainless steel guide pins maintaining a ridged mount.
Thimble jacking stages are ideal for precision linear probe positioning of distances less than 2″. Rotating the Acme screw threaded collar jacks the top flange with a range of one or two inches. One rotation of the Acme threaded collar moves the top flange 0.1″ (0.001″ per gradation).
- 2.75″ O.D. rotatable top flange
- 2.75″ O.D. base flange
- 1.39″ I.D. bellows
- Bakeable to 200°C
- 0.001″ resolution per gradation
- Available with optional guide bearing
