EC SERIES

The EC series XYZ manipulators provide high precision positioning at minimum cost, accommodating 1.39″ and 1.87″ I.D. bellows, up-to 6″ stroke and up to 10 pounds of payload capacity.

1 in stock

Add to quote
Contact Sales

Downloads

Manipulator Request Worksheet

Manipulator Specification Worksheet Custom Download Icon

PDFs

SLO EC-1.87-B600C-T275TM-2-SS25 Small Bore Manipulators Motion Sample Handling Custom Download Icon

SLO EC-1.87-B600CM-T275T-2-SS01\Small Bore Manipulators Motion Sample Handling Custom Download Icon

SLO EC-B600C-T275T-1.39-2 Small Bore Manipulators Motion Sample Handling Custom Download Icon

SLO EC-1.39-B275C-T275T-2-SS01_MS-LS-EDR-XZ Small Bore Manipulators Motion Sample Handling Custom Download Icon

SLO EC-1.39-B275C-T275T-4 MS-LS Small Bore Manipulators Motion Sample Handling Custom Download Icon

STEP-FILES

EC-1.39-B600C-T275T-2-SS01 Small Bore Manipulators Motion Sample Handling Custom Download Icon

EC-1.39-B600MC-T275T-2-SS01 Small Bore Manipulators Motion Sample Handling Custom Download Icon

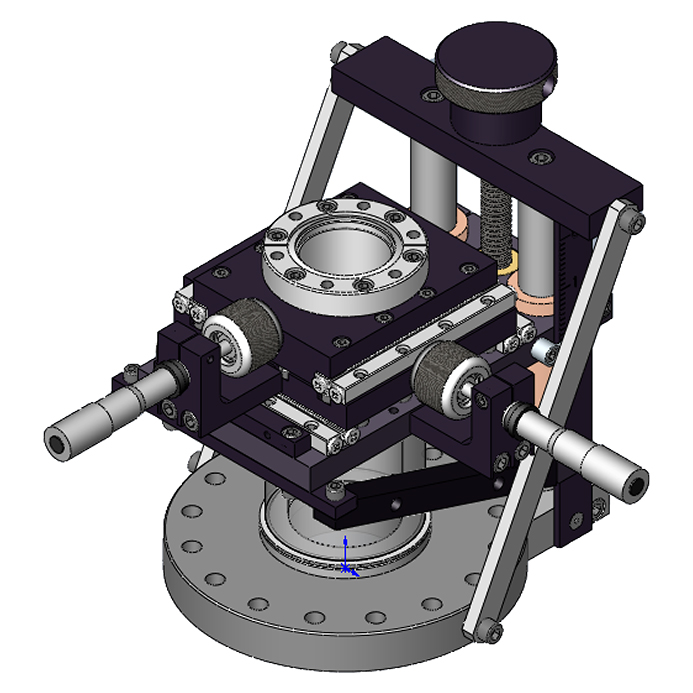

EC-1.87-B600C-T275TM-2-SS25 Small Bore Manipulators Motion Sample Handling Custom Download Icon

EC-1.87-B600CM-T275T-2-LMO1 Small Bore Manipulators Motion Sample Handling Custom Download Icon

EC-B600C-T275T-1.39-2 AP214 Small Bore Manipulators Motion Sample Handling Custom Download Icon

EC-1.39-B275C-T275T-2-SS01_MS-LS-EDR-XZ Small Bore Manipulators Motion Sample Handling Custom Download Icon

EC-1.39-B275C-T275T-2-SS01 Small Bore Manipulators Motion Sample Handling Custom Download Icon

EC-1.39-B275C-T275TM-2 SS25 Small Bore Manipulators Motion Sample Handling Custom Download Icon

EC-1.39-B275C-T275TM-4 MM AP214 Small Bore Manipulators Motion Sample Handling Custom Download Icon

EC-B275C-T275T-1.39-4-LM AP214 Small Bore Manipulators Motion Sample Handling Custom Download Icon

EC-B275C-T275TM-1.39-4 AP214 Small Bore Manipulators Motion Sample Handling Custom Download Icon

EC-B275C-T275TM-1.39-4 HMP AP214 Small Bore Manipulators Motion Sample Handling Custom Download Icon

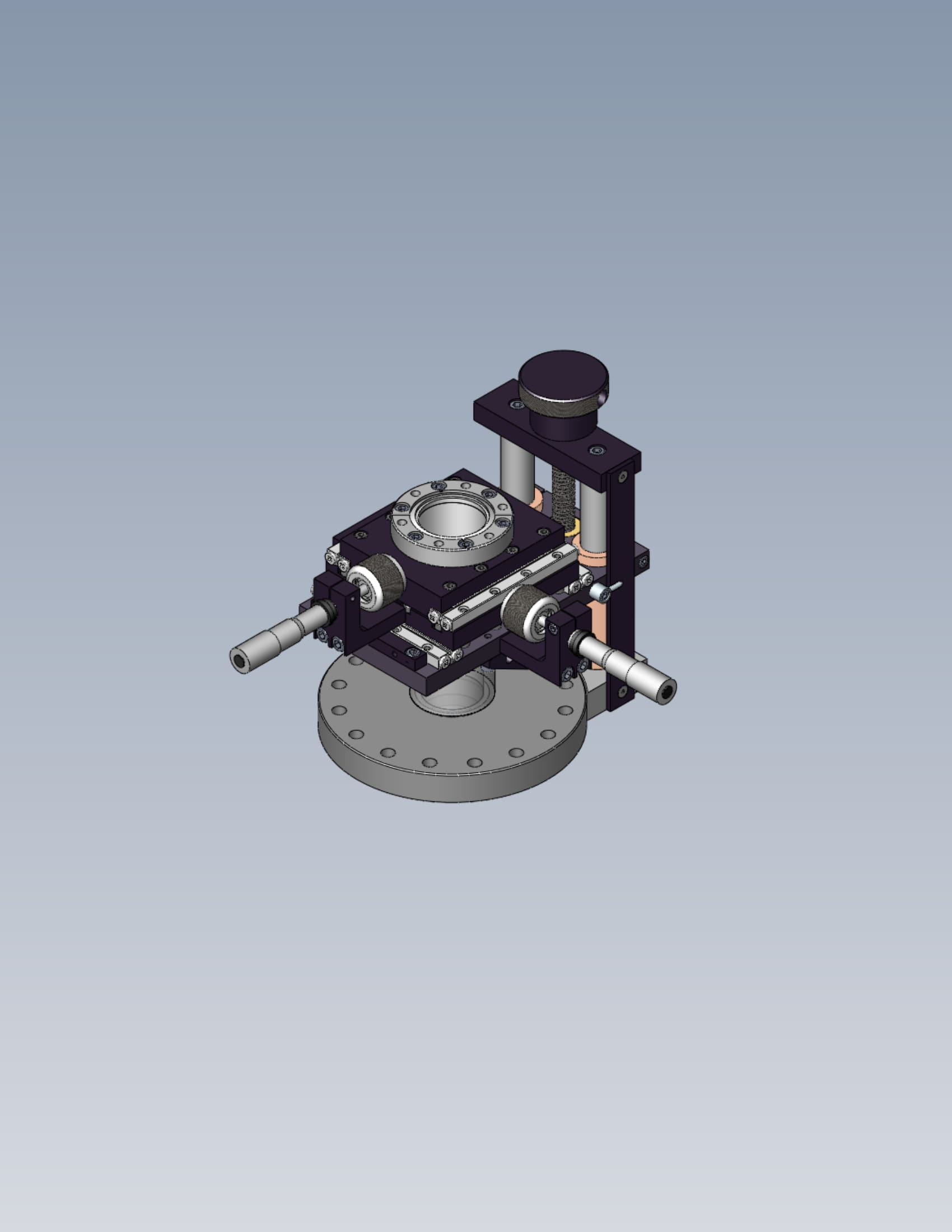

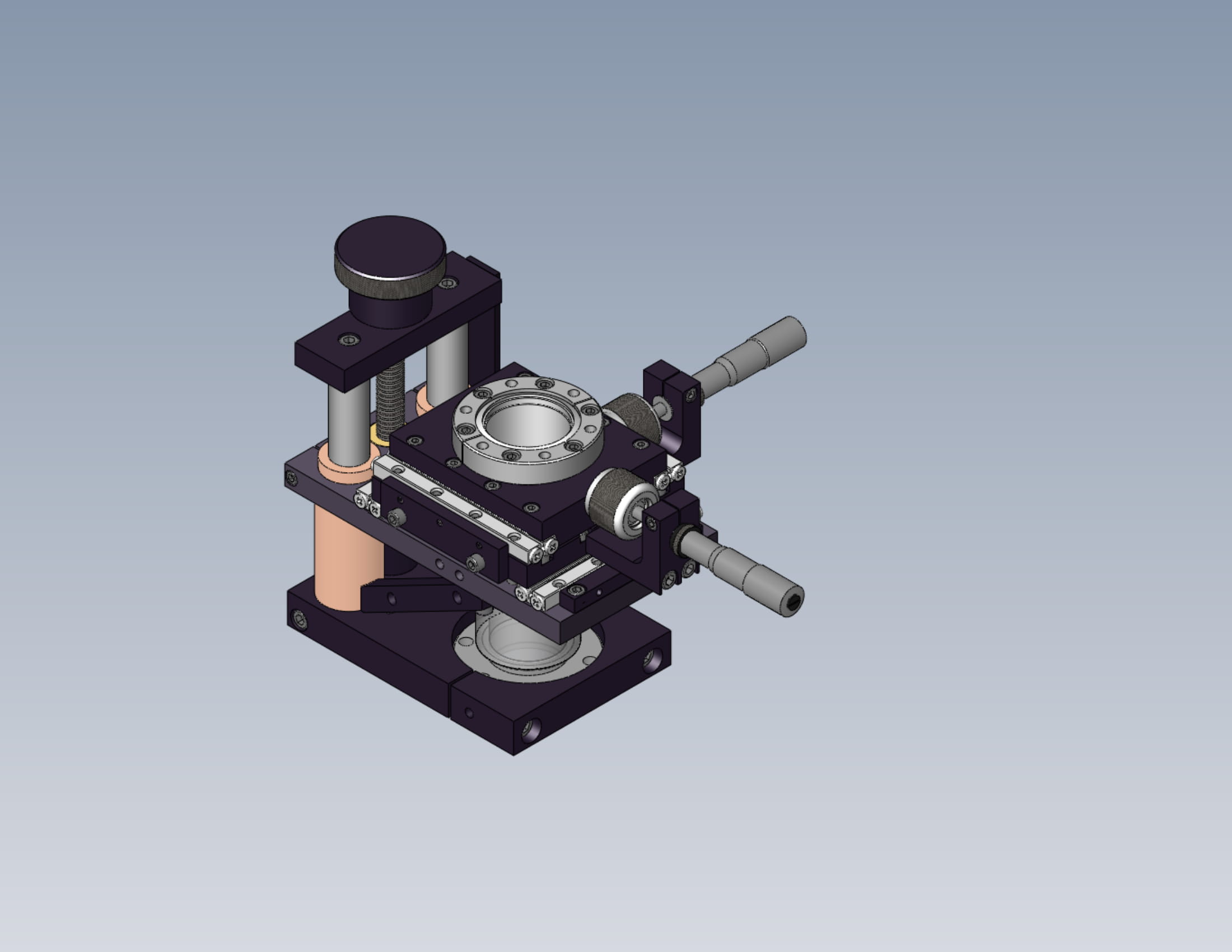

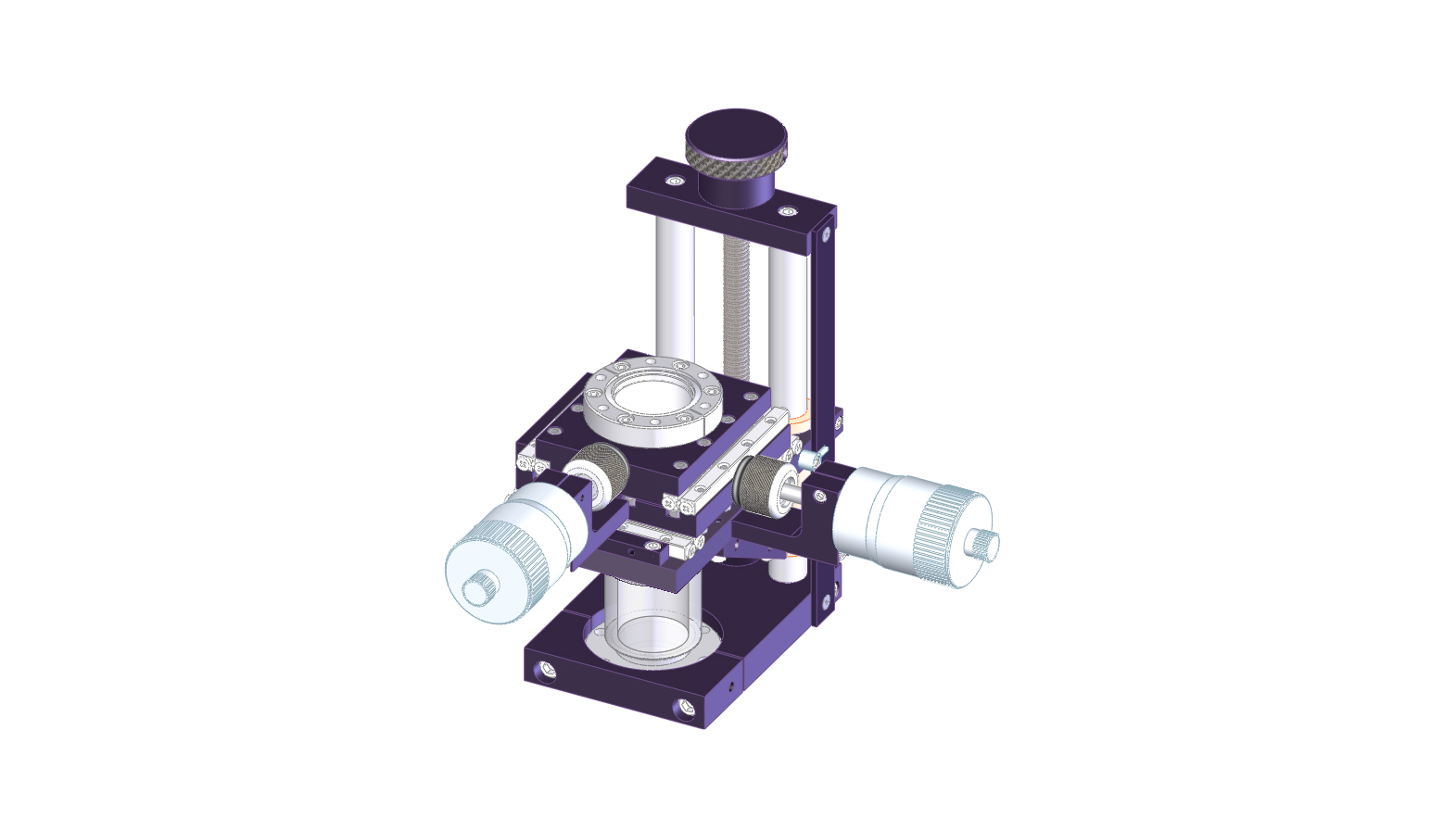

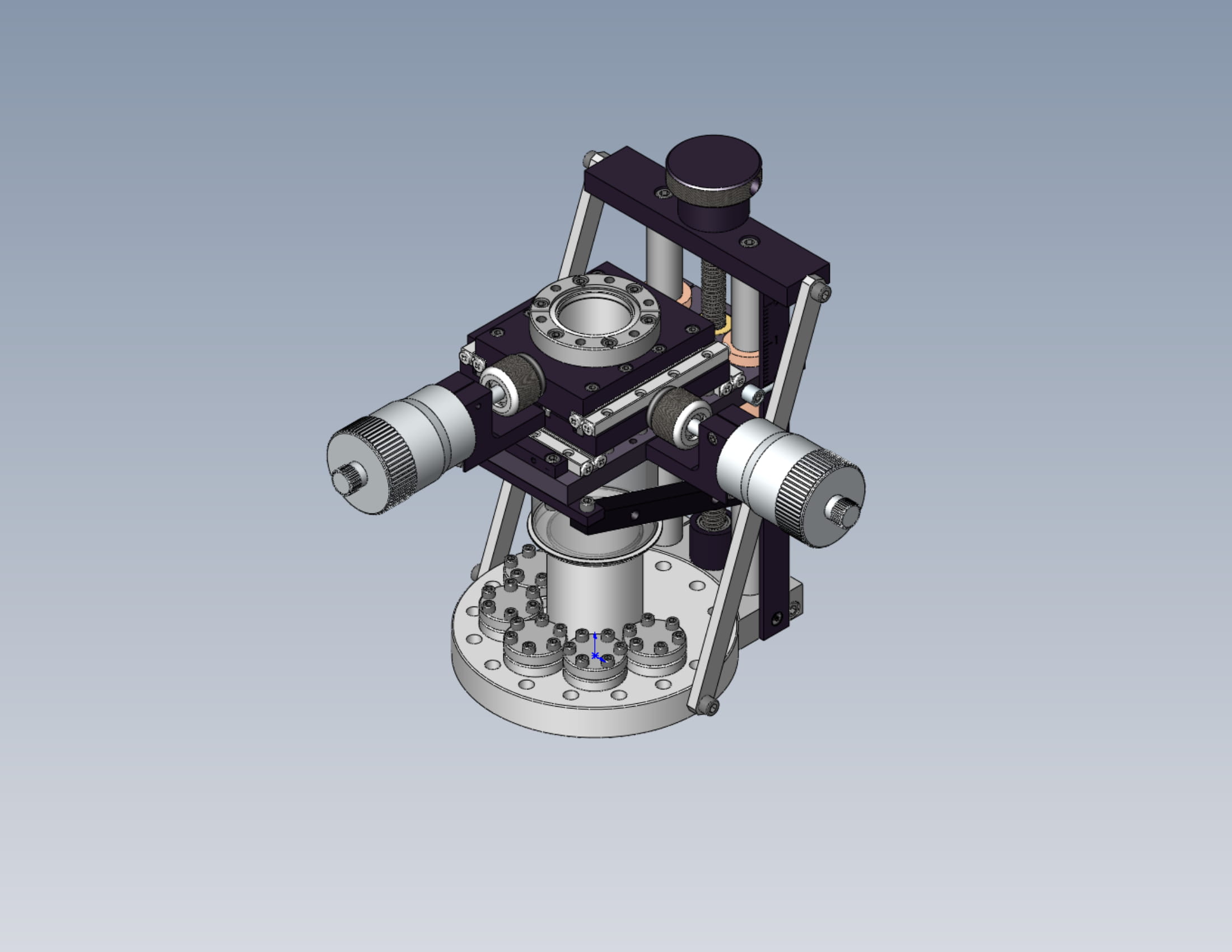

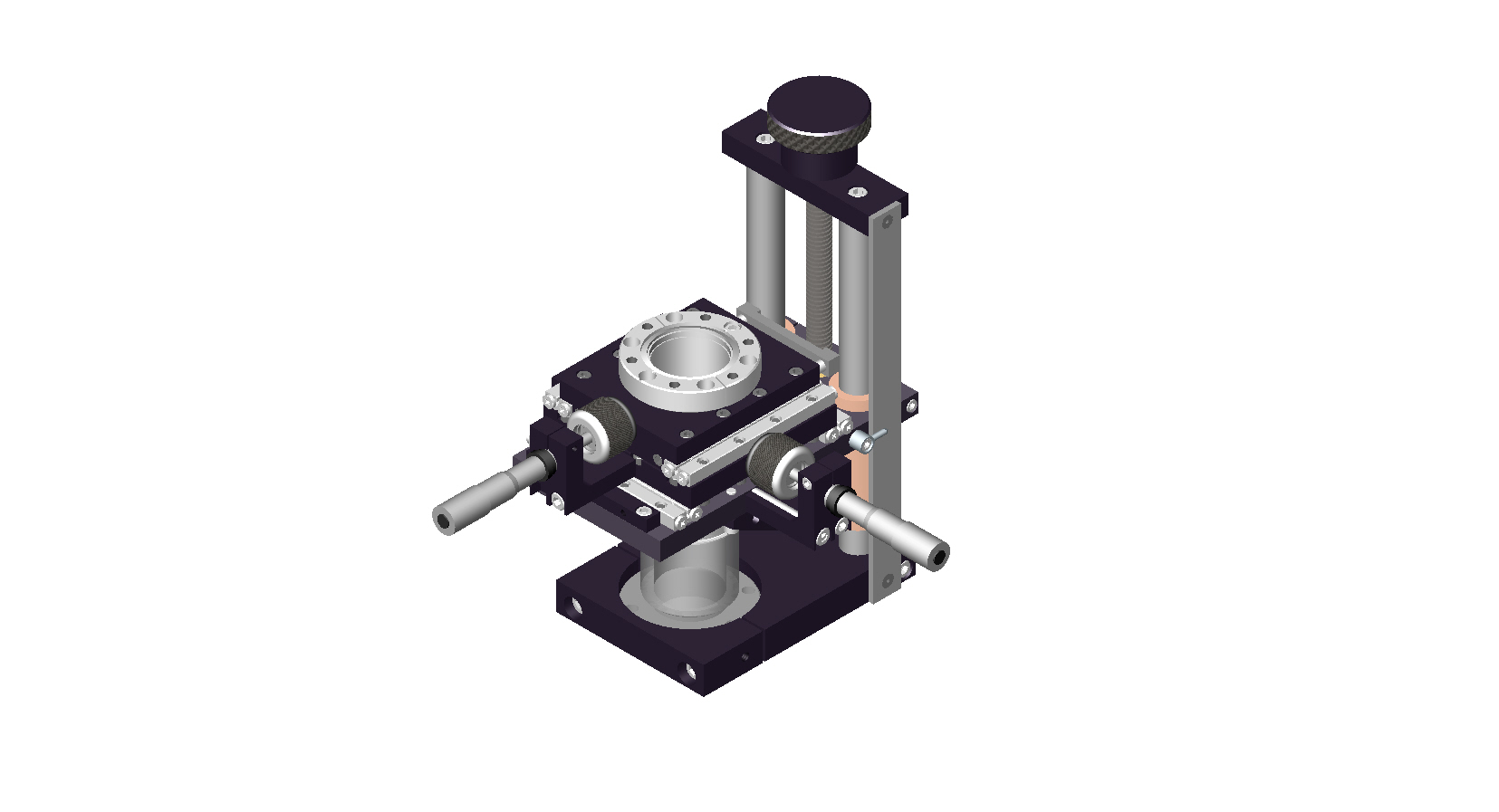

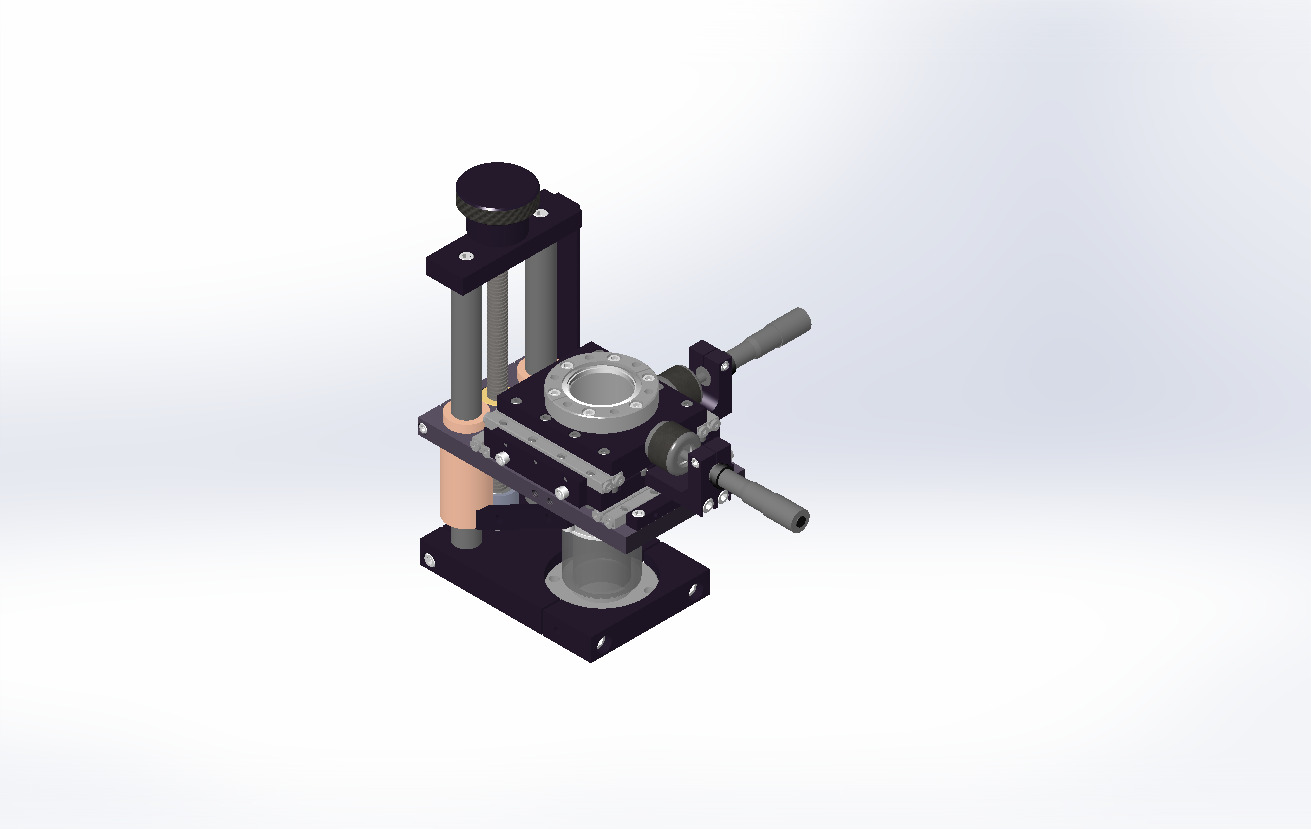

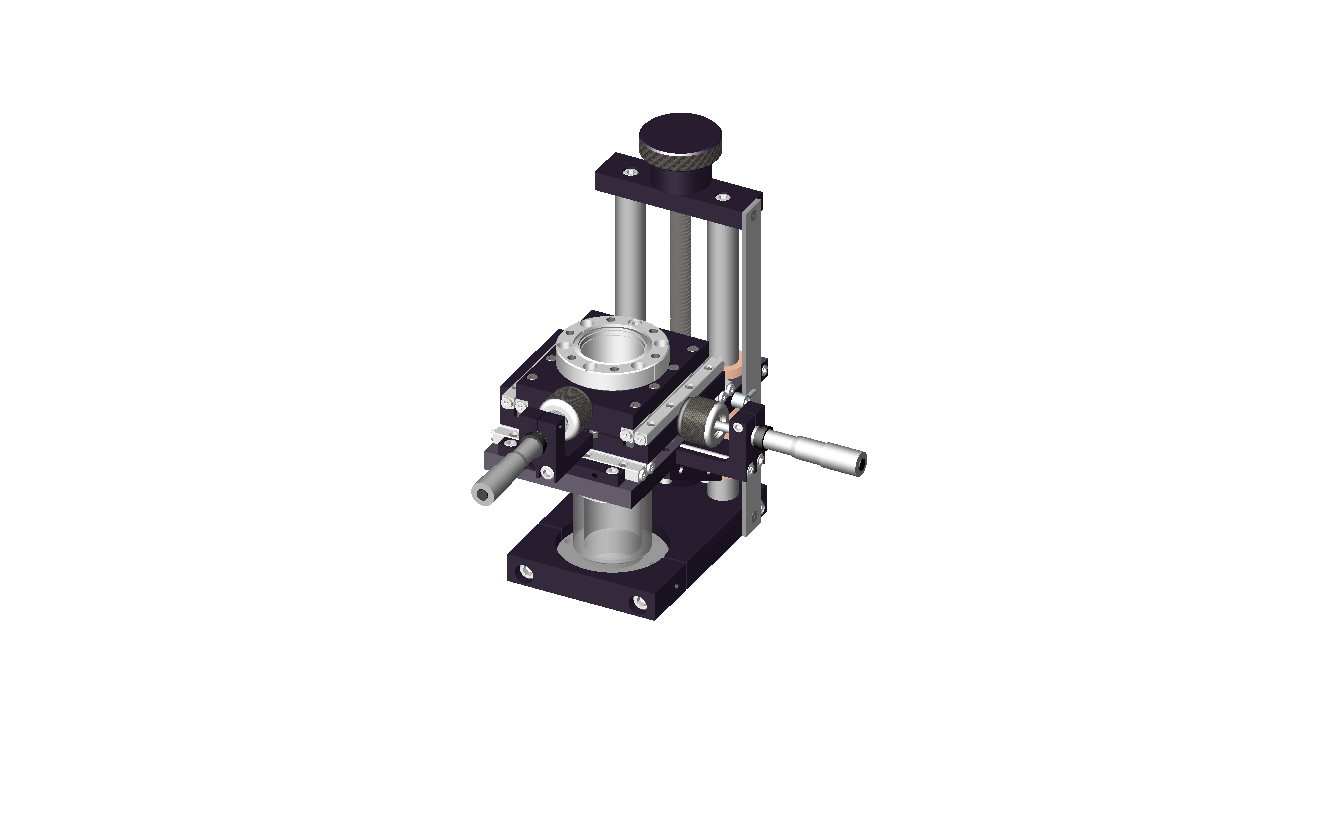

EC Series XYZ Manipulators

The EC series XYZ manipulators provide high precision positioning at minimum cost, accommodating 1.39″ and 1.87″ I.D. bellows, up-to 6″ stroke and up to 10 pounds of payload capacity.

Features

  • Bakeable to 200°C fully assembled; no castings used in construction
  • Hardened steel X and Y cross-roller guides
  • Dual 0.75″ O. D. hardened stainless steel Z guide rods
  • Aluminum stage construction
  • Stainless steel only material exposed to vacuum
  • All position operation

X & Y Axes

  • ±0.5″ X and Y travel, circular pattern, preloaded micrometer-to-stage coupling, 0.001″ micrometer divisions
  • Micrometers bakeable to 200°C

Z Axis

  • 0.100″/turn knob adjust

Specifications

Base Flange O.D.

Bellows
I. D.

Travel
Flange

Z Travel

Model No.
2.75 1.39 2.75 2 EC-B275C-T275T-1.39-2
2.75 1.39 2.75 4 EC-B275C-T275T-1.39-4
2.75 1.39 2.75 6 EC-B275C-T275T-1.39-6

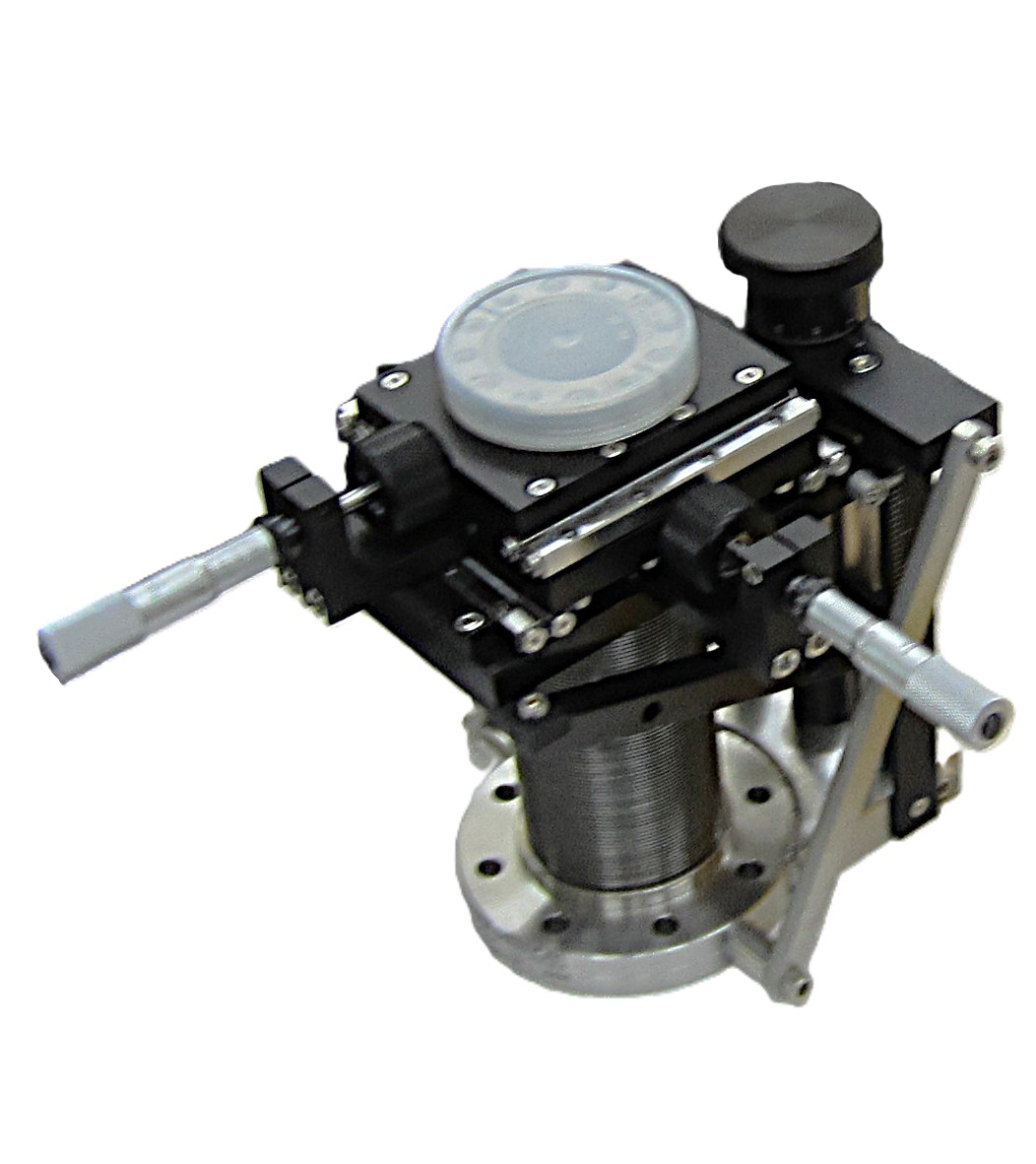

4.5 1.87 2.75 2 EC-B450C-T275T-1.87-2
4.5 1.87 2.75 4 EC-B450C-T275T-1.87-4
4.5 1.87 2.75 6 EC-B450C-T275T-1.87-6

Precision

Axis

Micrometer
Graduation

Resolution

Repeatability

Backlash

Adjustment
X-Y 0.001″ <0.001″ <0.00015″ <0.00015″ Standard
Micrometer
Z 0.0005″ <0.0005″ 0.0005″ 0.0007″ Knob Adjust
X-Y 0.0001″ <0.0001″ <0.00015″ <0.00015″ Optional
Large Micrometer

Configuration   EC-B600C-T275T, EC-B600C-T275TM, EC-B600T-T275T, EC-B600TM-T275TM, EC-B600MC-T275T, EC-B600MC-T275TM, EC-B600MT-T275T, EC-B600MTM-T275TM
Stroke   2, 4, 6
Drive   Small Micrometer, Large Micrometer, MS-LS
Options   HMP, None

Options

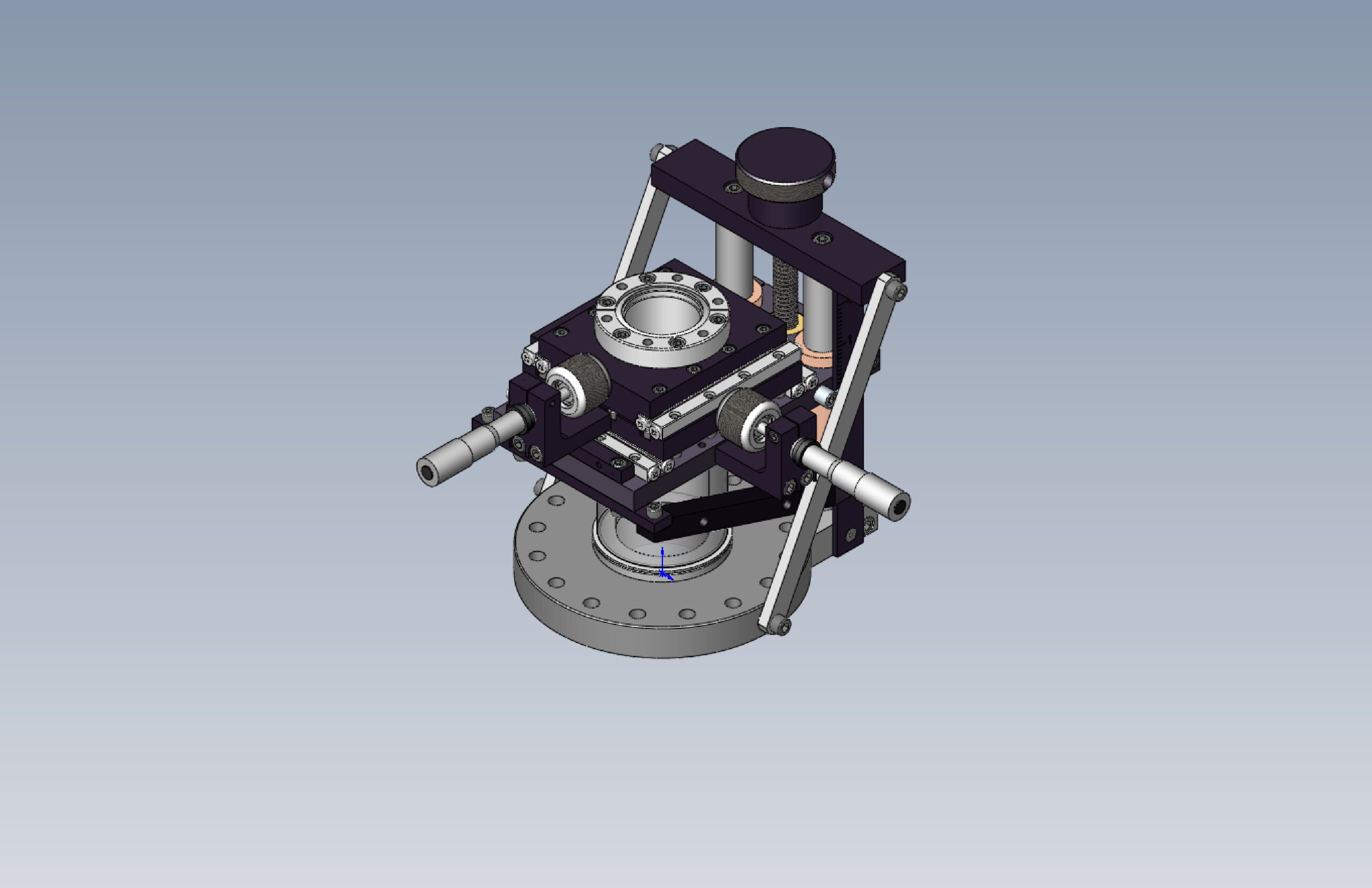

6″ Base Flange –

Model No: -B600C

  • Change base flange to 6.0″ O.D.
  • This option may be ordered with any model

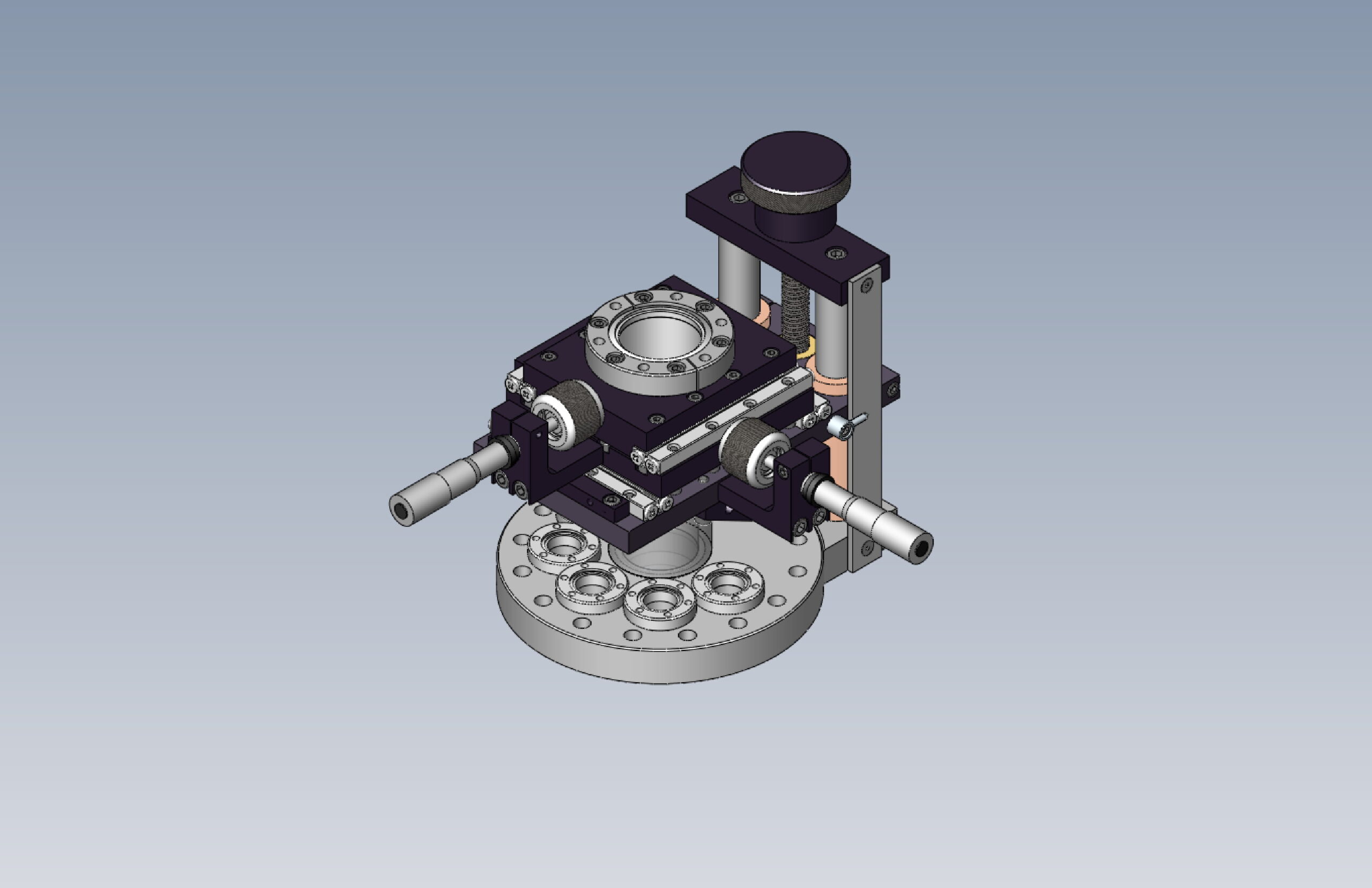

6″ Base Flange with 5 Mini-Ports –

Model No: -B600MC

  • Change base flange to 6.0″ O.D. with 5 mini-ports
  • This option may only be ordered with the 1.39″ I.D. bellows

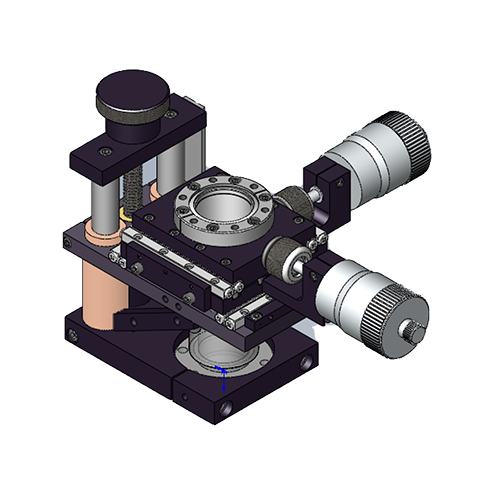

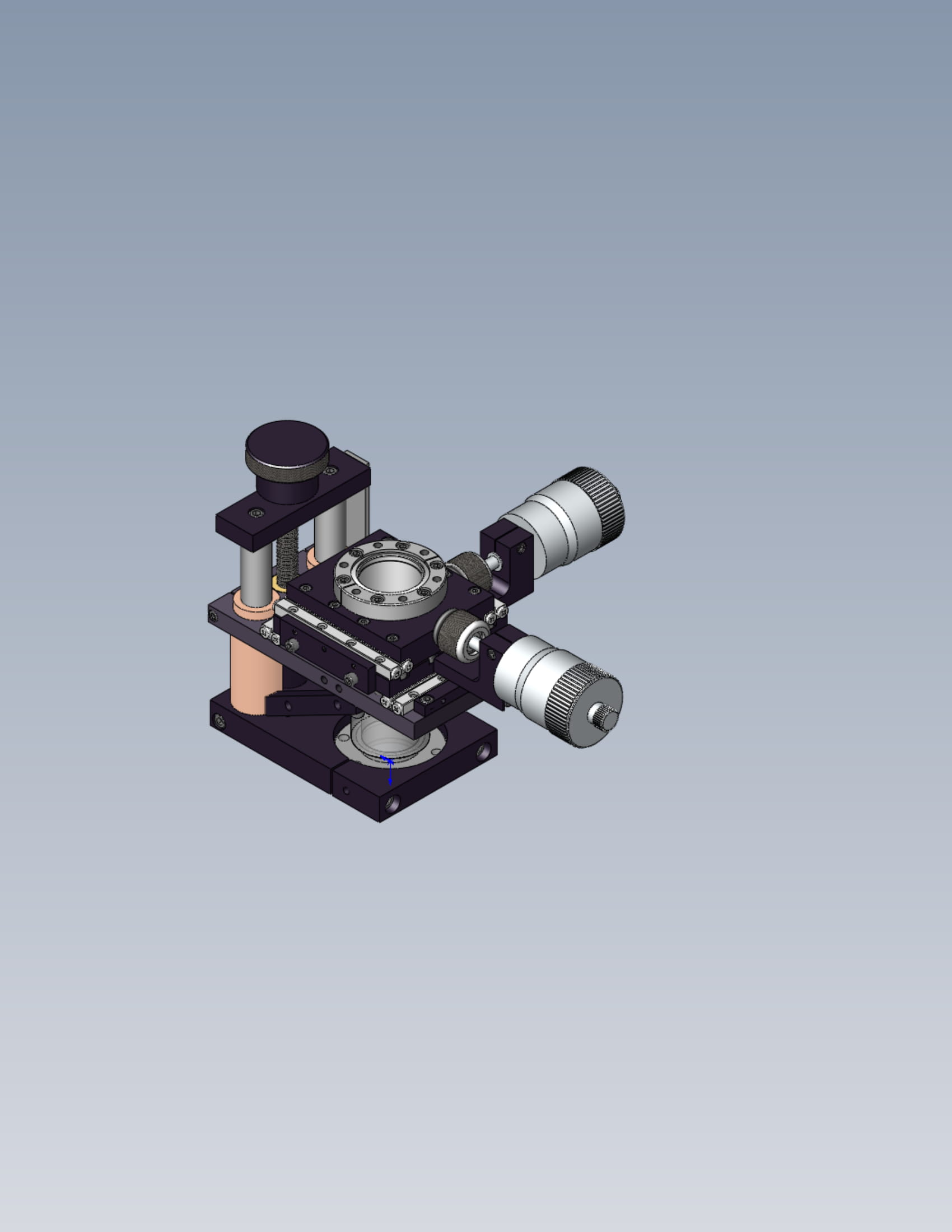

XY Micrometers, ±0.5″ Travel –

Model No: /LM

  • Large micrometers with 0.0001″ divisions
  • Set of two

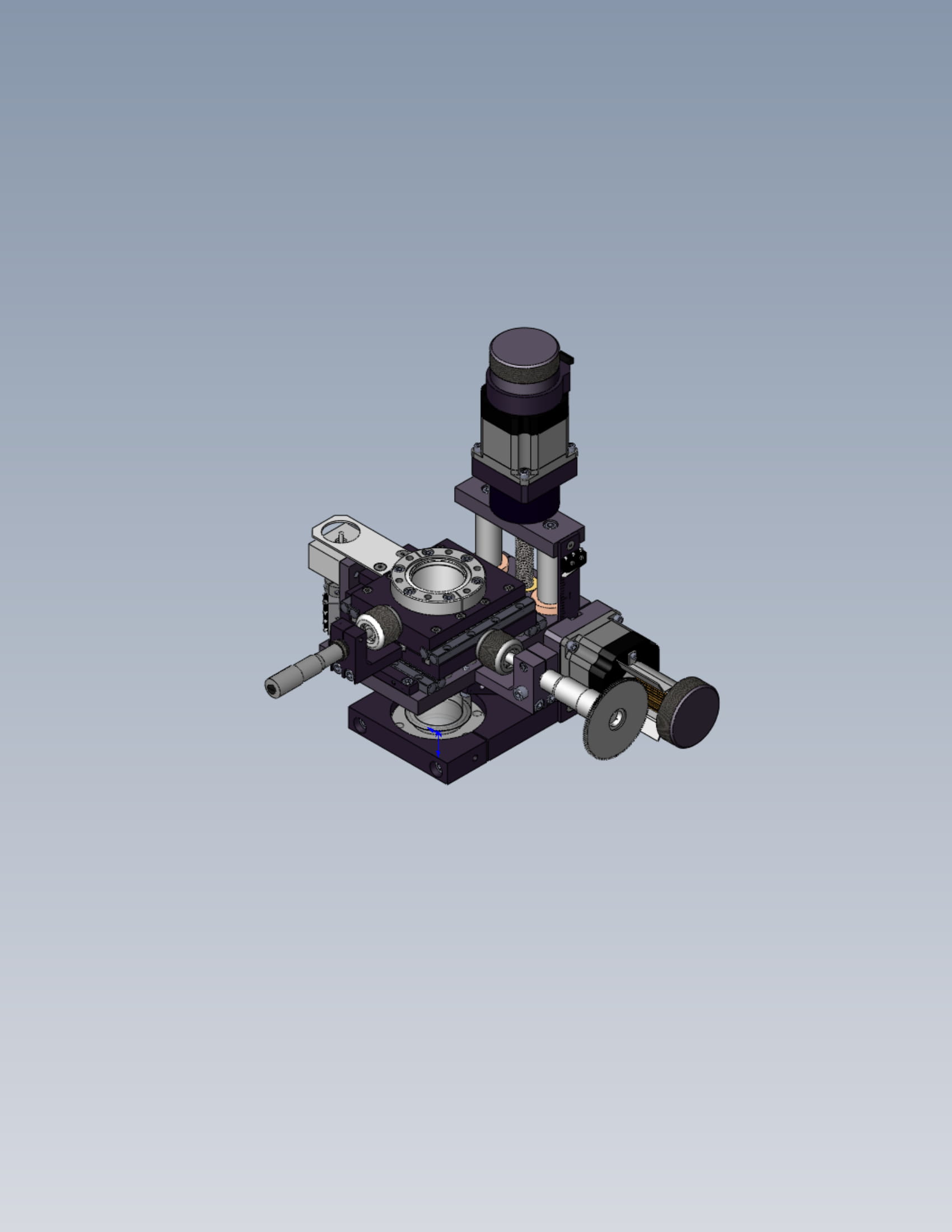

Motorization

Stepping and Synchronous Motor Drives options available
