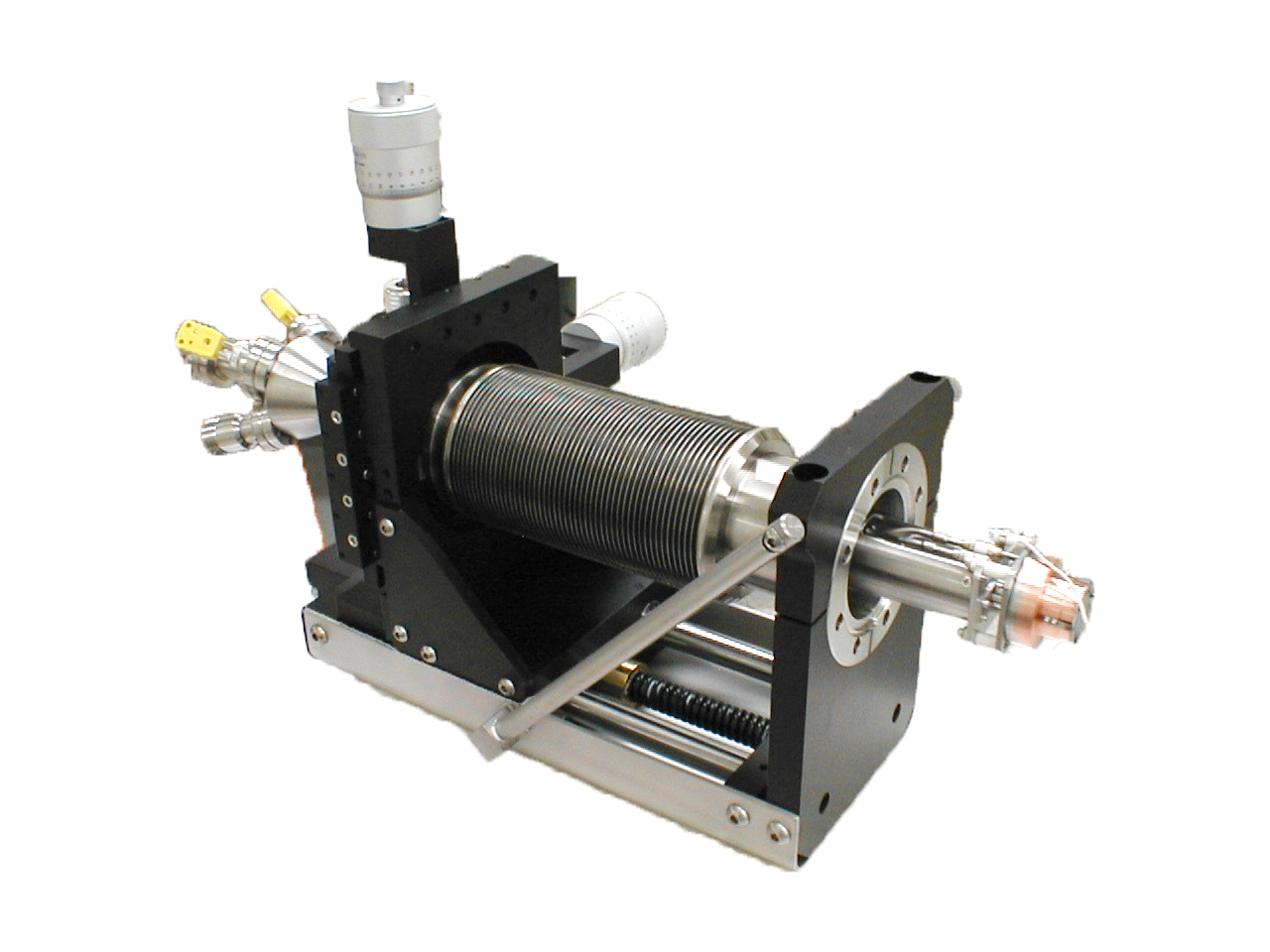

EMX SERIES

EMX series XYZ manipulators accommodate 2.53″ and 4.00″ I.D. bellows, up-to 36″ stroke and up to 65 pounds of payload capacity.

1 in stock

Add to quote
Contact Sales

Downloads

Manipulator Request Worksheet

Manipulator Specification Worksheet Custom Download Icon

Pictures

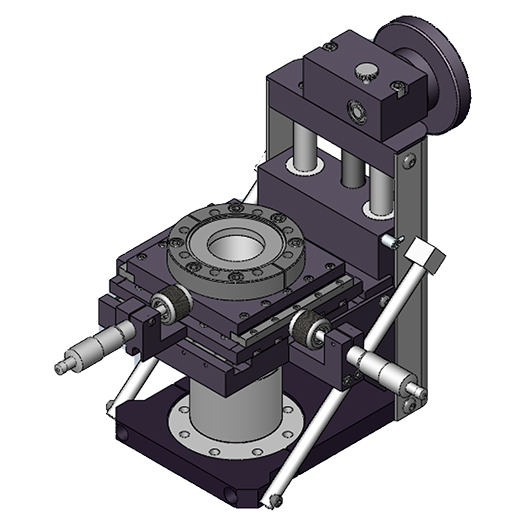

EMX-B450C-T450TM-2.0-25-25-2 Medium Bore Manipulators Motion Sample Handling Custom Download Icon

EMX-B450C-T450TM-2.50-25-25-2 MS-LS HMP Medium Bore Manipulators Motion Sample Handling Custom Download Icon

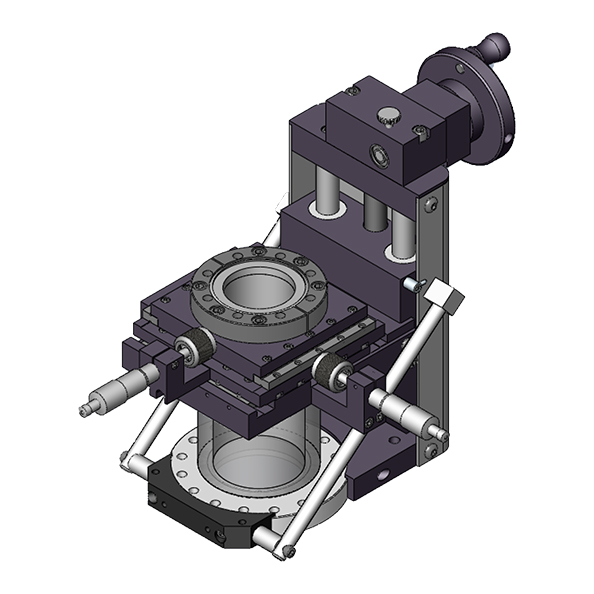

EMX-B600C-T450TM-3.00-25-25-2 Medium Bore Manipulators Motion Sample Handling Custom Download Icon

Manual

EMX XY450 STAGE - Manual Custom Download Icon

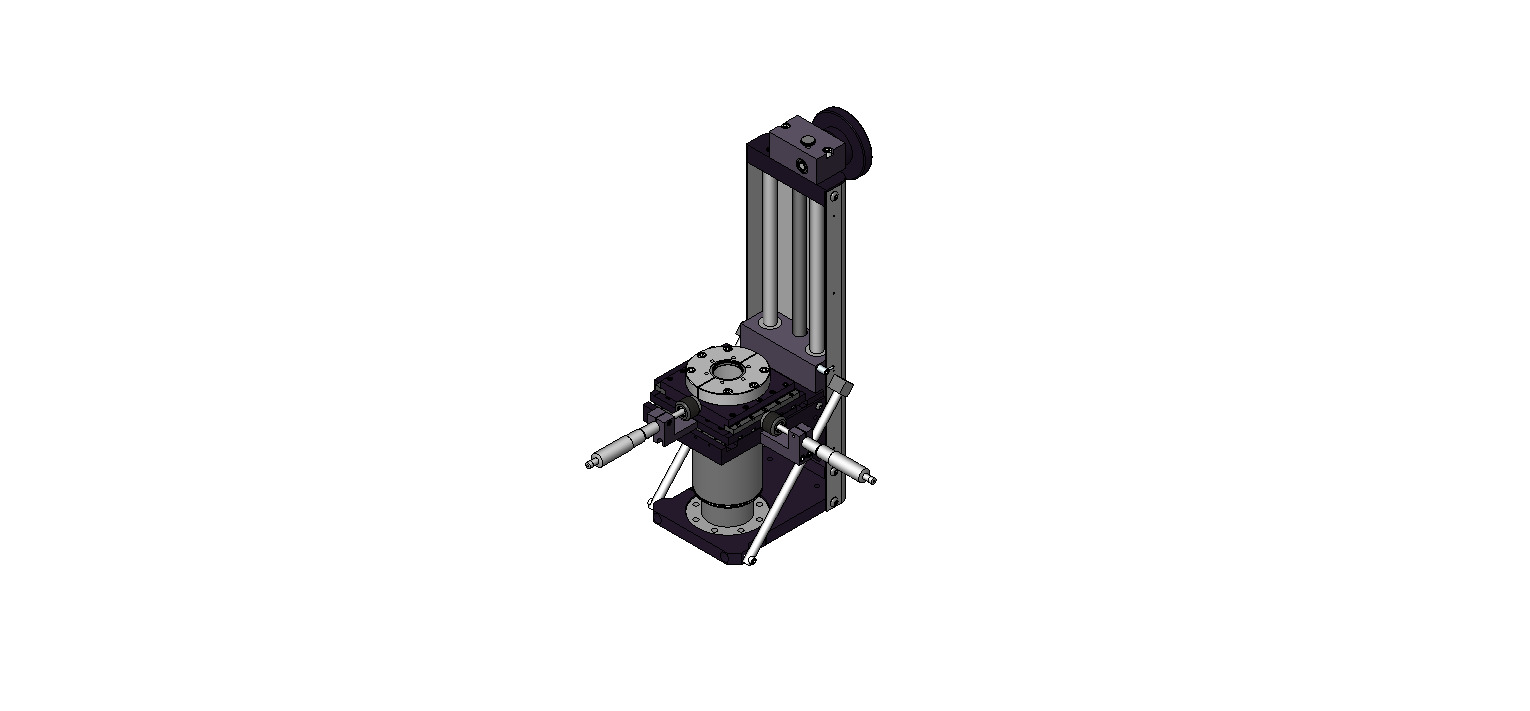

EMX Series

EMX series XYZ manipulators accommodate 2.53″ and 4.00″ I.D. bellows, up-to 36″ stroke and up to 65 pounds of payload capacity.

Features

  • Hardened X & Y cross roller guides
  • 0.500″ O.D. hardened stainless steel Z guide rods
  • Hardened stainless steel linear bearings
  • X micrometer location interchangeable
  • Aluminum stage construction
  • Stainless steel only material exposed to vacuum
  • Maximum bakeout temperature: 200°C

Specifications

Base Flange O.D.

Bellows



I. D.

Travel



Flange

Z Travel

Model No. (2″ Z example)
4.5″ 2.5″ 2.75″ 2-36″ EMX-B450C-T275T-2.5-1-1-2
4.5″ 2.5″ 4.5″ 2-36″ EMX-B450C-T450T-2.5-1-1-2
4.5″ 3.0″ 2.75″ 2-36″ EMX-B450C-T275T-3.0-1-1-2
4.5″ 3.0″ 4.5″ 2-36″ EMX-B450C-T450T-3.0-1-1-2
6″ 2.5″ 2.75″ 2-36″ EMX-B600C-T275T-2.5-1-1-2
6″ 2.5″ 4.5″ 2-36″ EMX-B600C-T450T-2.5-1-1-2
6″ 3.0″ 2.75″ 2-36″ EMX-B600C-T275T-3.0-1-1-2
6″ 3.0″ 4.5″ 2-36″ EMX-B600C-T450T-3.0-1-1-2
8″ 2.5″ 2.75″ 2-36″ EMX-B800C-T275T-2.5-1-1-2
8″ 2.5″ 4.5″ 2-36″ EMX-B800C-T450T-2.5-1-1-2
8″ 3.0″ 2.75″ 2-36″ EMX-B800C-T275T-3.0-1-1-2
8″ 3.0″ 4.5″ 2-36″ EMX-B800C-T450T-3.0-1-1-2

Precision

Axis Micrometer
Graduation		 Resolution Repeatability Backlash Adjustment
X-Y 0.001″ <0.001″ <0.00015″ <0.00015″ Standard
Micrometer
Z 0.0005″ <0.0005″ 0.0005″ 0.0007″ Knob Adjust
X-Y 0.0001″ <0.0001″ <0.00015″ <0.00015″ Optional
Large Micrometer



Configuration   EMX-B450C-T450T, EMX-B450C-T450TM, EMX-B450T-T450T, EMX-B450TM-T450TM
Bellows   2.00, 2.50, 3.00
Stroke XY   1(±1/2), 2(±1)
Stroke Z   2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 34, 36
Drive   Manual, MS-LS
Options  HMP, None

X & Y Axes

  • ±0.5″ X and Y travel, circular pattern, preloaded micrometer-to-stage coupling, 0.001″ micrometer divisions
  • ±0.5″ X and Y travel – Large micrometers with 0.0001″ divisions optional
  • ±1″ X and Y travel available as an optional in standard and large micrometer sizes
  • Micrometers bakeable to 200°C

Z Axis

  • 2″ -36″ acme Z travel, 0.100″/turn knob adjust

Options

6″ Base Flange with 5 Mini-Ports

Model No: -B600MC

  • Change base flange to 6.0″ O.D. with 5 mini-ports
  • This option may only be ordered with the 1.39″ I.D. bellows

Motorization

  • Stepping or Synchronous Motor Drive options available
