ERH Series Sample Heating

Thermionics offers a variety of heating options to fit your application. A selection of UHV (Ultra High Vacuum) and oxygen or chemical vapor environment heaters can be adapted to the SMR sample mount.

Sample Heating

Thermionics offers a variety of heating options to fit your application. A selection of UHV (Ultra High Vacuum) and oxygen or chemical vapor environment heaters can be adapted to the SMR sample mount.

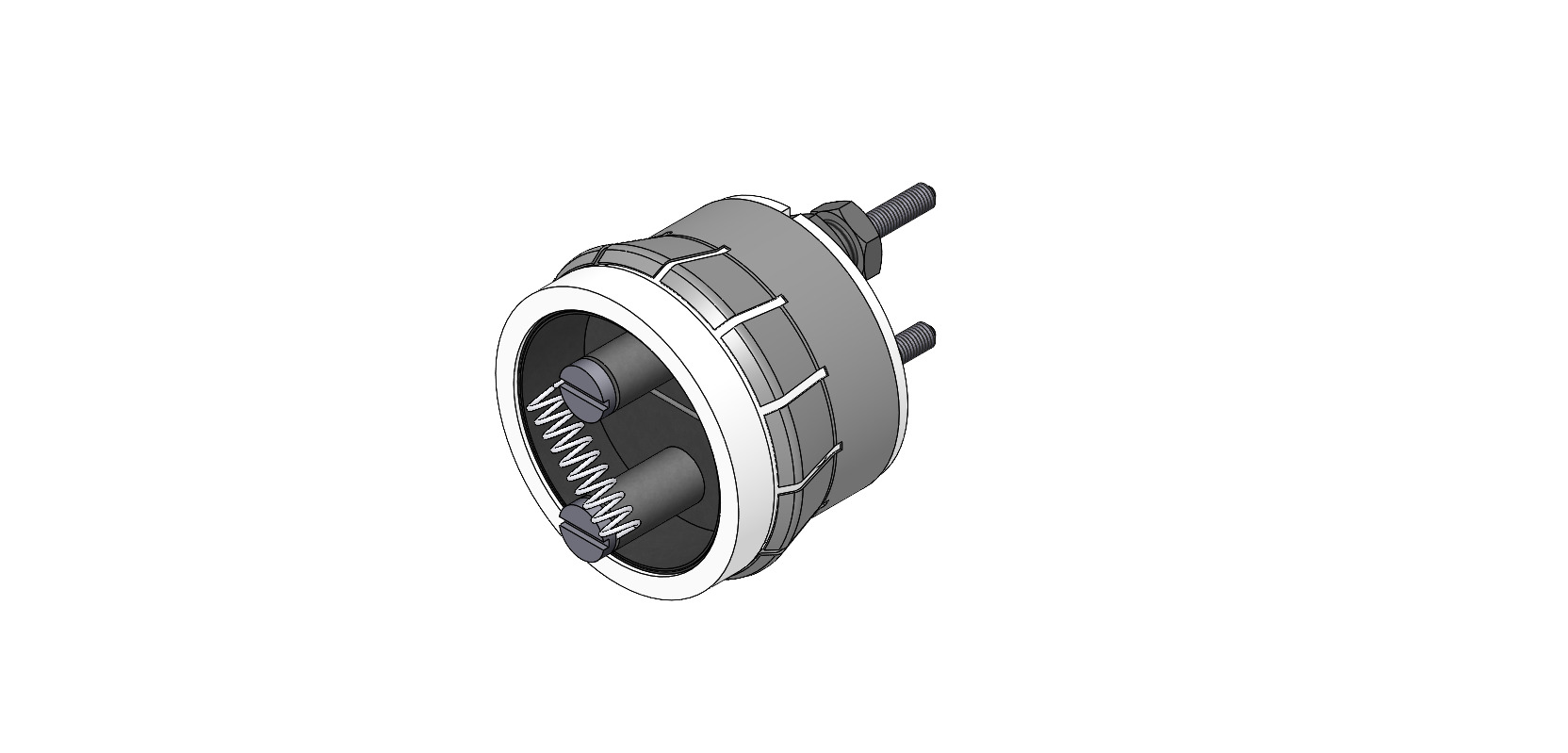

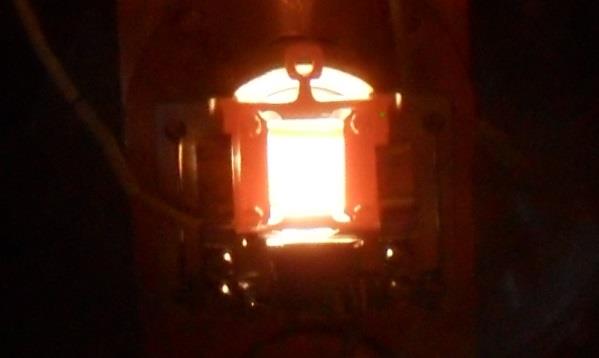

Electron Beam Enhanced Resistive Heater – ERH Series

  • UHV heating to >1400 C
  • Temperature stability <1 degree @ 1200 C
  • 0.6″ O.D. sample size
  • Exceptionally Rapid sample heating and cooling

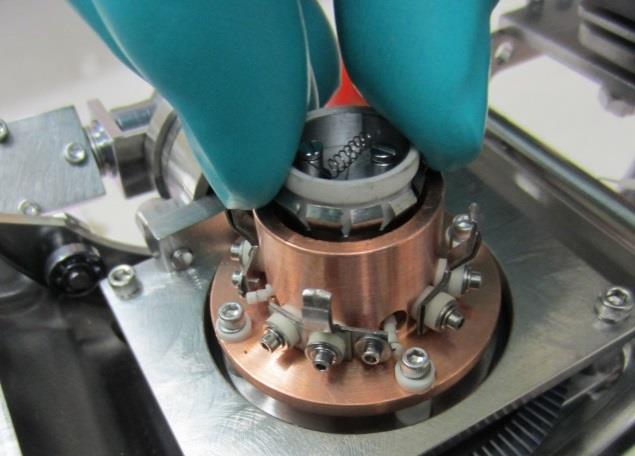

  • Plug in heater design for easy removal / exchange
  • Can be used with a variety of sample platen styles
  • Customization options
  • O2 option for use in oxygen enriched environment up to 1x10e-5 Torr.
  • Low power filament (approx. 40 watts)
  • Suitable for 500 VDC biasing
  • With all necessary atmosphere side connectors, internal wiring, temperature thermocouples and spare filaments

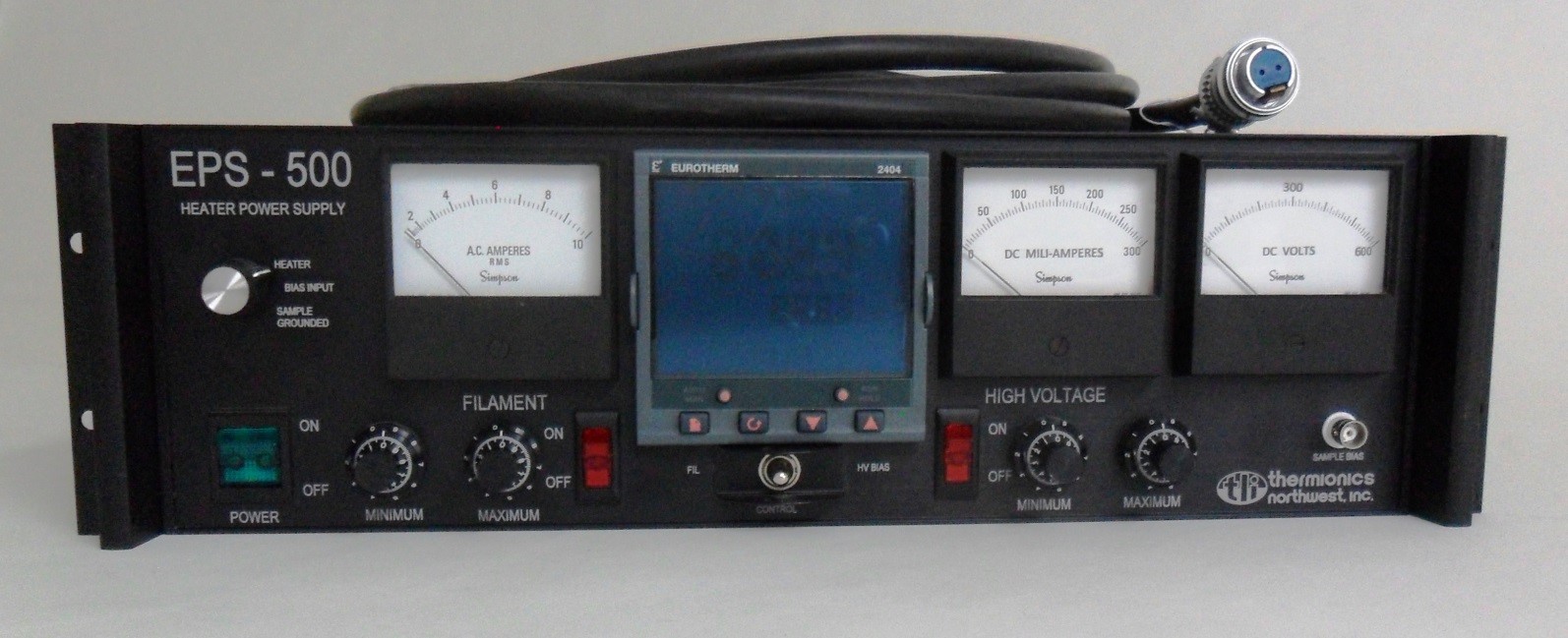

  • Requires EPS-500 power supply

Options

Gas Shower Ring Option

  • For chemical vapor (CV) applications
  • Extends thermal shield above sample plane
  • Single gas shower ring, stainless steel construction
  • Gas ring clamped to heat shield

Shutter Assembly Option

  • For evaporation or sputter applications

Heating and Cooling Accessories

ACS-CR Copper Rope

  • Approximately 1/8″ O.D.
  • OFE copper
  • Suitable for UHV cooling transfer
  • Available in custom lengths

ACS-TS Tantalum Screws

  • Manufactured from tantalum
  • 0-80 screw size
  • 3/16″ tip to head base
  • Filister head

SMRHR-HS Heater Spares Kit

  • Two replacement tungsten filaments
  • Replacement ceramic insulators
