HRN Series Sample Heating

Thermionics offers a variety of heating options to fit your application. A selection of UHV (Ultra High Vacuum) and oxygen or chemical vapor environment heaters can be adapted to the SMR sample mount.

Sample Heating

Thermionics offers a variety of heating options to fit your application. A selection of UHV (Ultra High Vacuum) and oxygen or chemical vapor environment heaters can be adapted to the SMR sample mount.

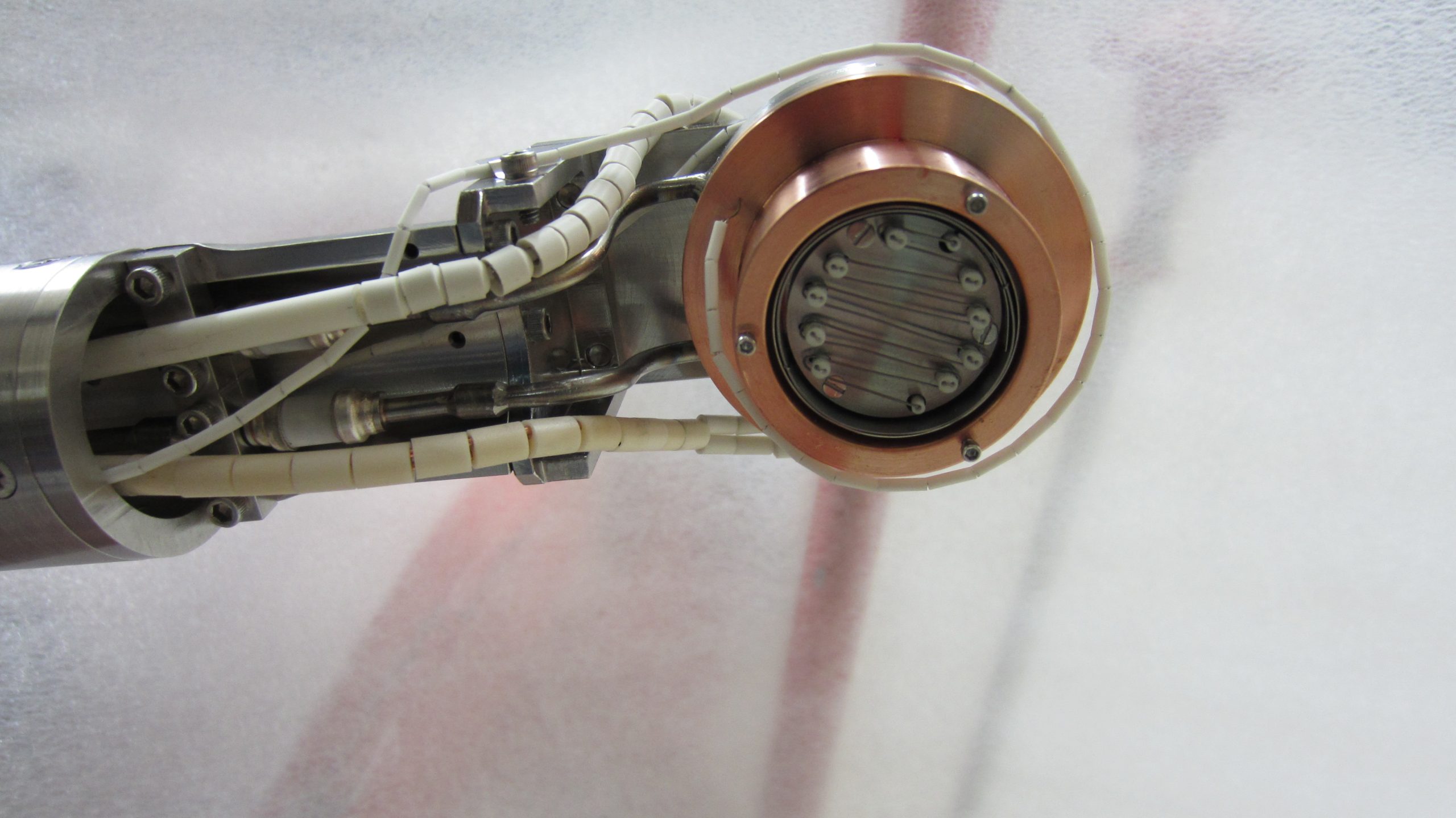

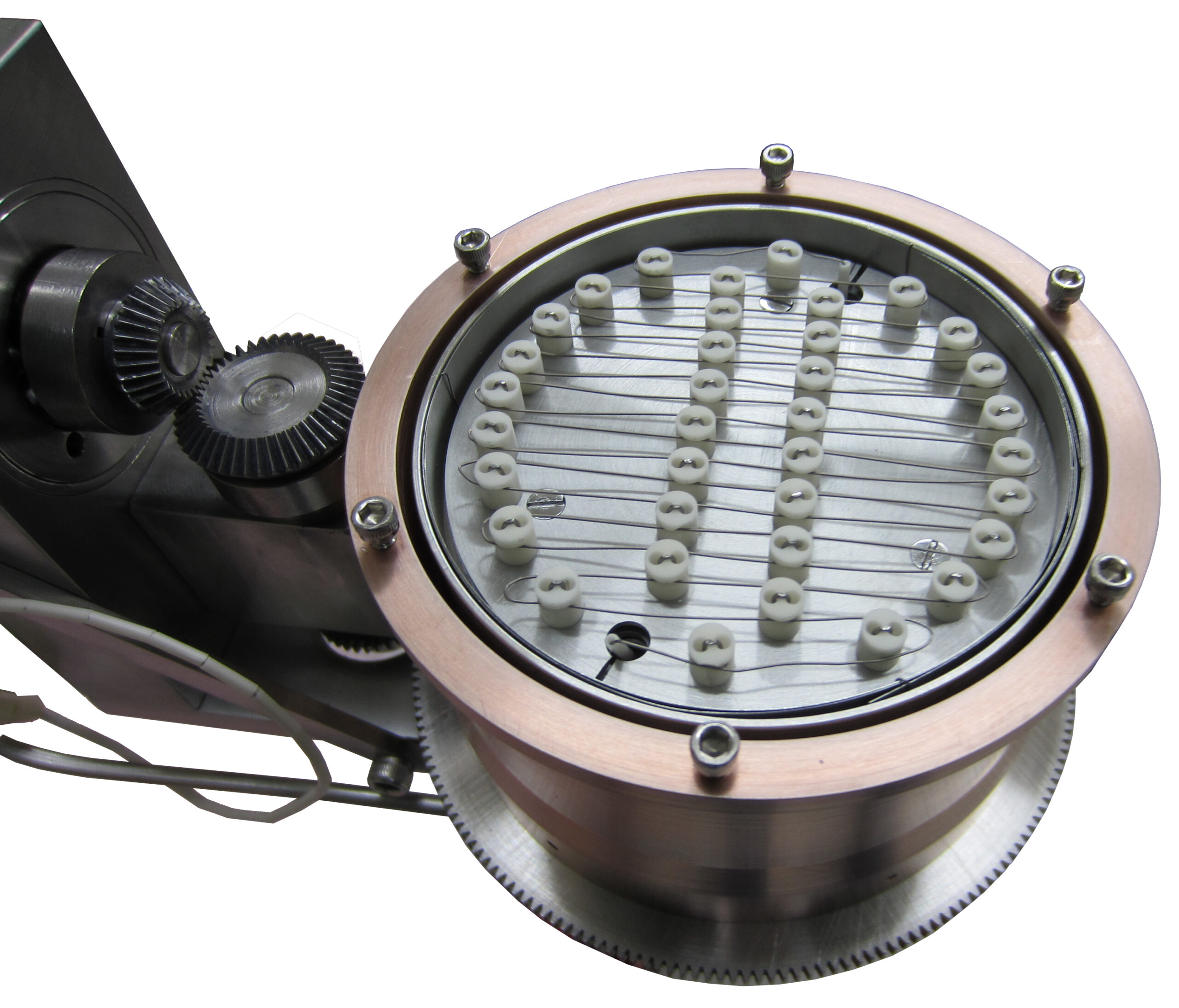

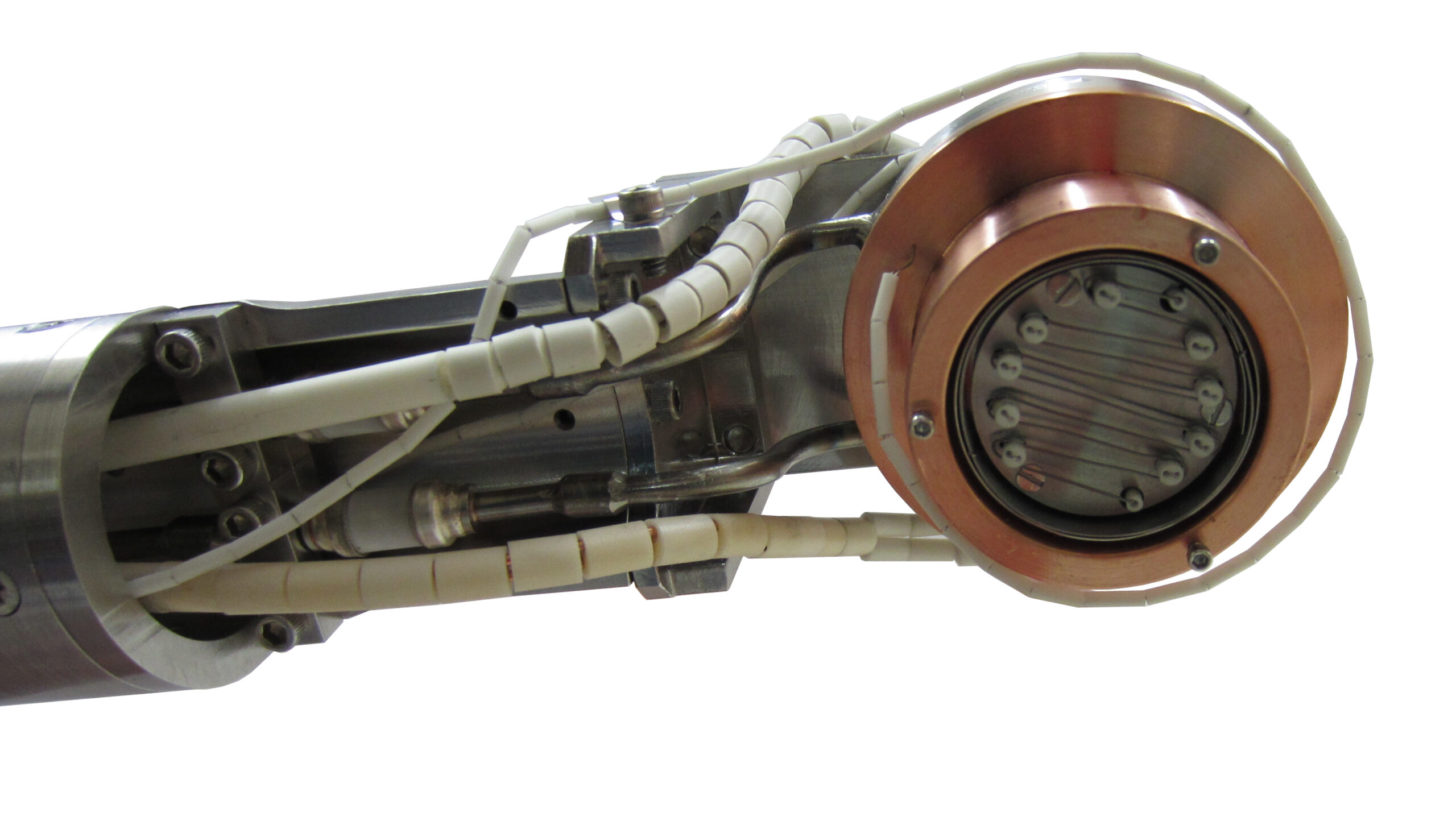

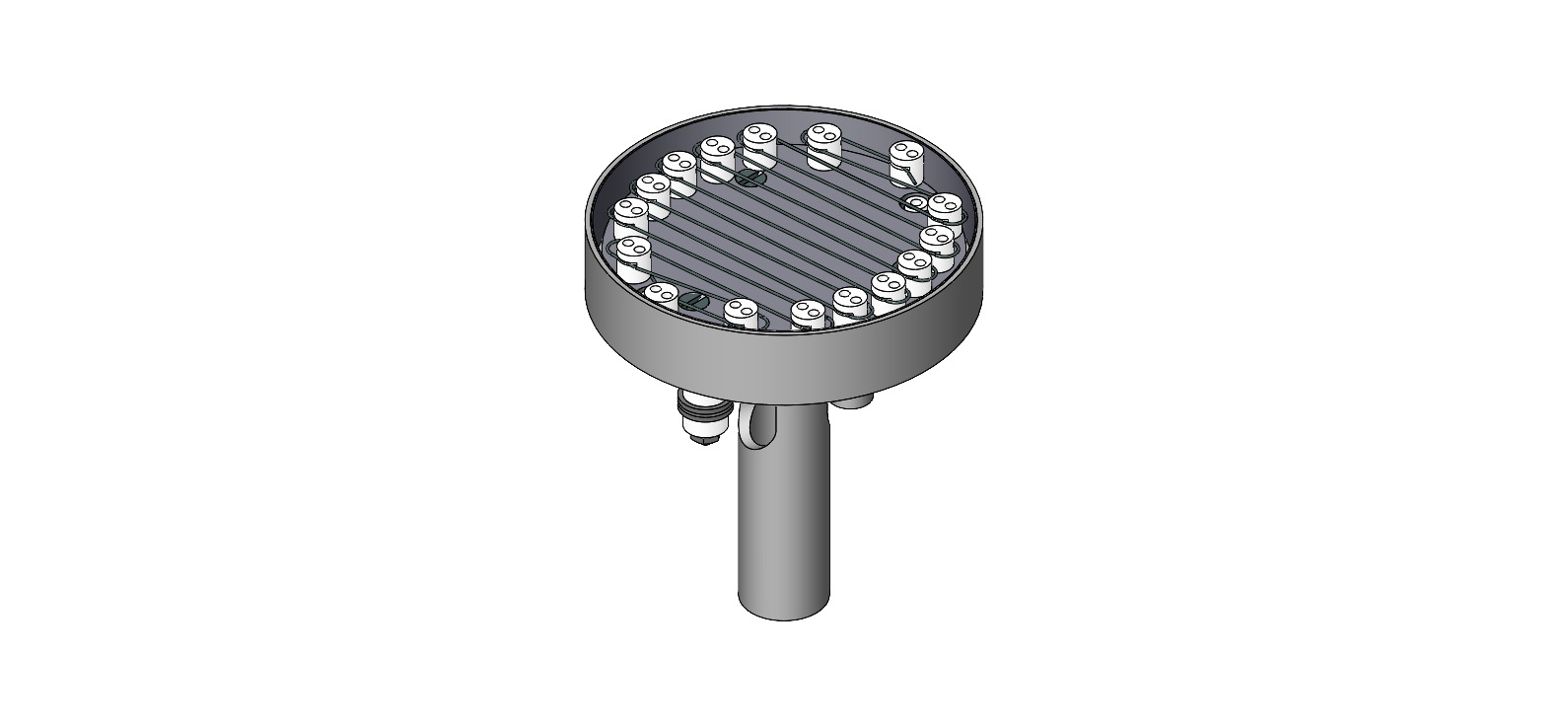

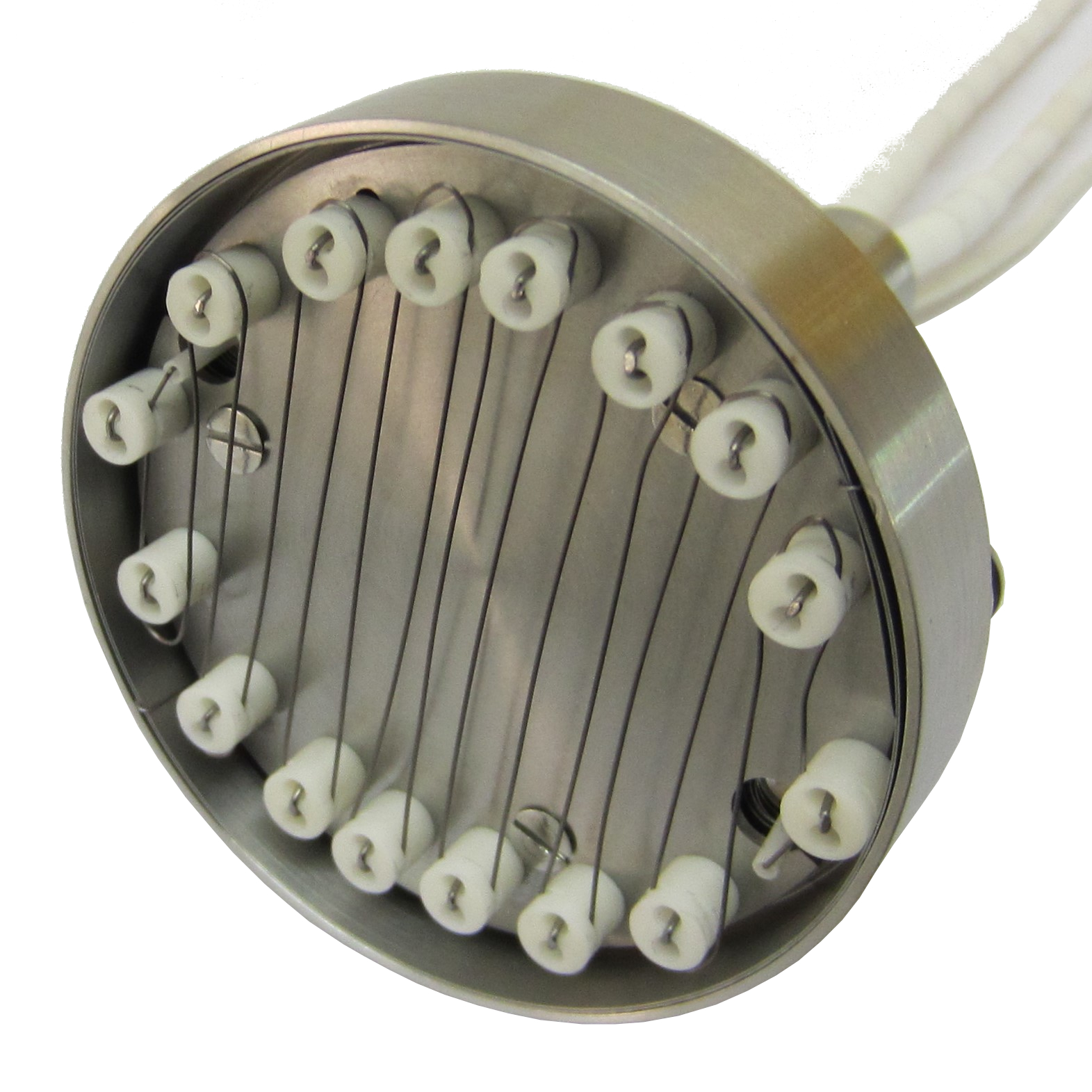

Nude Filament Heater – HRN Series

  • Temperatures up to 1,200°C depending upon application
  • 1″ O.D. sample
  • Maintains electrical isolation
  • With all necessary feedthroughs, atmosphere side connectors, internal wiring, temperature thermocouples, and spare filaments
  • Requires LPS-800 power supply

Options

Gas Shower Ring Option

  • For chemical vapor (CV) applications
  • Extends thermal shield above sample plane
  • Single gas shower ring, stainless steel construction
  • Gas ring clamped to heat shield

Shutter Assembly Option

  • For evaporation or sputter applications

Heating and Cooling Accessories

ACS-CR Copper Rope

  • Approximately 1/8″ O.D.
  • OFE copper
  • Suitable for UHV cooling transfer
  • Available in custom lengths

ACS-TS Tantalum Screws

  • Manufactured from tantalum
  • 0-80 screw size
  • 3/16″ tip to head base
  • Filister head

SMRHR-HS Heater Spares Kit

  • Two replacement tungsten filaments
  • Replacement ceramic insulators

Call or email with your requirements and for current pricing.

800.962.2310 / sales@thermionics.com
