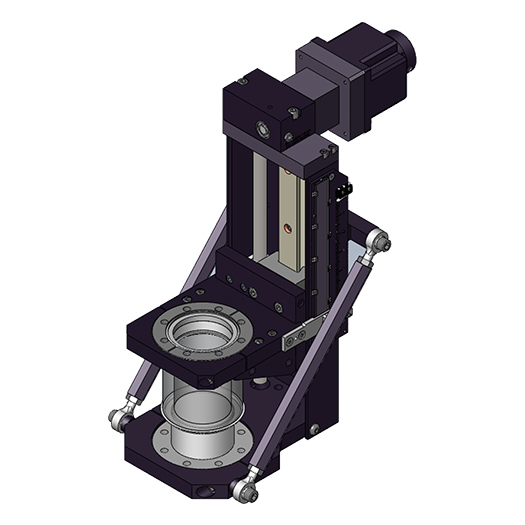

ZC Series Linear Translator
The ZC linear translator features a high precision, stainless steel, linear way bearing assembly for the Z-guide structure. The ZC also features turnbuckle gussets for minor deflection correction. The ZC series backframe is constructed of 6061 aluminum structural channels. The channel design provides structural rigidity and a small footprint.
Features
- Up-to 72″ Z travel
- 4:1 worm drive gearbox, 0.050″/turn, 20 turns/inch, 0.001″ divisions
- Acme drive (ball screw drive optional for higher precision)
- 1.53″ to 4.0″ I.D. bellows available
- 2.75″ to 6.00″ O.D. base flange
- High precision linear way bearings (car and rail)
- Backframe constructed of aluminum structural channel
- Adjustable turnbuckle gussets
- Stainless steel only material exposed to vacuum
- All position operation

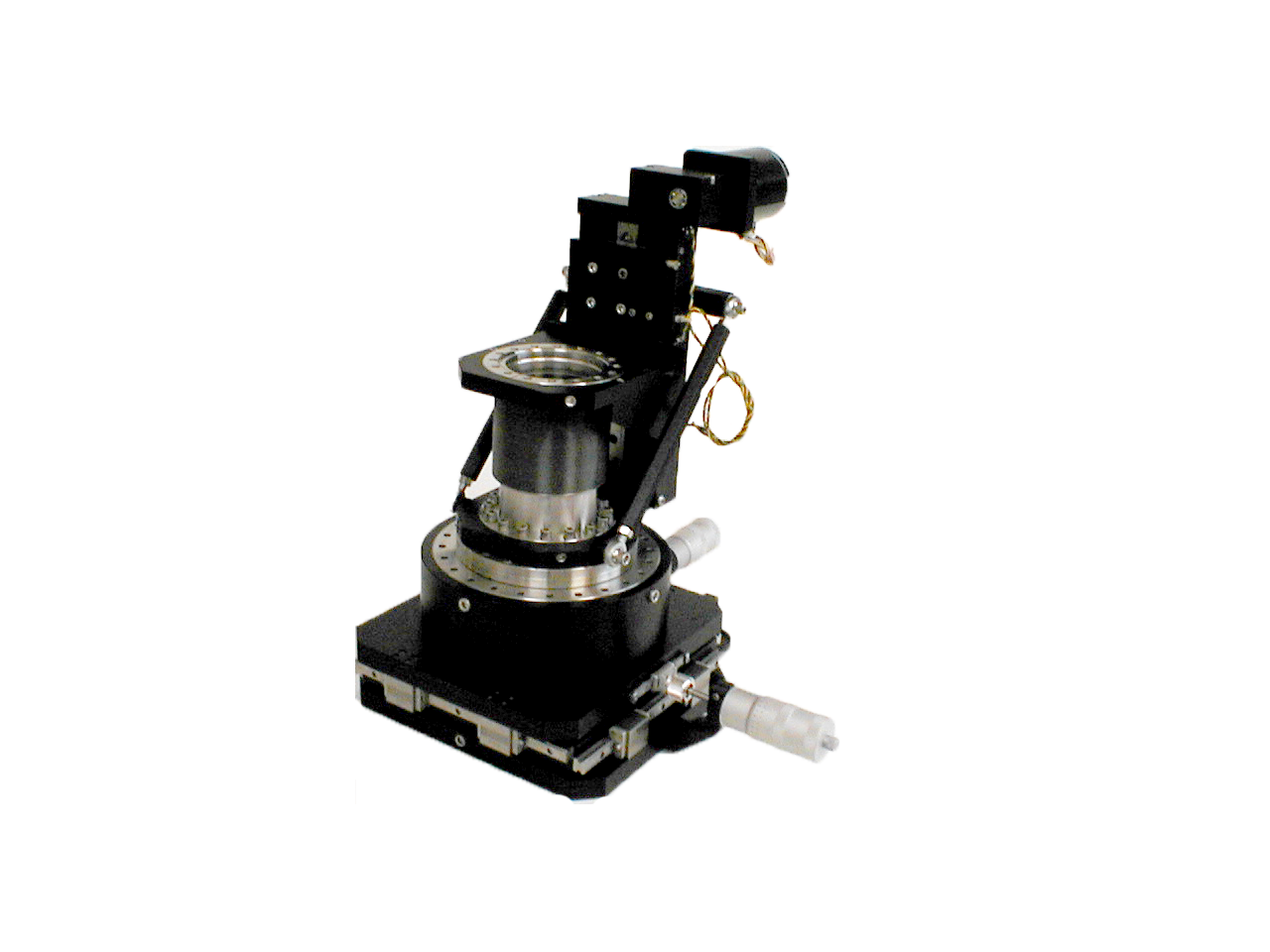

- Can be mounted to XY stage
- Maximum bakeout temperature: 200°C
- Stepper and Synchronous Motor Options Available
