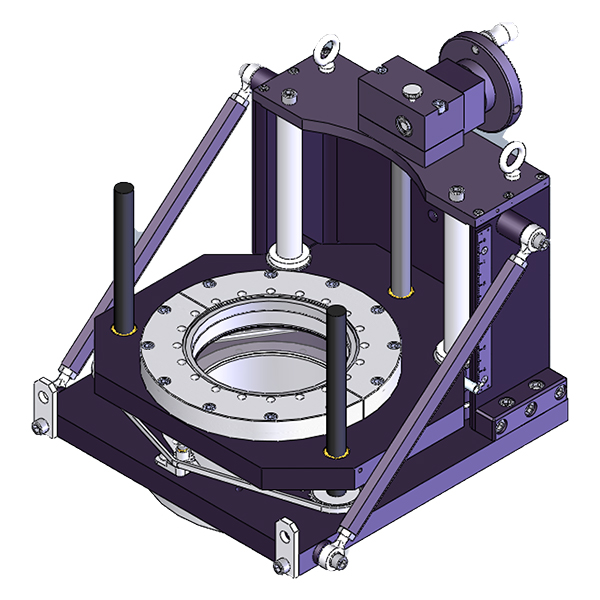

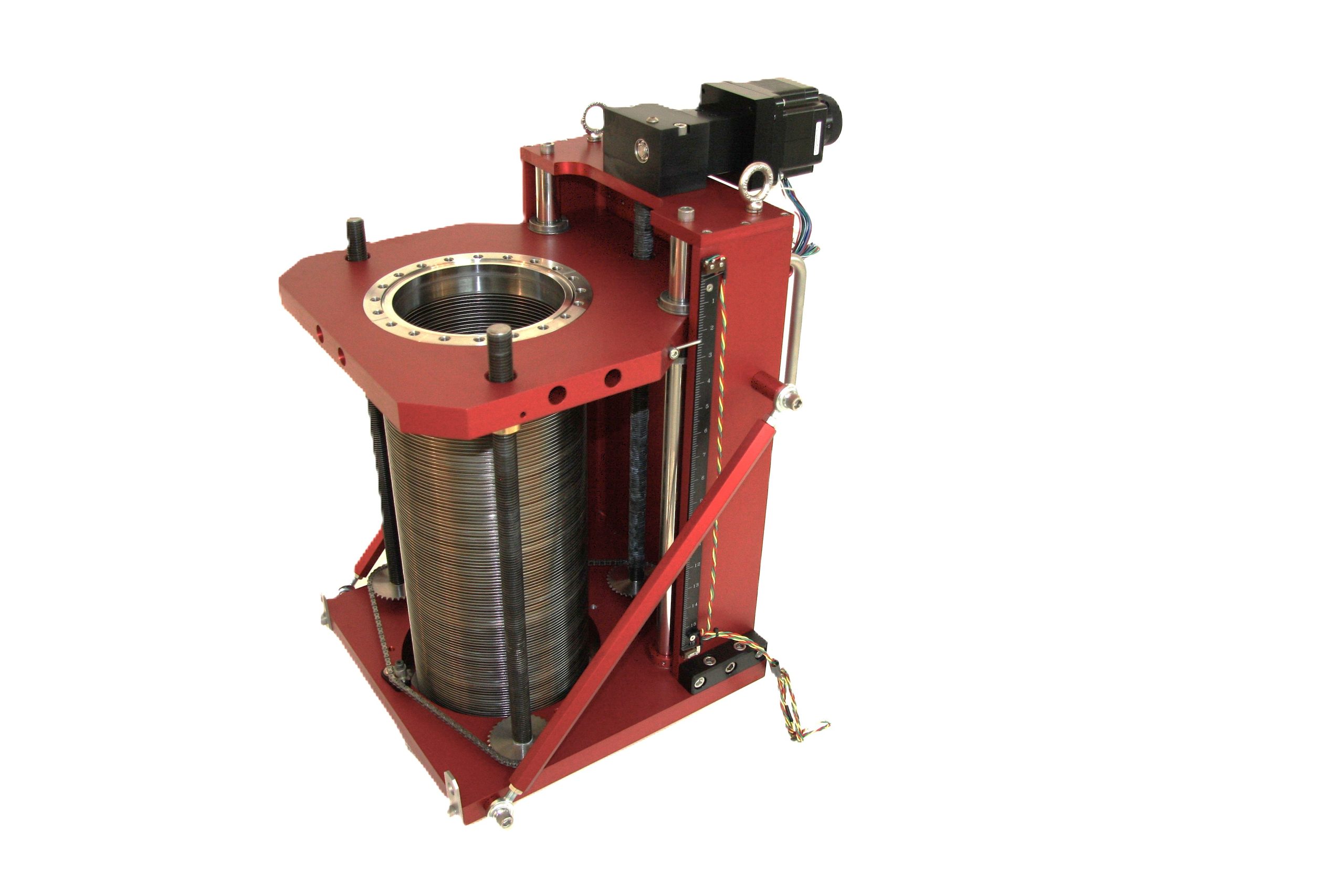

EBT Series Precision Linear Translators

EBT Series precision linear translators provide reliable single-axis (Z only) motion in ultra-high vacuum environments. Designed for stability and mechanical strength, the EBT Series supports demanding payload requirements while maintaining smooth, precise positioning. Bellows inside diameters up to 6.3″ are available, with standard base and traveling flange sizes of 8″ O.D. Other flange diameters can be provided on request.

The Z-axis drive utilizes a precision Acme screw with a 4:1 gearbox, offering accurate motion control and position indication to 0.001″ divisions. Multiple drive options are available, including manual and MS-LS, along with enhancements such as EDL, ZPI, HMP, and POGO.

Features

  • Super-rigid 5-sided box construction
  • Hardened stainless steel bearings and guide rods throughout
  • Adjustable bearings for long service life
  • Wide guide rod spacing (7″ to 9″) for added stability
  • Maximum bakeout temperature: 200 °C

Specifications

Z Axis

  • 2″ to 36″+ Z travel
  • 4:1 worm Acme gearbox drive
  • 0.025″/turn (40 turns/inch)
  • 0.001″ divisions
  • Preloaded lead screw and worm shaft
  • Position lock

Base Flange

  • 8″ (standard), or 10″ O.D.

Traveling Flange

  • 6″, 8″ (standard) O.D.

Motion Specifications

  • Resolution <0.0002″ (0.0005 mm)
  • Repeatability <0.0005″ (0.013 mm)
  • Backlash <0.0008″ (0.020 mm)

Options

  • 3-lead screw version for increased payloads or extended Z-stroke applications
  • Z-drive anti-backlash coupling (available on all drives)
  • Horizontal mounting packages with counterbalance springs
  • Lifting package (stainless steel lifting eyes, custom sling assemblies)
  • Lifting handles
  • Motorization: /MS stepping or /MY synchronous
