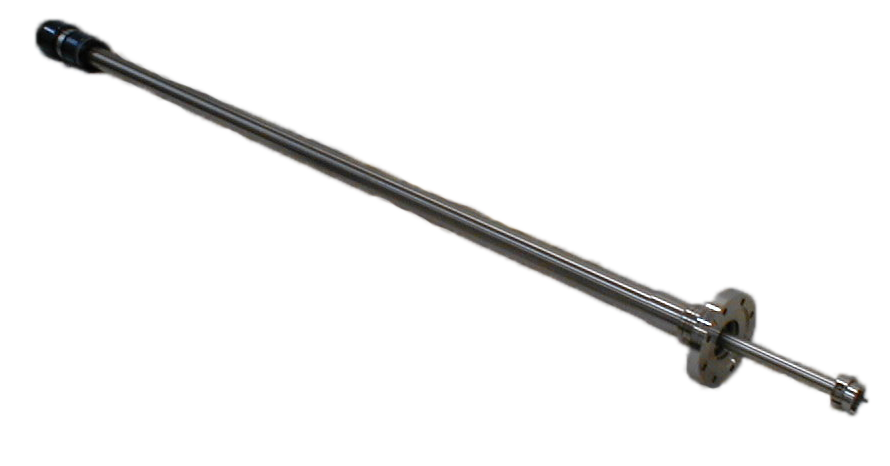

FLLRE-450 Series
| Mounting-Flange | 450 |
|---|---|
| Probe-O | 0.75 |
| Stroke | 1 TO 48 |
| Options | CL, TM, APL, EZ, EZL, RD, LD, NR, REM, REML |
Linear-Rotary Feedthrough
- 3/4” O.D. probe size
- 4.50” O.D. mounting flange
- Up to 48” stroke (3/4” O.D. probe model)
- Mechanical torque limit: 150 oz-in
- Linear force: 15 lbs
- Eight all stainless-steel bearings
- 200°C bakeout (magnetic drive removed)
- Removeable neodymium iron boron magnetic drive

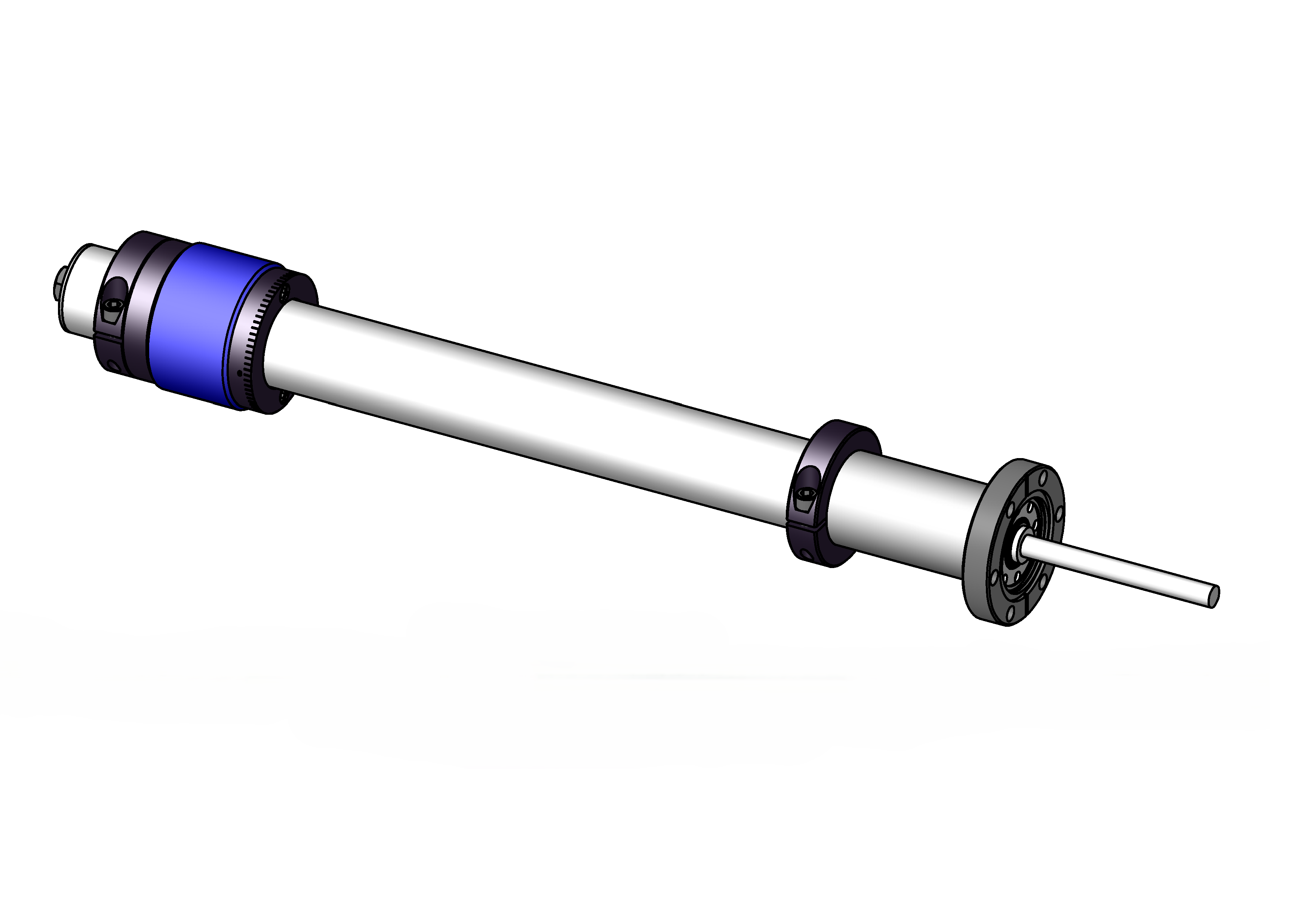

FLLRE Series Magnetically Coupled Linear-Rotary Feedthroughs
FLLRE linear-rotary feedthroughs are manufactured and protected under one or more of the following patents: 5,514,925
