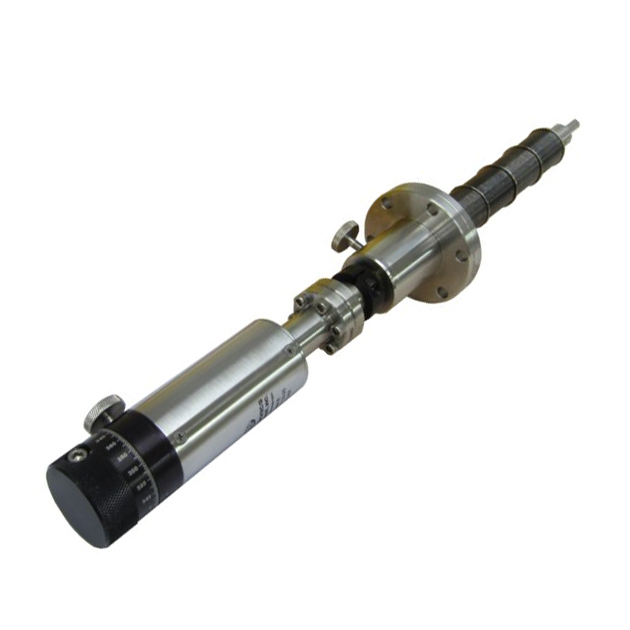

Push-Pull Linear-Rotary Feedthroughs
The FLRM series of linear-rotary feedthroughs provide linear motion is push-pull against the pressure differential (12 lbs. maximum) and an FRM-133-25 rotary feedthrough mounted on the axis of the 1/2″ tube.

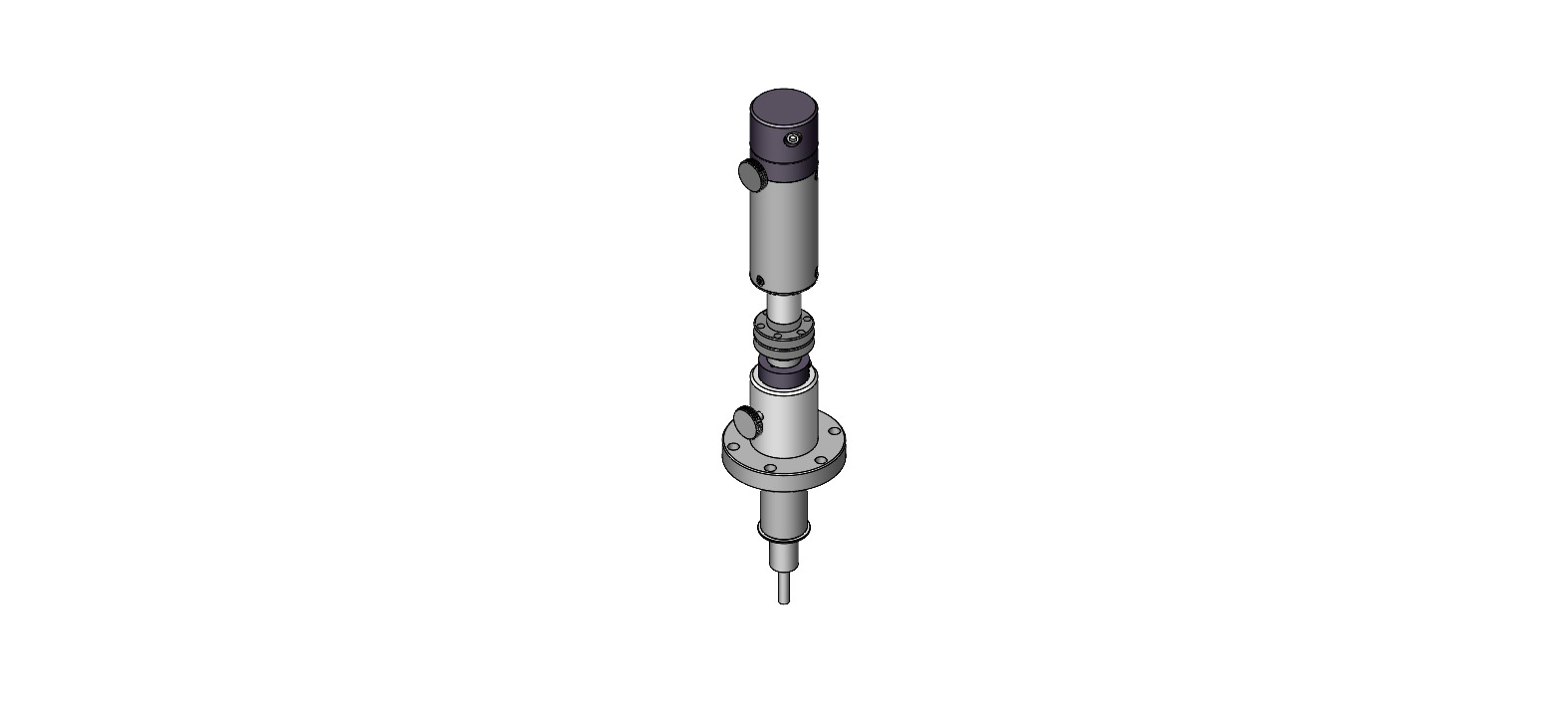

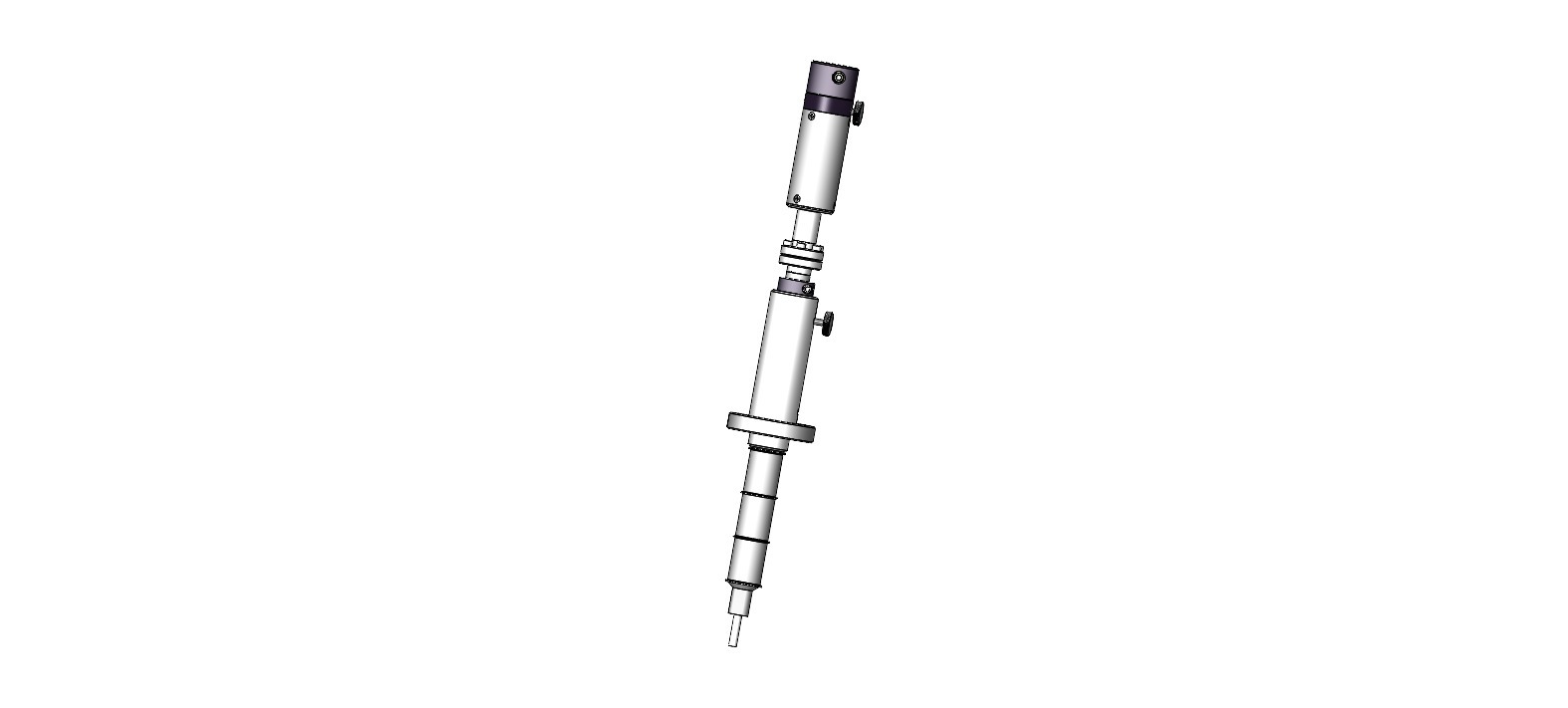

FLRM-275 Series
- 1/4″ O.D. probe
- 2.75″ O.D. mounting flange
- Up to 36″ stroke
- Postion lock
- Stainless steel bellows sealed
- Stainless steel linear shaft bearing
- Maximum bakeout temperature: 200°C
Options
Stepping Motor Drive
- 200 steps per revolution
- 50 oz-in holding torque (higher torque motors available)
- Maximum speed 300 rpm
- Low inertia design
- Manual knob
- Motor controller sold separately
Synchronous Motor Drive
- Single speed, 72 rpm
- 2 directions
- 50 oz-in holding torque (higher torque motors available)
- Low inertia design
- Manual knob
- Motor controller sold separately
Speed Control Motor Drive
- Variable speed
- Switchable direction
- 5 – 95 RPM with 50 oz-in torque
- Options:
Higher torque motors
Different speed ranges - Includes Controller
