FWS-15-275
| Mounting-Flange | 275 |
|---|---|
| Probe-O | CL, STD |
| Stroke | 1, 2, 3, 4, 5, 6 |
| Angle | ±7.5° |
| End | Hook |

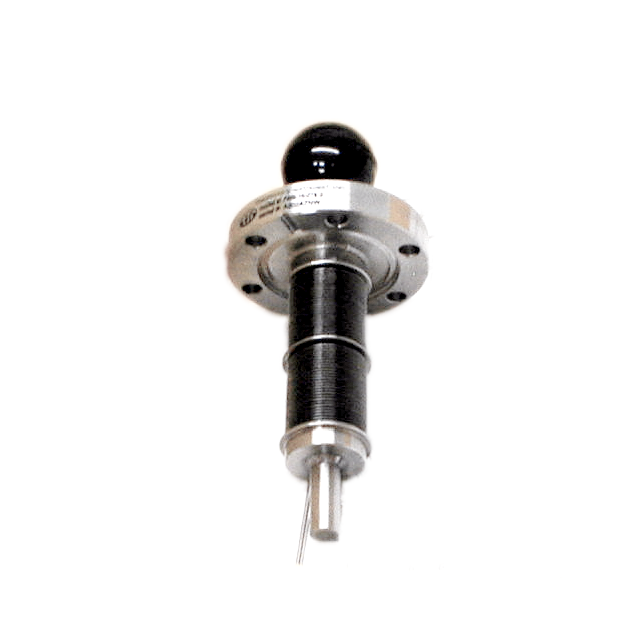

FWS series wobble stick probes supply a combination of Z axis, polar rotation, and polar axis tilt to allow tip positioning inside the vacuum chamber. They can be fitted with clamp jaws, hooks, or forks to attach and release samples. The user can specify the required Z travel.

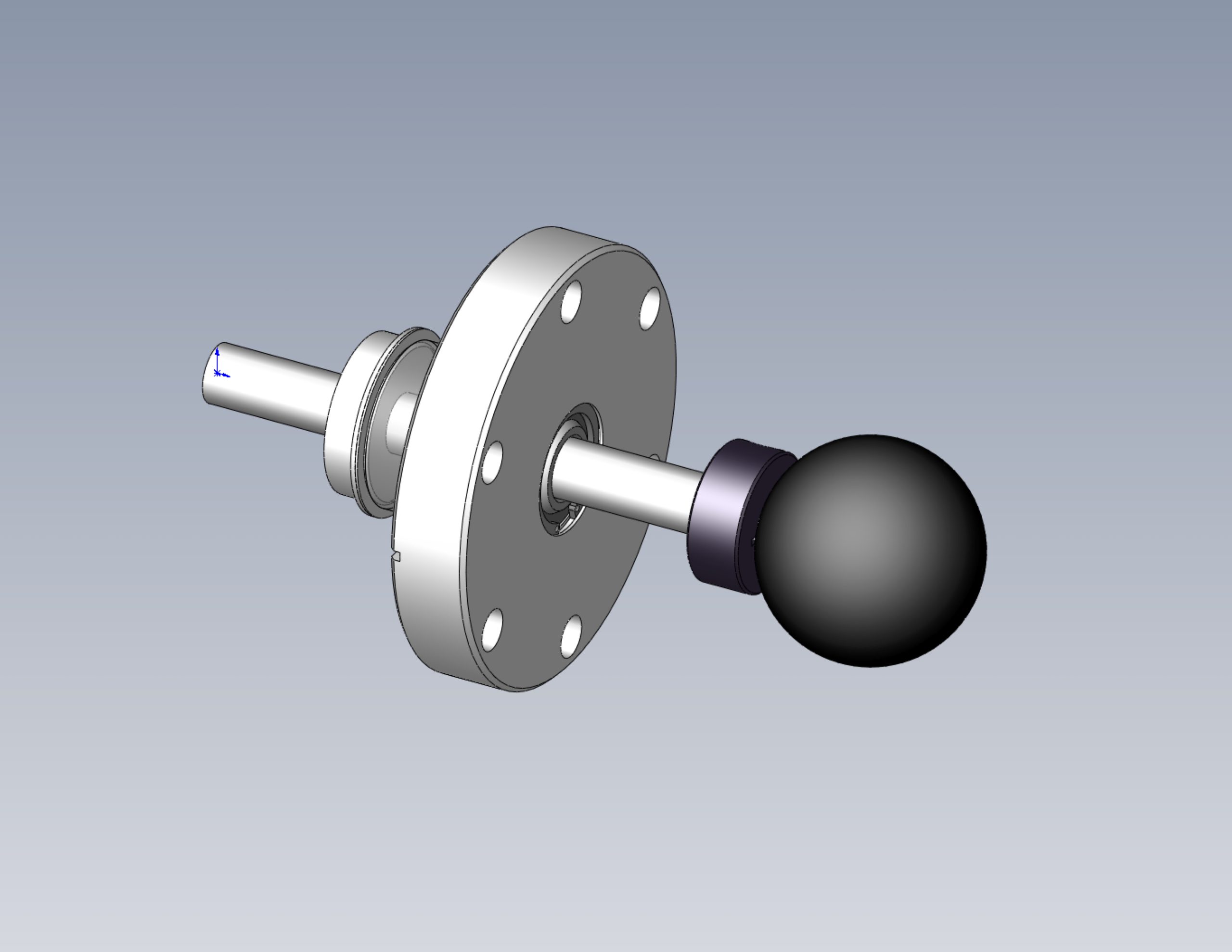

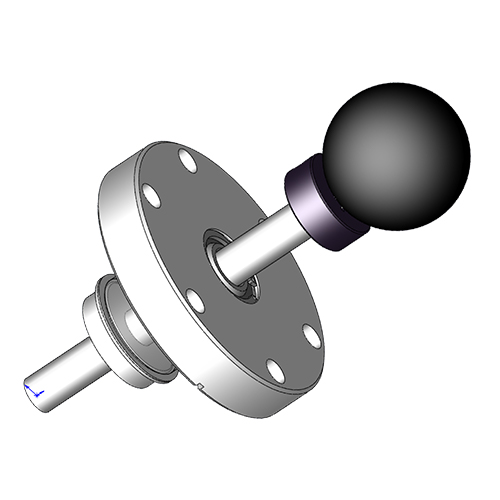

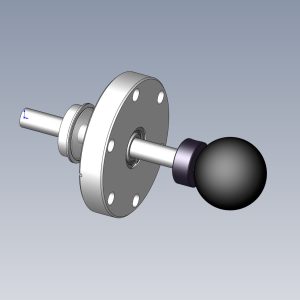

FWS-15-275-1 Wobble Stick
- 3/8” O.D. shaft
- 2.75” O.D. mounting flange
- ± 7.5° angular range
- 1” linear travel (on axis)
- Without fork
