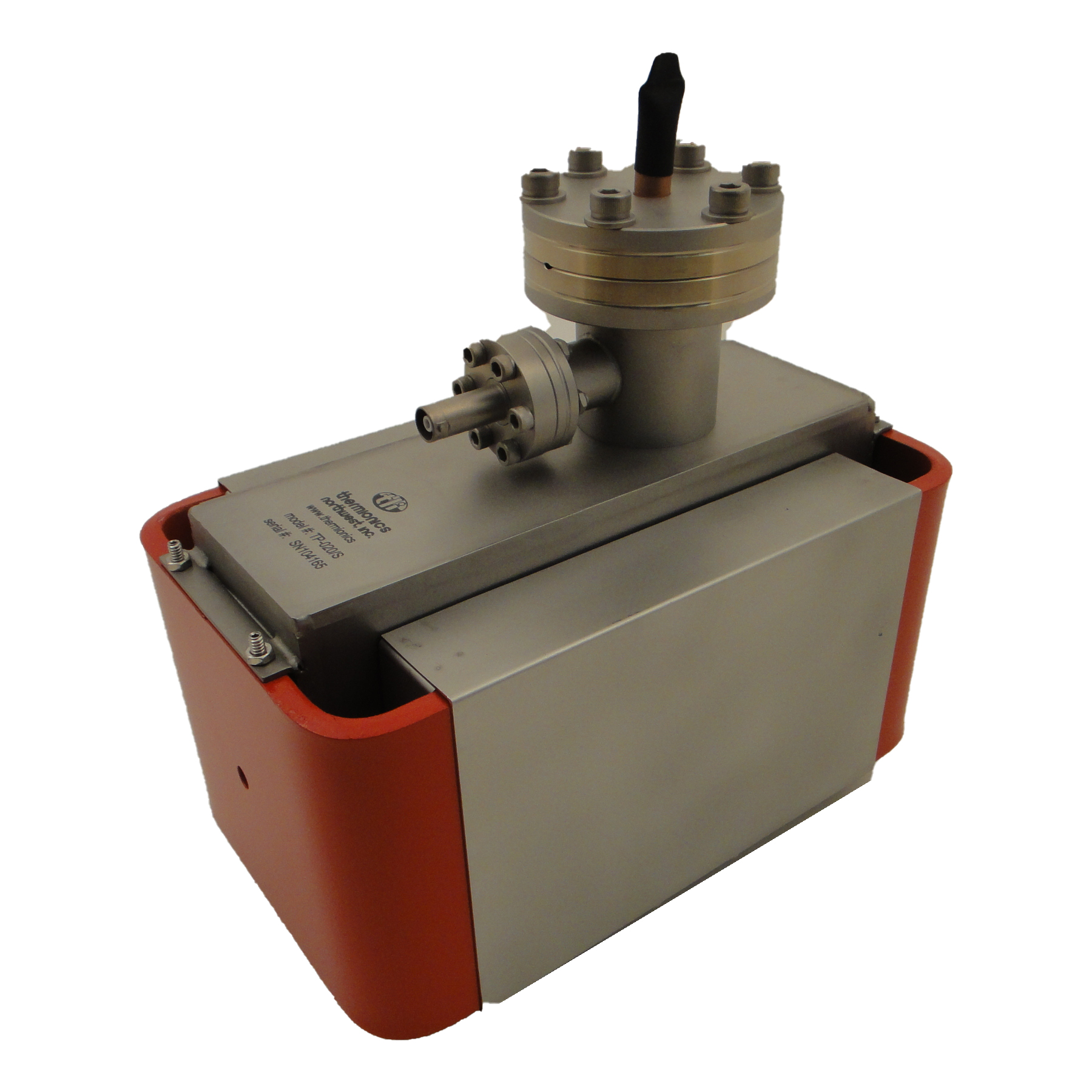

DSC08459 Noble Diode Pumps NP Series Ion Pumps Electron Beam Gun Chambers And Accessories Custom Download Icon

Manuals

PS 1000 Ion Pump Power Supplies Custom Download Icon

PS 350 Ion Pump Power Supply Manual Custom Download Icon

PS 100 Ion Pump Power Supply Manual Custom Download Icon

Noble Diode

Noble Diode

Pumps use one titanium and one tantalum cathode to increase pumping speed for noble gases. Increased speed eliminates the pressure and speed instabilities shown by standard diodes when pumping against a prolonged air leak while retaining the long life and reliability of the standard diode. These are the most stable pumps for noble gas loads.

Noble diodes were developed to pump noble gases. In every instance but one they are identical to a standard diode. The difference is the use of one tantalum cathode in place of one of the two titanium cathodes in the standard pump. The tantalum, because of its larger atomic number, produces a greater number of energetic neutrals which can bury themselves in locations which are less subject to resputtering.

Tantalum is somewhat less effective than titanium as a getter. Therefore the speed of the noble diode is approximately 5% lower than the standard diode. Another fact of note is the lessened solubility of hydrogen in tantalum at elevated temperatures. Since elevated temperatures will be encountered during prolonged starting, it would be wise to avoid applications which require this pump to handle large amounts of hydrogen. Naturally, applications differ. Should you have any questions about the applicability of a pump for your use, please give us a call. We have a wide variety of prior applications to draw upon.

Model No. Rated
Pump
(l/sec)		 Flange 1
I.D./O.D.
(inches)		 Wt.
(lbs)		 Bakeout 2
Heater
Quantity		 Replacement
Elements
NP-011
11
1.5/2.75
14
0
Fact. repl.
NP-020
NP-020/IH
20 3
1.5/2.75
26
0
1
Fact. repl.
NP-025
NP-025/IH
25 3
2.0/3.375
27
0
1
Fact. repl.
NP-050
NP-050/DE
60/50 4
4.9/8.0
82
94
2
PE-100N
2 ea.
NP-100
NP-100/DE
120/100 4
6.0/8.0
127
142
4
PE-100N
2 ea.
NP-140
NP-140/DE
115 4, 5
6.0/8.0
143
154
0
DE-100N
1 ea.
NP-150
NP-150/DE
160/150 4
6.0/8.0
145
160
0
PE-100N
6 ea.
NP-200
NP-200/DE
220/200 4
6.0/8.0
145
160
4
PE-100N
8 ea.
NP-220
NP-220/DE
220 4
6.0/8.0
250
290
0
DE-100N
2 ea.
NP-400
NP-400/DE
400 4
6.0/8.0
276
290
8
PE-100N
16 ea.
NP-500
NP-500/DE
400 4
6.0/8.0
402
460
0
DE-100N
4 ea.

* Pumping Speed Ratings for Ion Pumps

Some pumps in this table have two pumping speeds shown, i.e., 150/100. The lower number is observed when the measurement standard established by the American Vacuum Society (AVS) is followed. The higher number is observed when the same pump is measured under optimum pumping speed conditions. Some manufacturers use the optimum pumping speed, only reporting this higher number. Both ratings are provided here to allow the customer to make an informed choice.

1 All flanges ConFlat compatible except 1,000 l/sec pumps.
2 Heaters are model IH-100 Calrod heaters which fit into matching interior heater wells in most pumps.
3 IH signifies interior heater well available as option.
4 DE specifies a double-ended option.
5 No bakeout heaters available for this pump.
6 Larger pumps available on special order.
