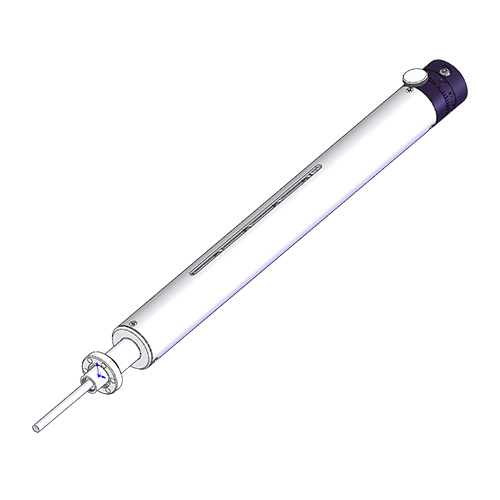

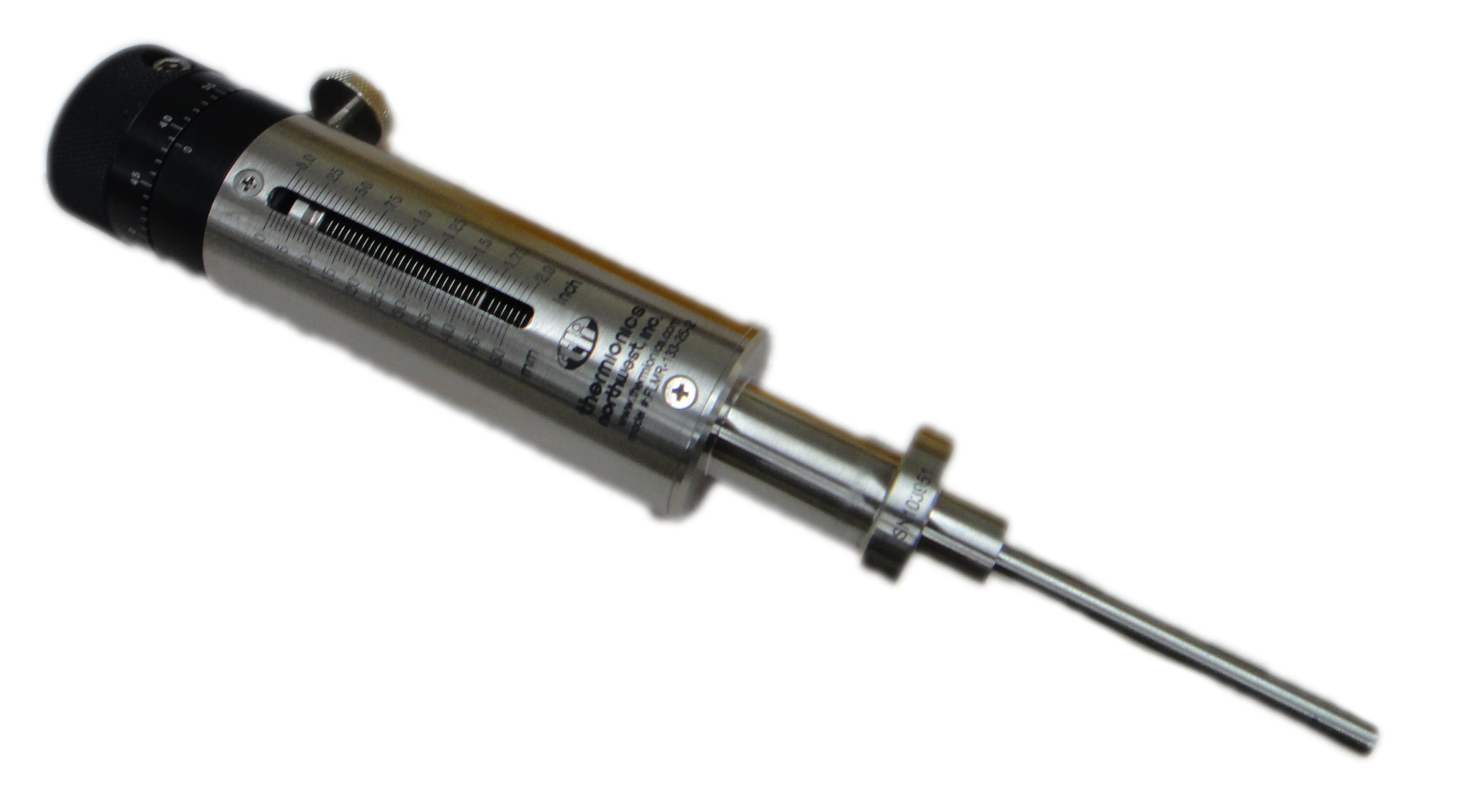

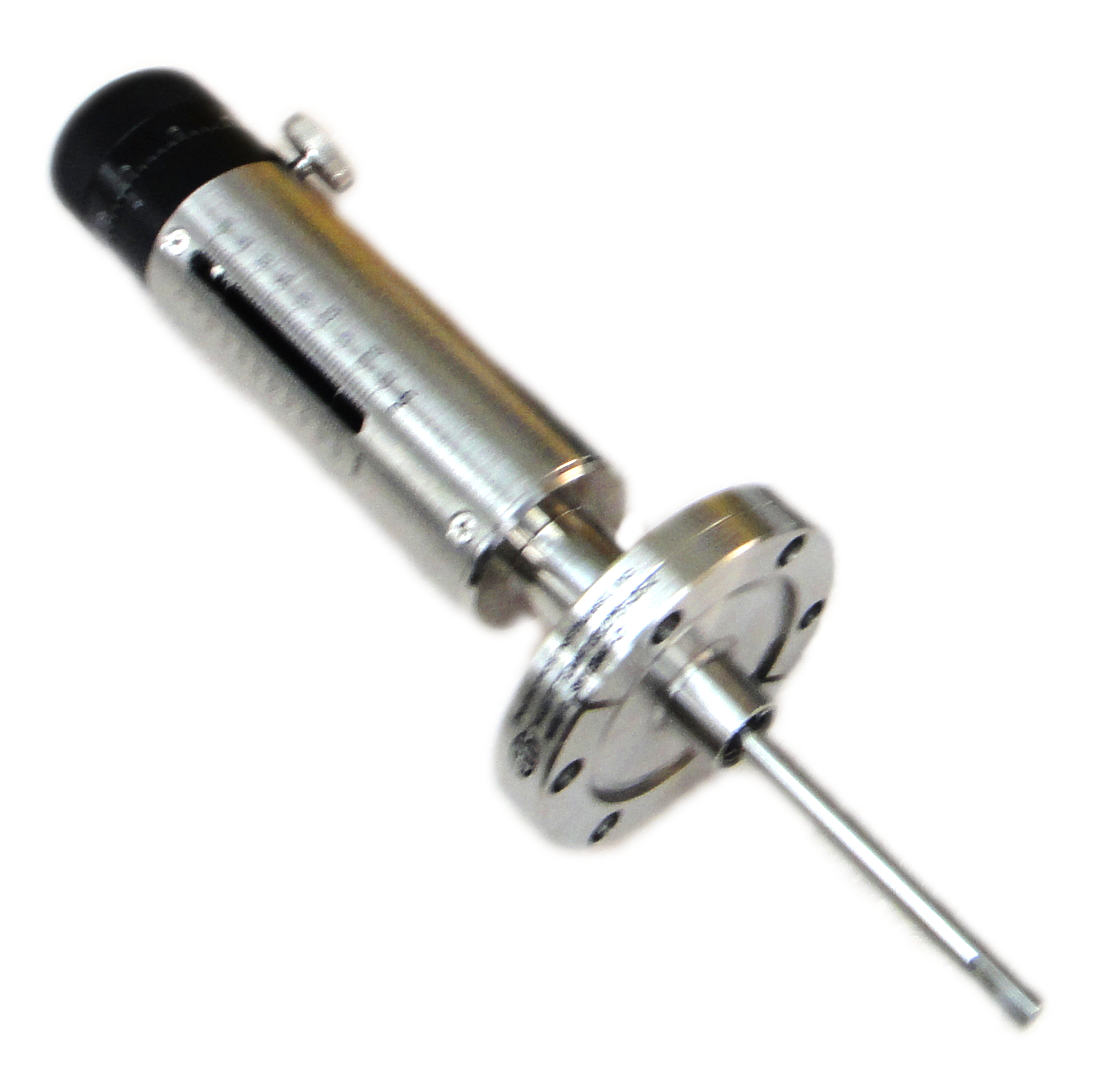

Linear Vacuum Feedthroughs
- 1/4″ O.D. shaft
- 1.33″ O.D. mounting flange
- 1″, 2″ or 3″ stroke
- Stainless steel bellows sealed
- Rotary actuated, 28 turns/inch, all ball bearing drive
- Stainless steel linear shaft bearing
- Includes position indicator
| Mounting Flange | 133 (standard), 275 (Others Available) |
|---|---|
| Stroke | 1, 2, 3, 4, 5, 6, 7, 8 |
| Stroke | A | Model No. |
| 1″ | 5.6″ | FLMR-133-25-1 |
| 2″ | 7.1″ | FLMR-133-25-2 |
| 3″ | 9.2″ | FLMR-133-25-3 |
| Additional stroke, per inch |
