TLG4000, Pneumatic Gate Valve

Add to quote
Contact Sales

Downloads

DRAWINGS

TLG4000 Image Custom Download Icon

TLG4000 Drawing Custom Download Icon

TLG4000-220-11(600400MT)-1200_GATE_VALVE_4.0_I.D._6.0_O.D._CF_PORT_FLANGES_METRIC_TAPPED_VITON_SEAL_BONNET_PNEUMATIC_OUTLINE_DRAWING Custom Download Icon

TLG4000-220-21(600400MT)-1200_GATE_VALVE_4.0_I.D._6.0_O.D._CF_PORT_FLANGES_METRIC_TAPPED_METAL_SEAL_BONNET_PNEUMATIC_OUTLINE_DRAWING Custom Download Icon

STEP

TLG4000 STEP Custom Download Icon

MANUALS

DN63 - DN250 Ultra High Vacuum Gate Valve - Manual Custom Download Icon

Semi Grade Gate Valve - Manual Custom Download Icon

FLYERS

Semiconductor Grade Gate Valve - Brochure Custom Download Icon

GATE VALVE INDUSTRIAL GRADE - Flyer Custom Download Icon

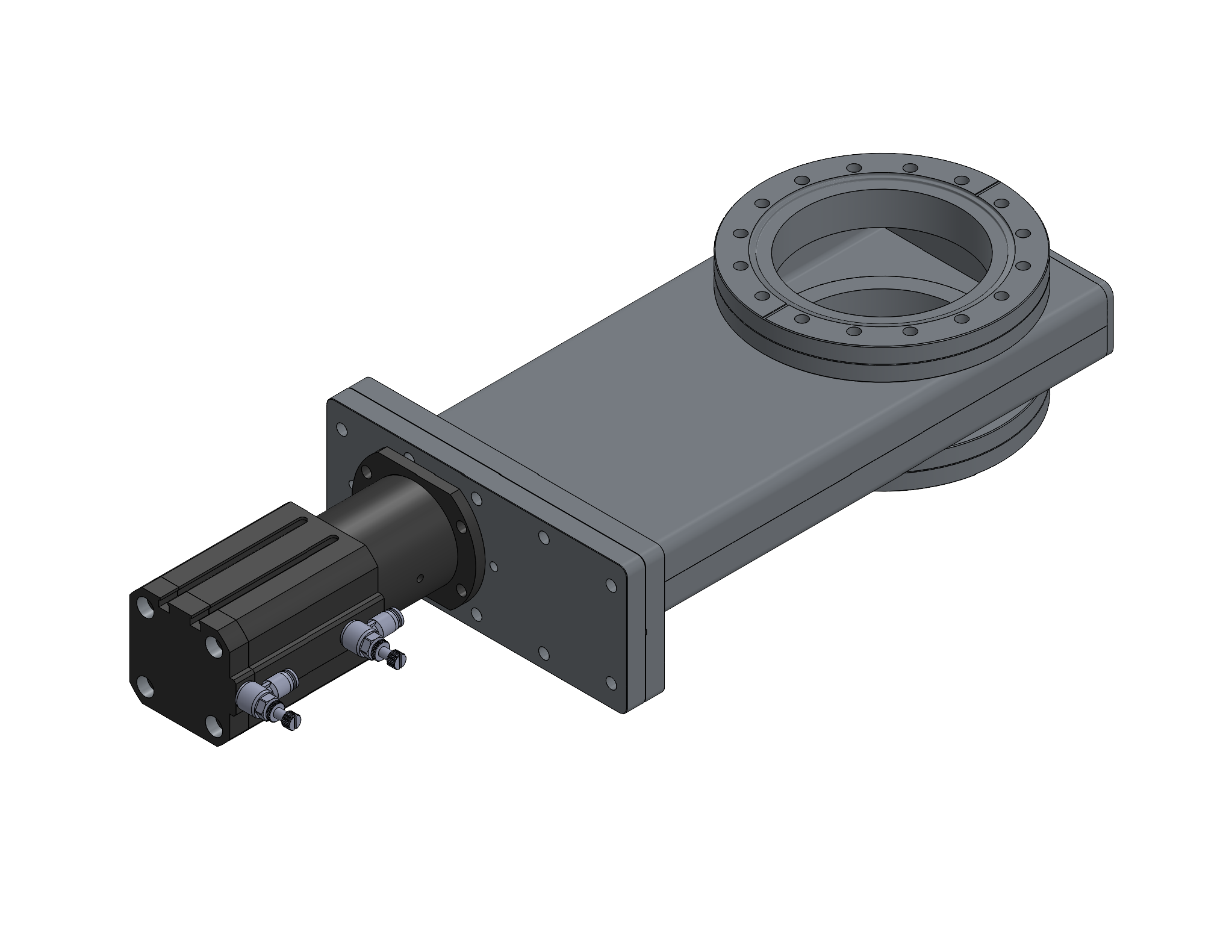

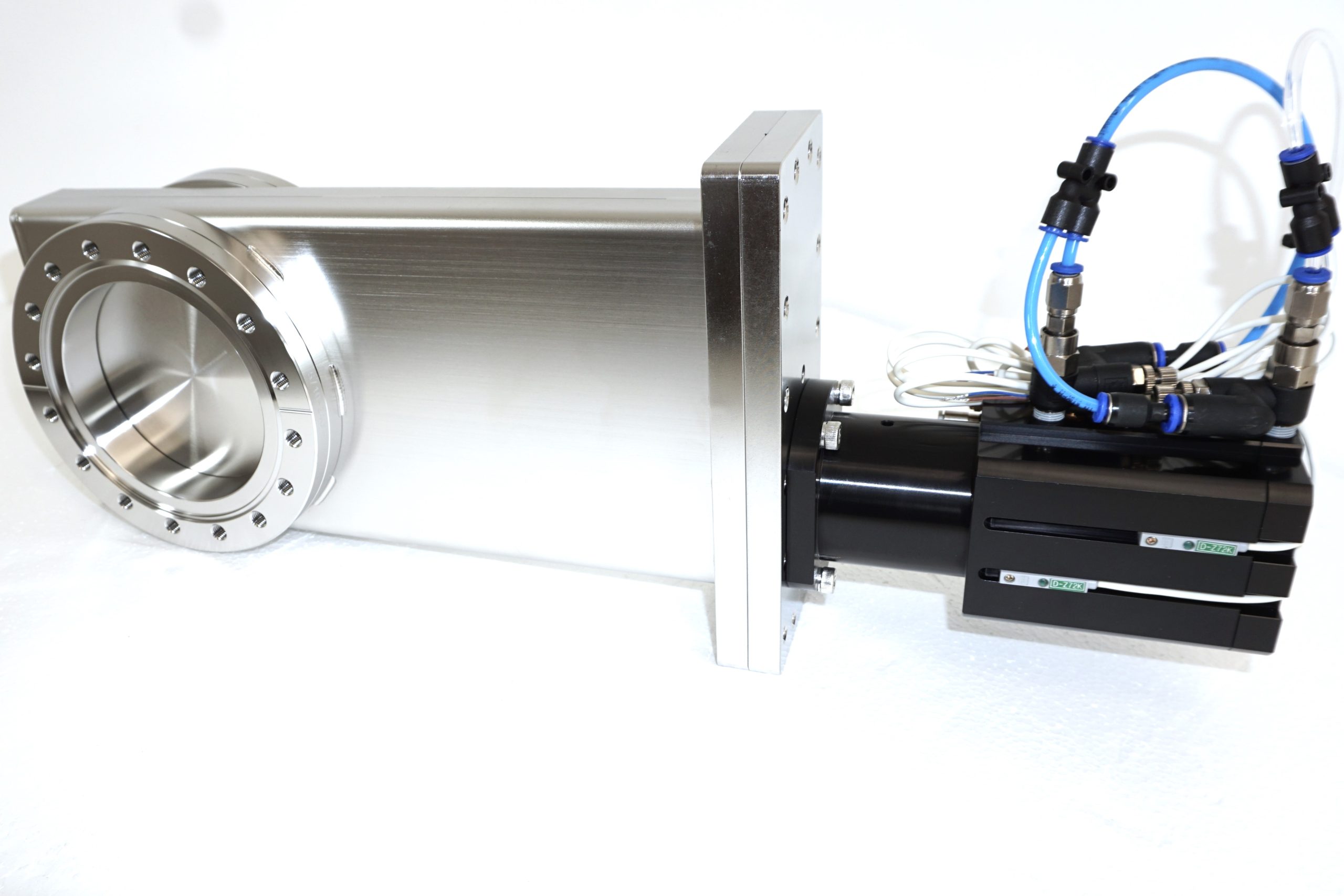

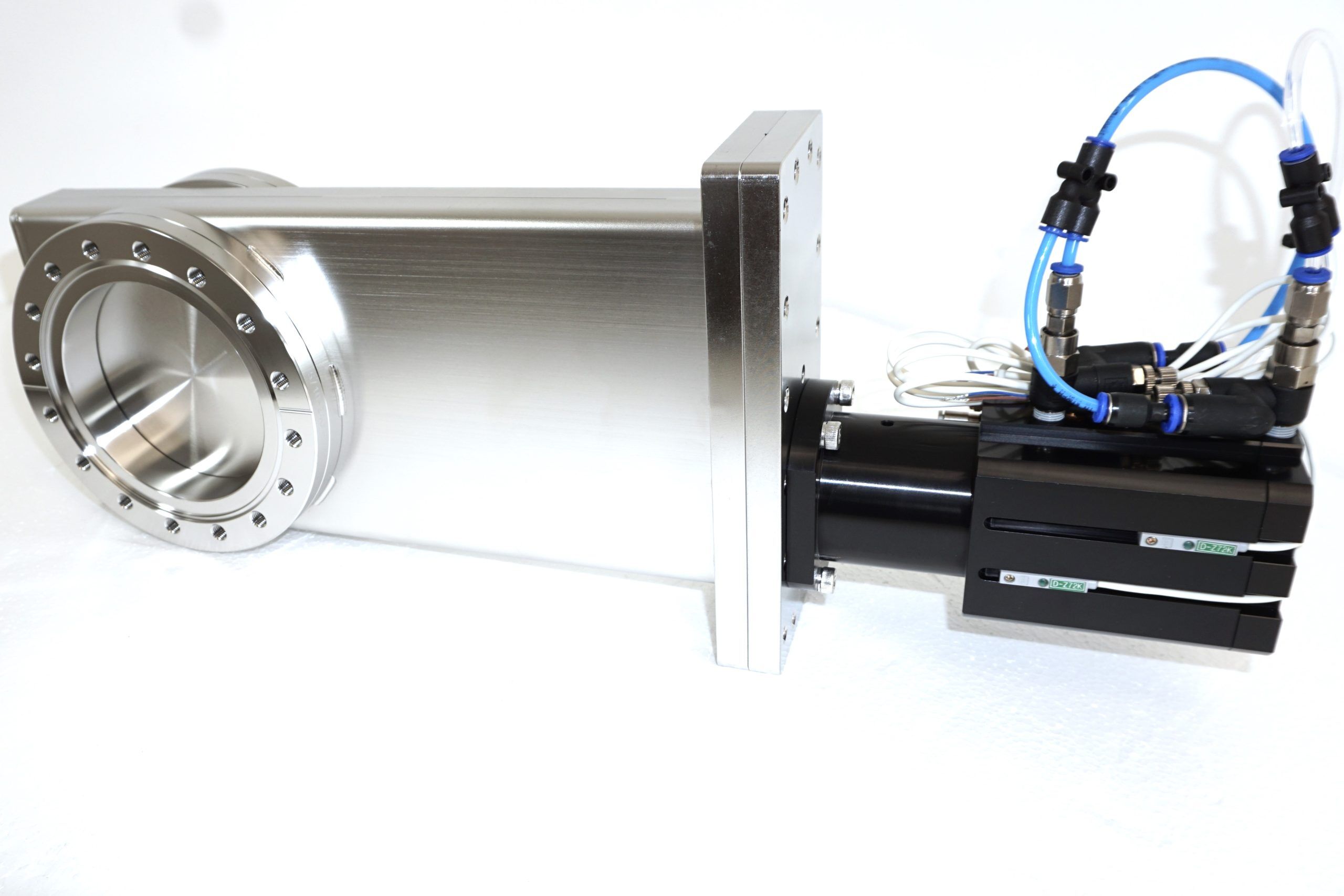

TLG4000, Pneumatic Gate Valve, Metal Seal Bonnet

Semiconductor Grade Gate Valve, Stainless Steel construction:

Features & Benefits:

– Enhanced cycle life of 250,000 times before the 1st service

– Easy maintenance with repair parts kit available

– Applications for the Semiconductor, Solar, OLED industries etc.

– Customization available such as Lock Function, Speed Controller



Weight 45 lbs
Dimensions 18 × 3 × 7 in



Pneumatic, CF Flange Dimension in mm
Size (ID) A B C D
1.5″ 52.4 257 69.5 58
2″ 72.5 334.5 99.5 68
2.5″ 67.5 334.5 99.5 68
3″ 64 489.5 140 68
4″ 80 489.5 148 64
6″ 86 596.5 190 77
8″ 86 743 239 94
10″ 104 903 294 124
12″ 105.6 1066 368 140
14″ 115.6 1208 426 159
