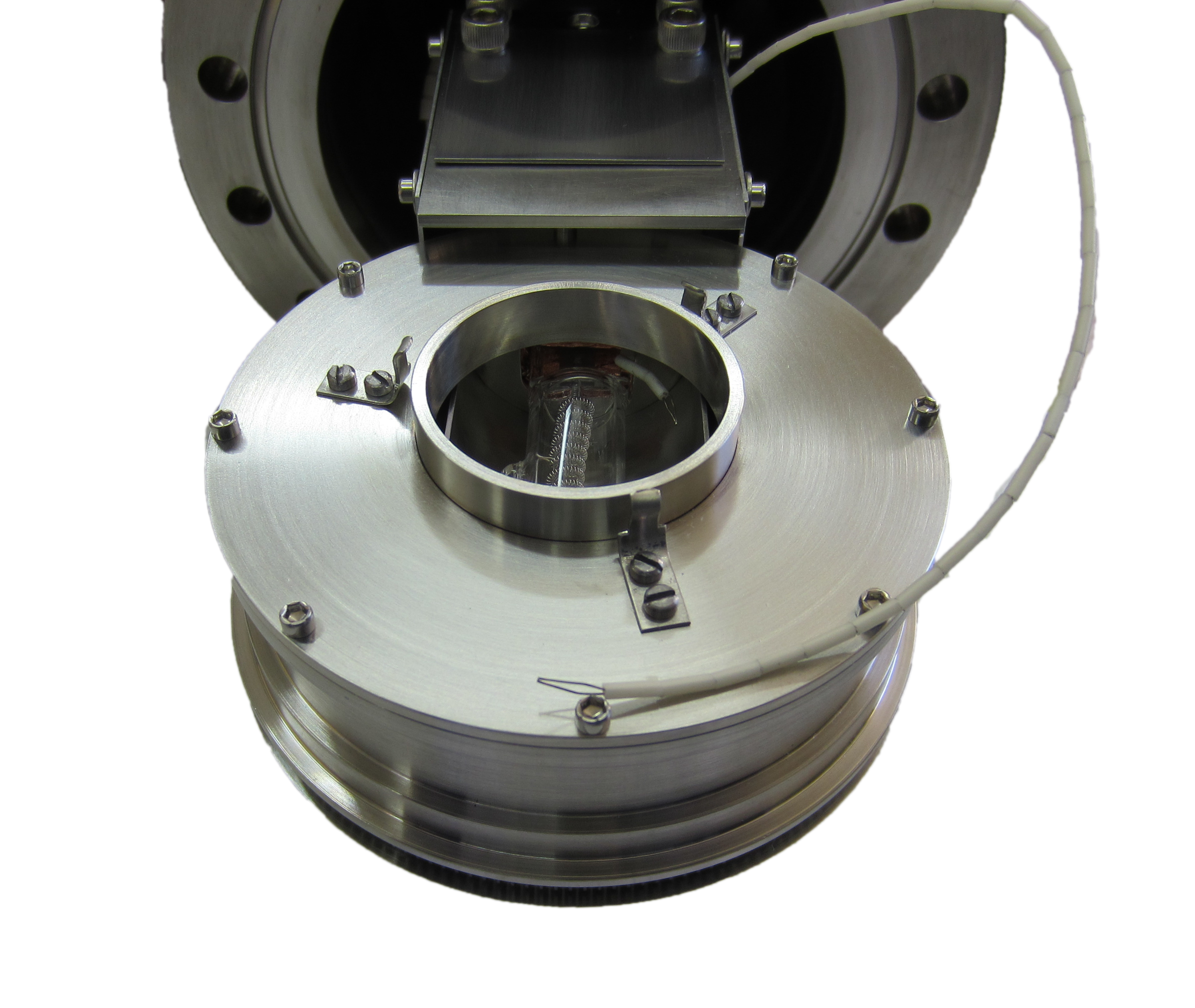

STLCD (Dock/Receiver)

The patented STLC sample transfer system provides researchers and experimenters with versatility not found in other sample handling systems. Samples can be transferred in-vacuum from chamber to chamber, across the laboratory, between facilities, and even around the world!

Add to quote
Contact Sales

STLD – Dock

STLCD-1.45
STLCD-1.74
STLCD-2.12
STLCD-2.31
STLCD-2.82
STLCD-3.65
STLCD-4.69

Material   Copper, Haynes, Inconel, Moly, SS
 Mount-Options   Handle, 0.25, 0.375, 0.50
Orientation   Axial, Radial
Platen-O-D   1.3

Features

  • Available from 1.30″ to 6″ O. D. sample platens
  • Easy, forgiving transfer operation
  • Fast, thermal response and greater extremes
  • Larger samples may be introduced through smaller
  • I. D. plumbing
  • Wide range of sample sizes
  • Excellent sample plane repeatability
  • Adapts to most goniometers and precision gearboxes
  • Excellent performance for direct cooling

/LR High Thermal Performance Platen

  • Rapid heating (18° per second) and cooling to -172° C
