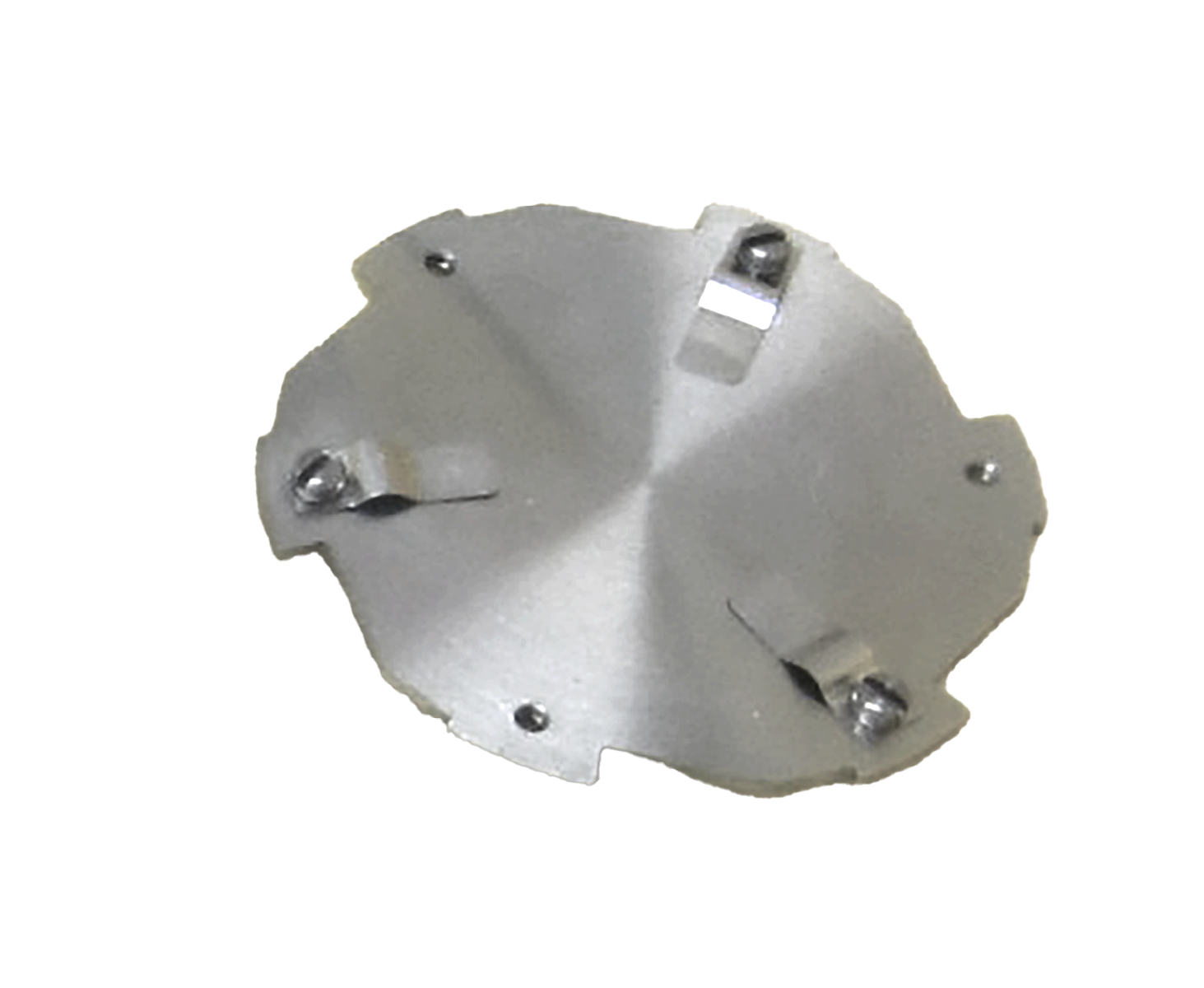

STLCP (Sample Platens)

The patented STLC sample transfer system provides researchers and experimenters with versatility not found in other sample handling systems. Samples can be transferred in-vacuum from chamber to chamber, across the laboratory, between facilities, and even around the world!

Add to quote
Contact Sales

STLCP – (Sample Platens)

STLCP-1.30
STLCP-1.45
STLCP-1.74
STLCP-2.12
STLCP-2.31
STLCP-2.82
STLCP-3.65
STLCP-4.69

Material   Copper, Haynes, Inconel, Moly, SS
Options   LR, No LR
Platen-O-D  1.3
Sample-O  .6, .8, 1

Features

  • Available from 1.30″ to 6″ O. D. sample platens
  • Easy, forgiving transfer operation
  • Fast, thermal response and greater extremes
  • Larger samples may be introduced through smaller
  • I. D. plumbing
  • Wide range of sample sizes
  • Excellent sample plane repeatability
  • Adapts to most goniometers and precision gearboxes
  • Excellent performance for direct cooling

/LR High Thermal Performance Platen

  • Rapid heating (18° per second) and cooling to -172° C

Additional information

Material

Copper, Haynes, Inconel, Moly, SS
Platen-O-D

1.3, 1.74, Additional Sizes Available
Additional Options

/LR High Thermal Performance Platen, /HRD Intrinsic Resistive Heater – Transferable, Flat Plate, Backside Counterbore, Bore/Counterbore with Insert
