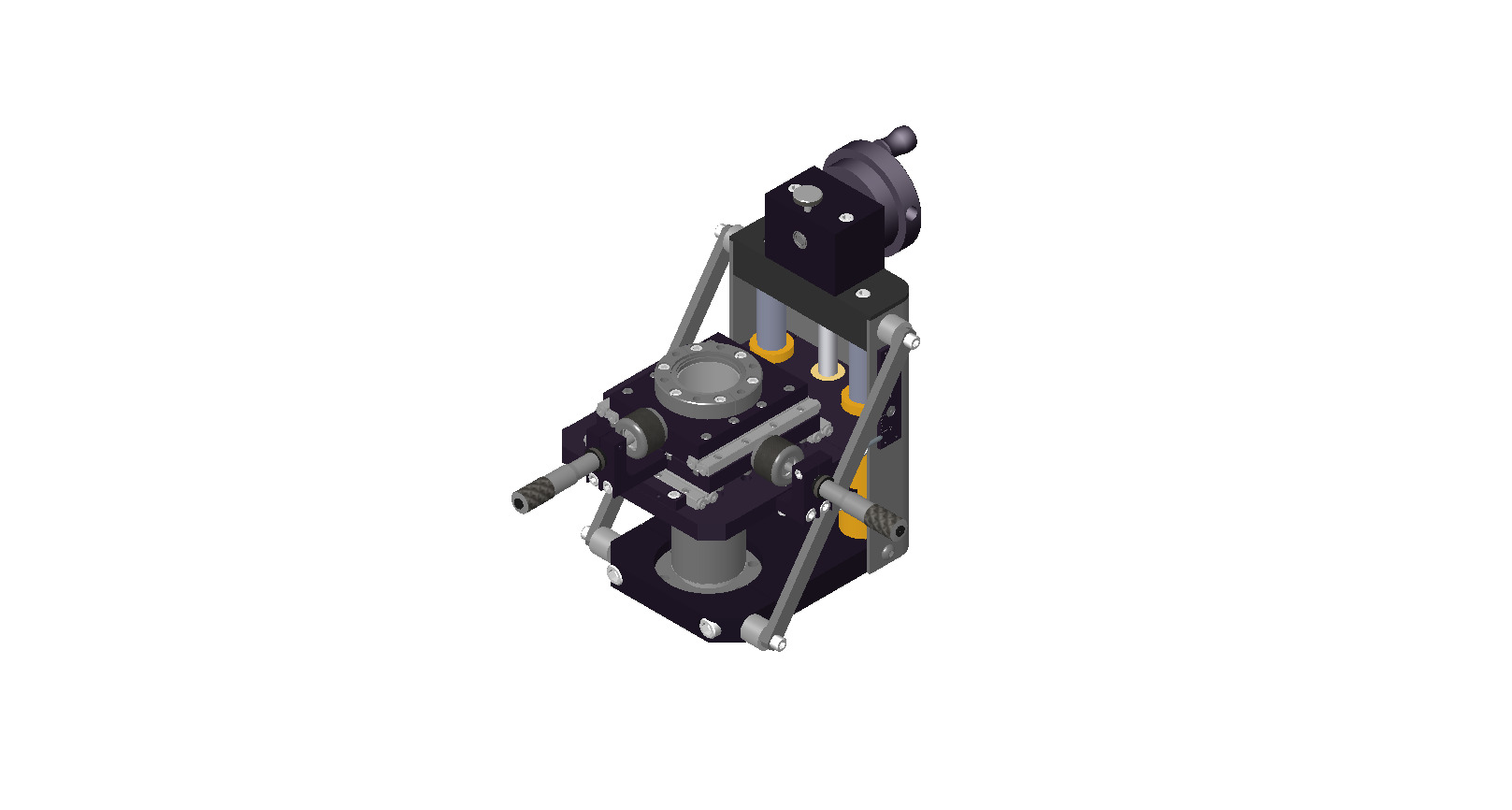

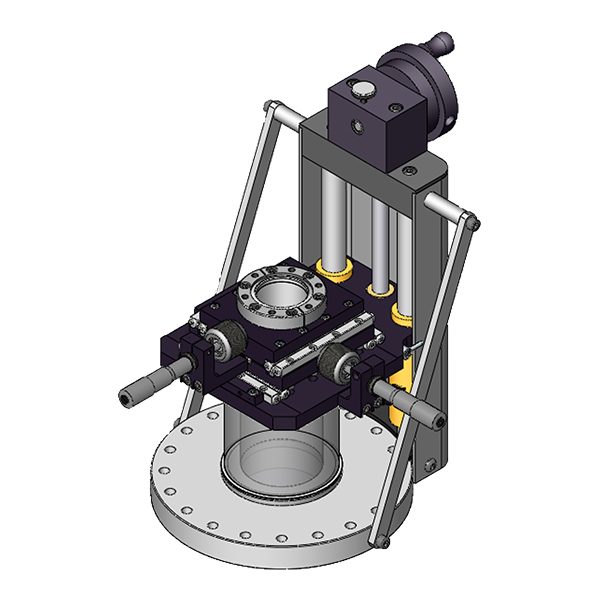

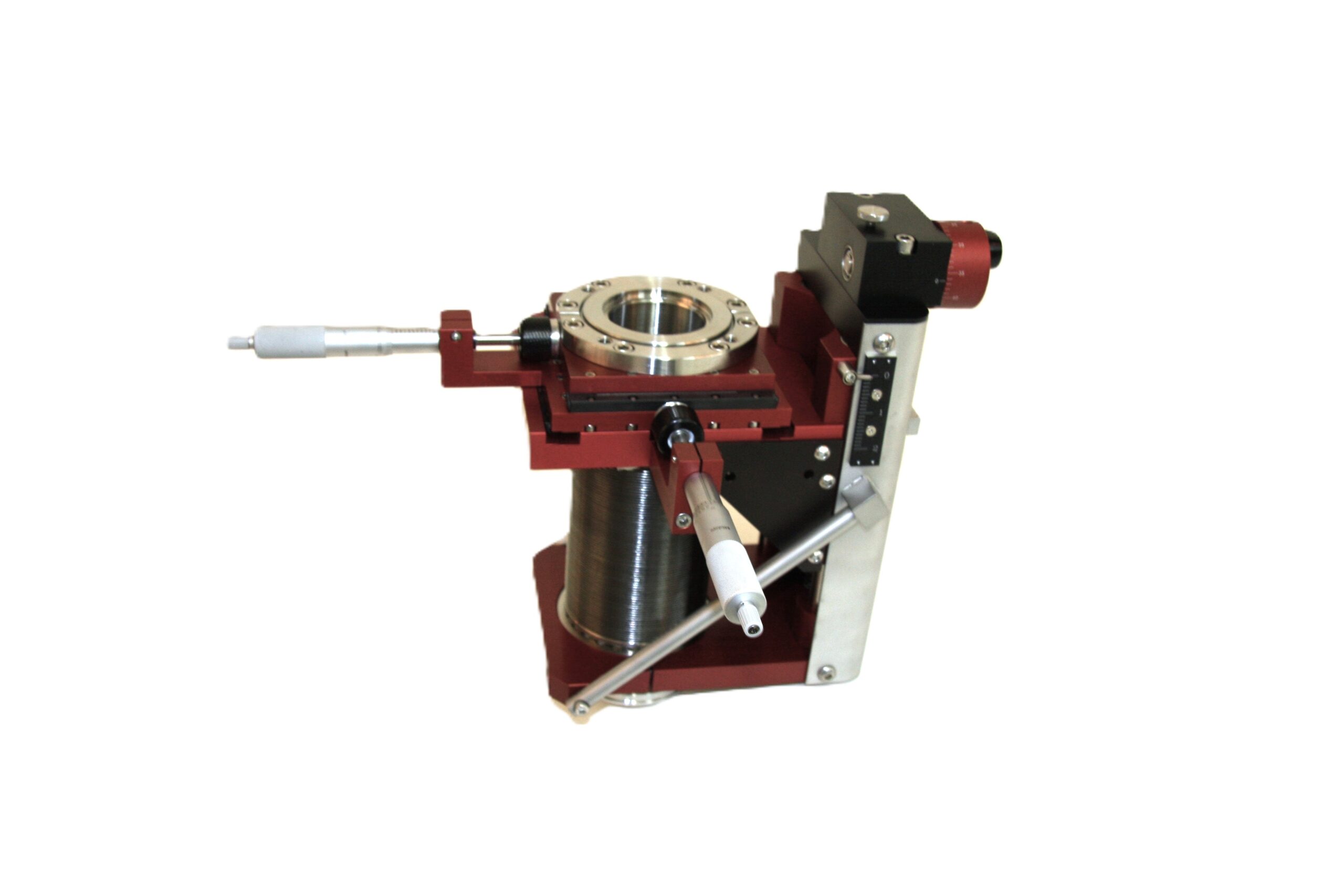

EMC SERIES

EMC series XYZ manipulators accommodate 1.39″, 1.87″, and 2.53″ I.D. bellows, up-to 36″ stroke and up to 25 pounds of payload capacity.

1 in stock

Add to quote
Contact Sales

Downloads

Manipulator Request Worksheet

Manipulator Specification Worksheet Custom Download Icon

PDF

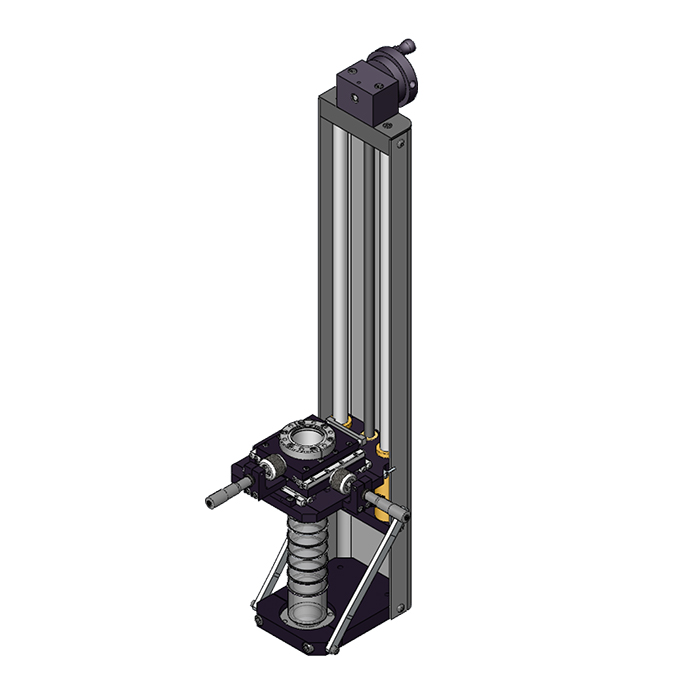

EMC-1.39-B275C-T275T-18 HMP Medium Bore 0.5 Manipulators Motion Sample Handling Custom Download Icon

STEP-FILES

EMC-B275C-T275T-1.39-2 AP214 Medium Bore 0.5 Manipulators Motion Sample Handling Custom Download Icon

EMC Series

EMC series XYZ manipulators accommodate 1.39″, 1.87″, and 2.53″ I.D. bellows, up-to 36″ stroke and up to 25 pounds of payload capacity.

Features

  • Bakeable to 200°C fully assembled; no castings used in construction
  • Hardened steel X and Y cross-roller guides
  • Dual 0.75″ O.D. precision-ground stainless steel Z guide rods
  • Aluminum stage construction
  • Stainless steel only material exposed to vacuum
  • All position operation

X & Y Axes

  • ±0.5″ X and Y travel, circular pattern, preloaded micrometer-to-stage coupling, 0.001″ micrometer divisions
  • Micrometers bakeable to 200°C

Z Axis

  • 2″ -36″ acme Z travel, 0.100″/turn knob adjust

Specifications

Base Flange O.D.

Bellows



I. D.

Travel



Flange

Z Travel

Model No. (2″ Z example)
2.75″ 1.39″ 2.75″ 2 EMC-B275C-T275T-1.39-2
2.75″ 1.39″ 2.75″ 4 EMC-B275C-T275T-1.39-4
2.75″ 1.39″ 2.75″  6-36″ EMC-B275C-T275T-1.39-6
4.5″ 1.87″ 2.75″ 2 EMC-B450C-T275T-1.87-2
4.5″ 1.87″ 2.75″ 4 EMC-B450C-T275T-1.87-4
4.5″ 1.87″ 2.75″  6-36″ EMC-B450C-T275T-1.87-6
6″ 2.53″ 2.75″ 2 EMC-B600C-T275T-2.5-2
6″ 2.53″ 2.75″ 4 EMC-B600C-T275T-2.5-4
6″ 2.53″ 2.75″  6″-36″ EMC-B600C-T275T-2.5-6

Precision

Axis

Micrometer
Graduation

Resolution

Repeatability

Backlash

Adjustment
X-Y 0.001″ <0.001″ <0.00015″ <0.00015″ Standard
Micrometer
Z 0.0005″ <0.0005″ 0.0005″ 0.0007″ Knob Adjust
X-Y 0.0001″ <0.0001″ <0.00015″ <0.00015″ Optional
Large Micrometer

Configuration   EMC-B275C-T275T-1.39, EMC-B275C-T275TM-1.39, EMC-B275T-T275T-1.39, EMC-B275TM-T275TM-1.39
Stroke   2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24
Drive   Manual Top, Manual Bottom, MS-LS Top, MS-LS Bottom
Options   HMP, None

Optional 6″ Base Flange

Model No: B600C

  • Change base flange to 6.0″ O.D.

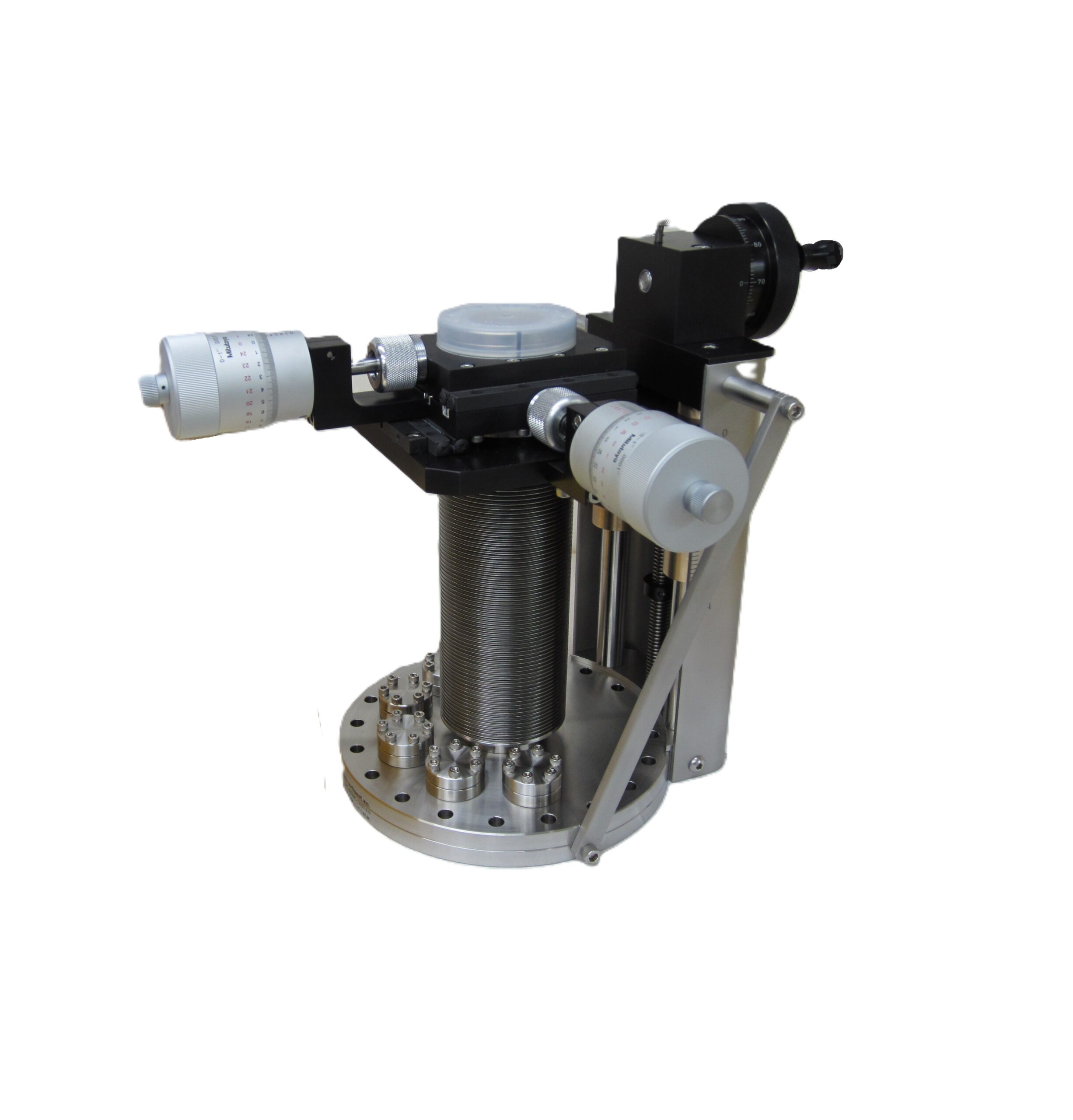

6″ Base Flange with 5 Mini-Ports –

Model No: B600MC

  • Change base flange to 6.0″ O.D. with 5 mini-ports
  • This option may only be ordered with the 1.39″ I.D. bellows

Large Barrel X & Y Micrometers, ±0.5″ Travel –

Model No: /LM

  • Large micrometers with 0.0001″ divisions

Motorization

  • Stepping or Synchronous Motor Drive options available
