| Mounting-Flange | 275 |
|---|---|
| Probe-Length | CL, Standard 9.00 |
| Drive | Manual, FA-W, MS-W |
| Additional Options | /TF-275, RLS, RLSC |

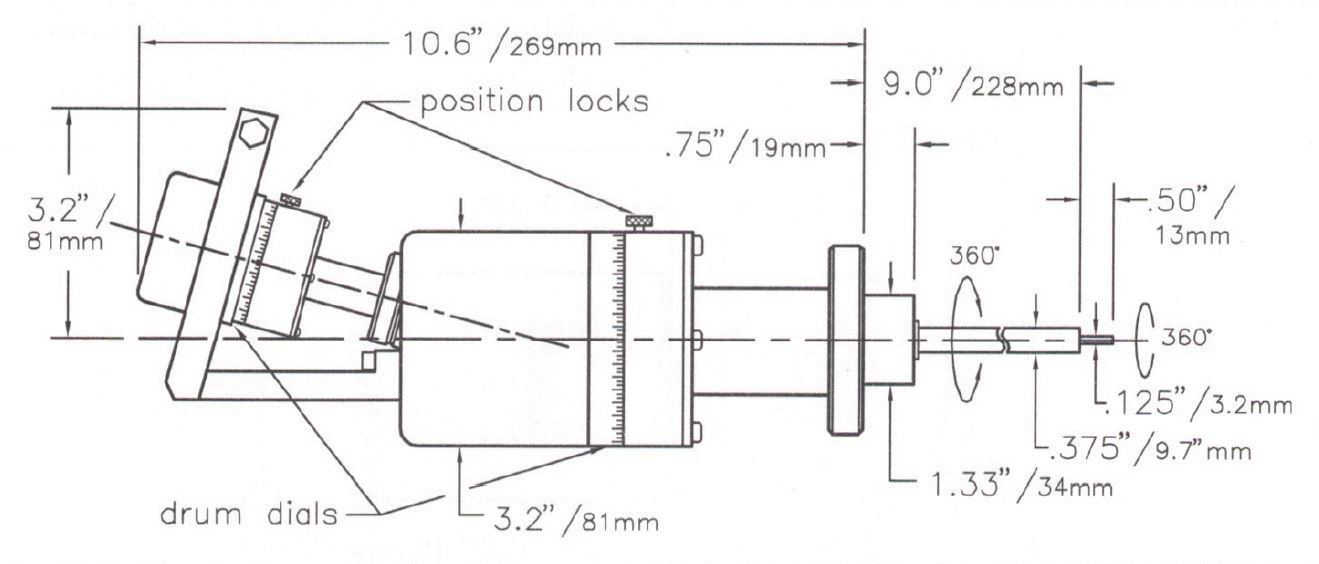

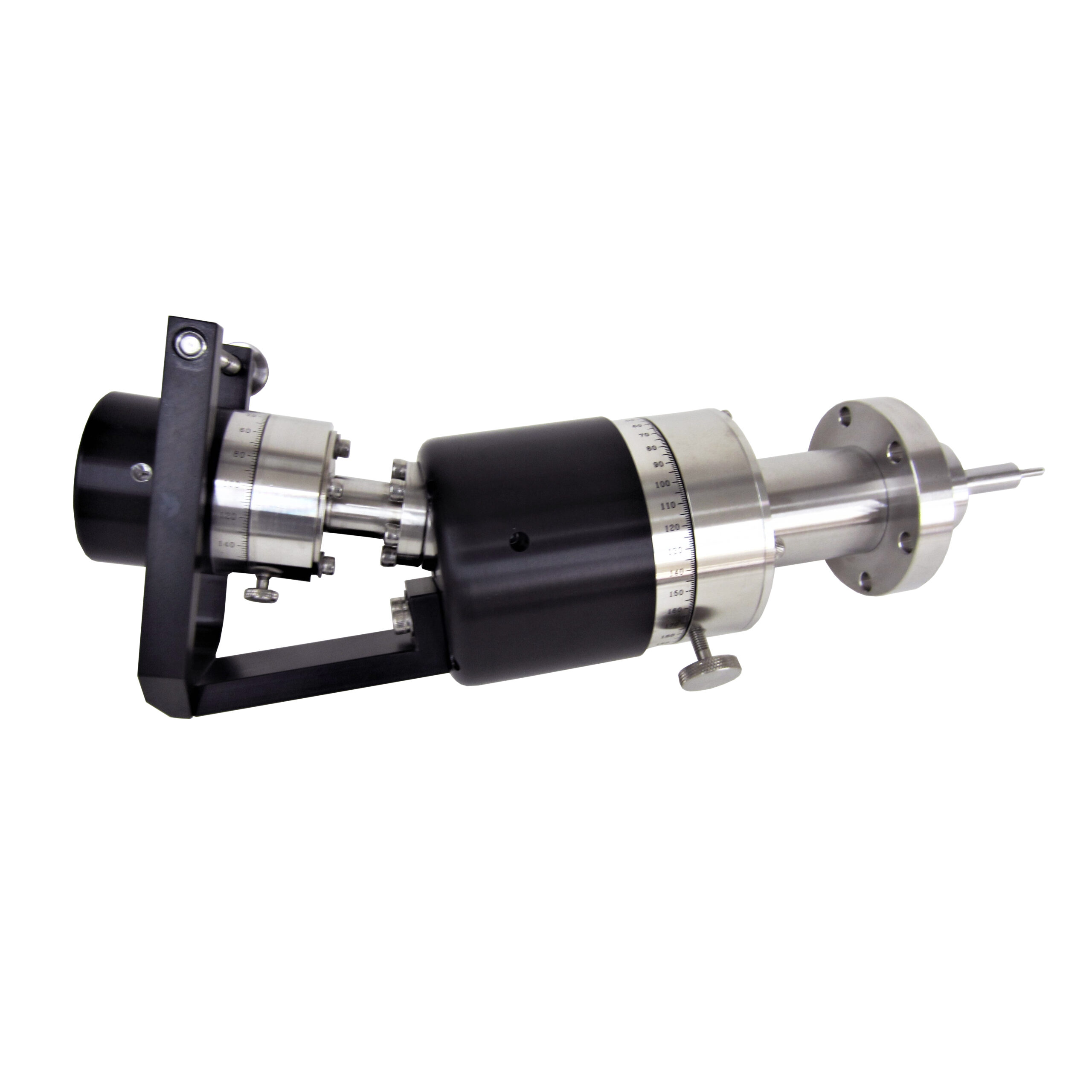

FRRC-275 Dual Precision
Rotary Feedthrough
- With coaxial rotary-rotary shafts
- 3/8” O.D. outer shaft
- 1/8” O.D. inner rotary coax
- 360° continuous rotation, both shafts, independent
- 0.1° resolution, 1° graduations
- Lockable as dependent or independent rotation
- Maximum bakeout temperature: 200°C
- Combines two FPRMs
Options
/CL Custom Length Shaft Option
- Up to 24”, tip-to-flange face
/FA Fine Adjust Option
- Utilizes a precision Klinger stage for rotary actuation
- Resolution of 0.1°
- One minute Vemier reading
/MS Stepping or /MY Synchronous
Motor Drive
Retrofit Shaft Extensions
