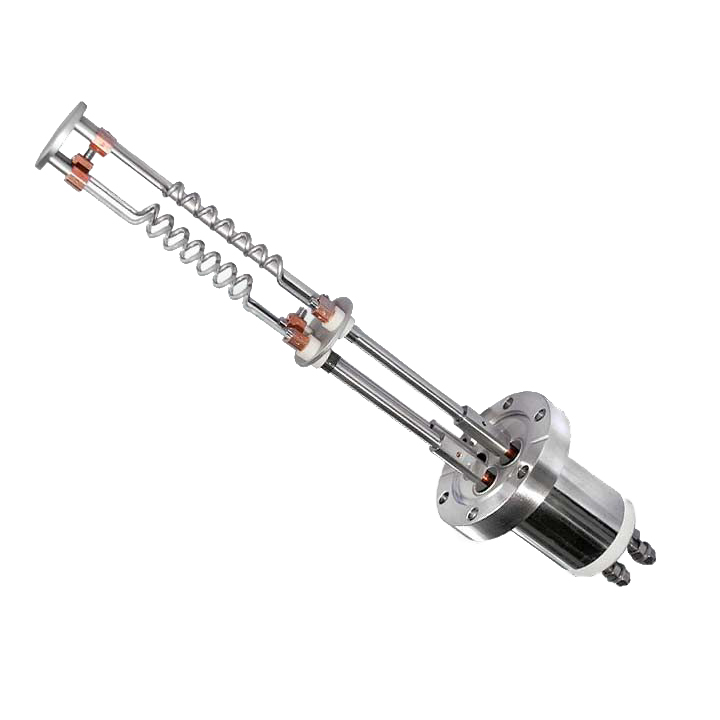

Titanium Sublimation Pumps
Titanium Sublimation Pumps (TSPs) are used to pump chemically reactive, getterable gases. Titanium is effective, easily sublimed, and inexpensive.
TSPs have high pumping speeds. At pressures below 10-6 Torr, pumping speed is dependent upon available surface area for condensation. Pumping speed is increased by cooling the substrate surfaces with water or liquid nitrogen. The filaments of the titanium sublimation pump are 85% titanium and 15% molybdenum, a combination which prevents premature filament “burnout.”
Ordering Information:
Model No. |
Mounting Flange |
SB-1000 |
3.38″ mounting flange |
SB-1020 |
2.75″ mounting flange |
Options:
SB-1002B |
Bakeable adapter with Amphenol female MS connector and bakeable cable |
SB-1001 |
12 spiral filaments Material: 85% Ti, 15% Mo Length: 8-5/8″ before coiling; 4-5/8″ coiled Weight: 3.6 grams/filament Usable Ti: 1.5 grams/filament (package includes 12 filaments) |
PS-500 Sublimator Power Supply
Specify if used with sublimator with 2.75″ or 3.38″ flange. Example: PS-500/275 or PS-500/338.
Specifications for PS-500
| Physical | Electrical Input1 | Electrical Output2 | Timer Range | Display |
|---|---|---|---|---|
| Rack Size—19″ Chassis Dimensions— 8-3/4″ x 17″ x 12″ Ship weight—50 lbs AC cord—15 feet with plug |
Voltage— 115 VAC Frequency— 60 Hz |
Voltage—12 VAC Max. current—50 A Selector switch for 4 filaments |
OFF-time— 2 to 120 min ON-time— 4 to 120 sec |
Analog meter, current 75 A |
| 1 230/208 VAC and/or 50 Hz available as special order. Please specify on order. 2 With SB-1001 spiral filaments. |
||||
Liquid Nitrogen Shroud for Use with TSP
High speed LN2 cooled cryoshroud. Full flood design keeps all surfaces at LN2 temperature. Readily removable for maintenance purposes. All stainless steel construction.
Model SS400/275with 8″ O.D. main flange and |
Model SS400/338with 8″ O.D. main flange and |
